Removal of Reactor / Partition Plate Si00-772
14 Removal Procedure
4. Removal of Reactor / Partition Plate
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the reactor. Preparation

Remove the outer panels
according to the “Removal of
Outer Panels / Fan Motor”.

Remove the electrical box
according to the "Removal of
Electrical Box".
1

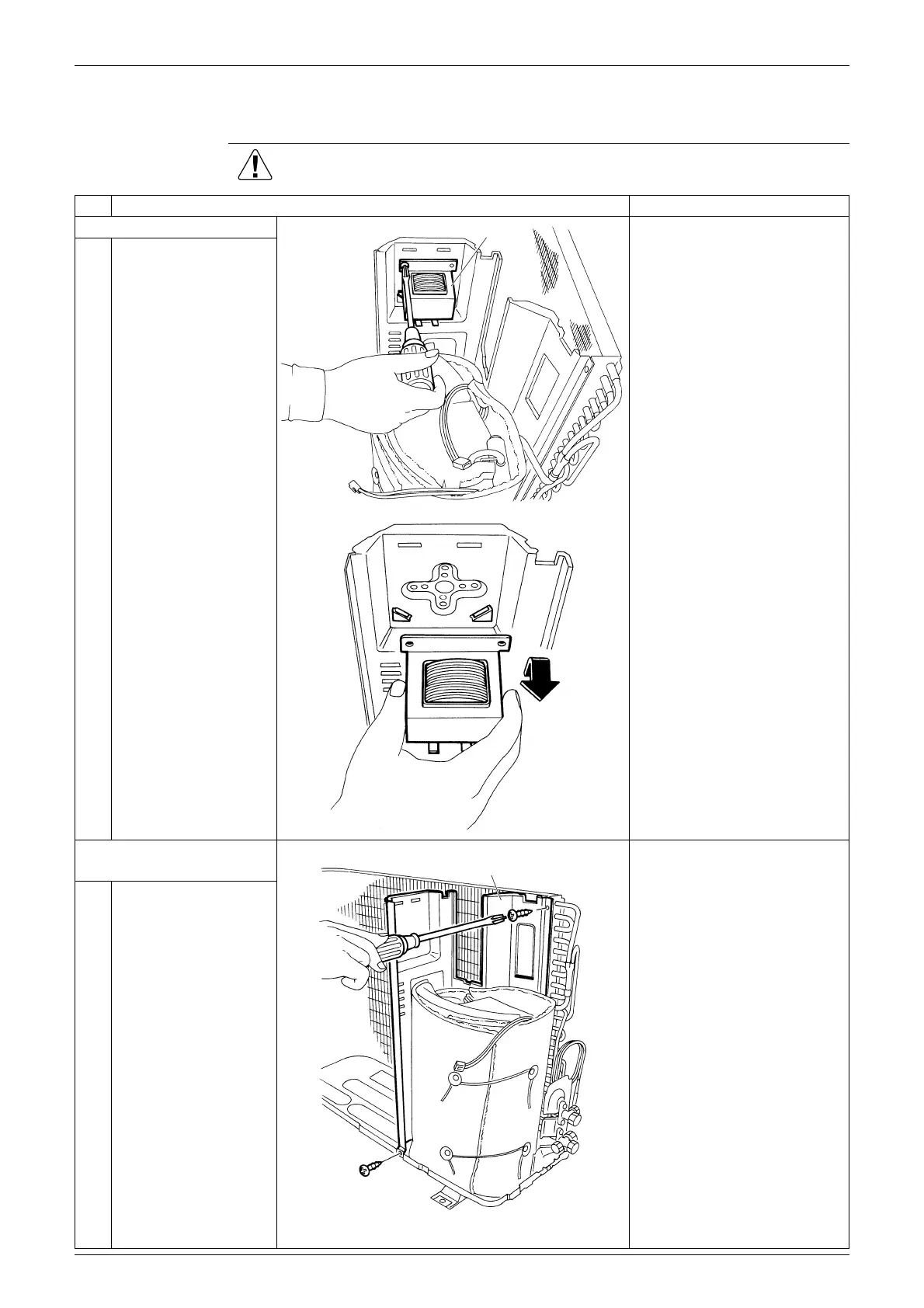

Remove the screw and
remove the reactor.
2. Remove the partition
plate.
1
Remove the 2 screws.
(R3266)
Reactor
(R3267)
Partition plate
(R3268)
