Si00-772 Removal of Reactor / Partition Plate
Removal Procedure 15
2

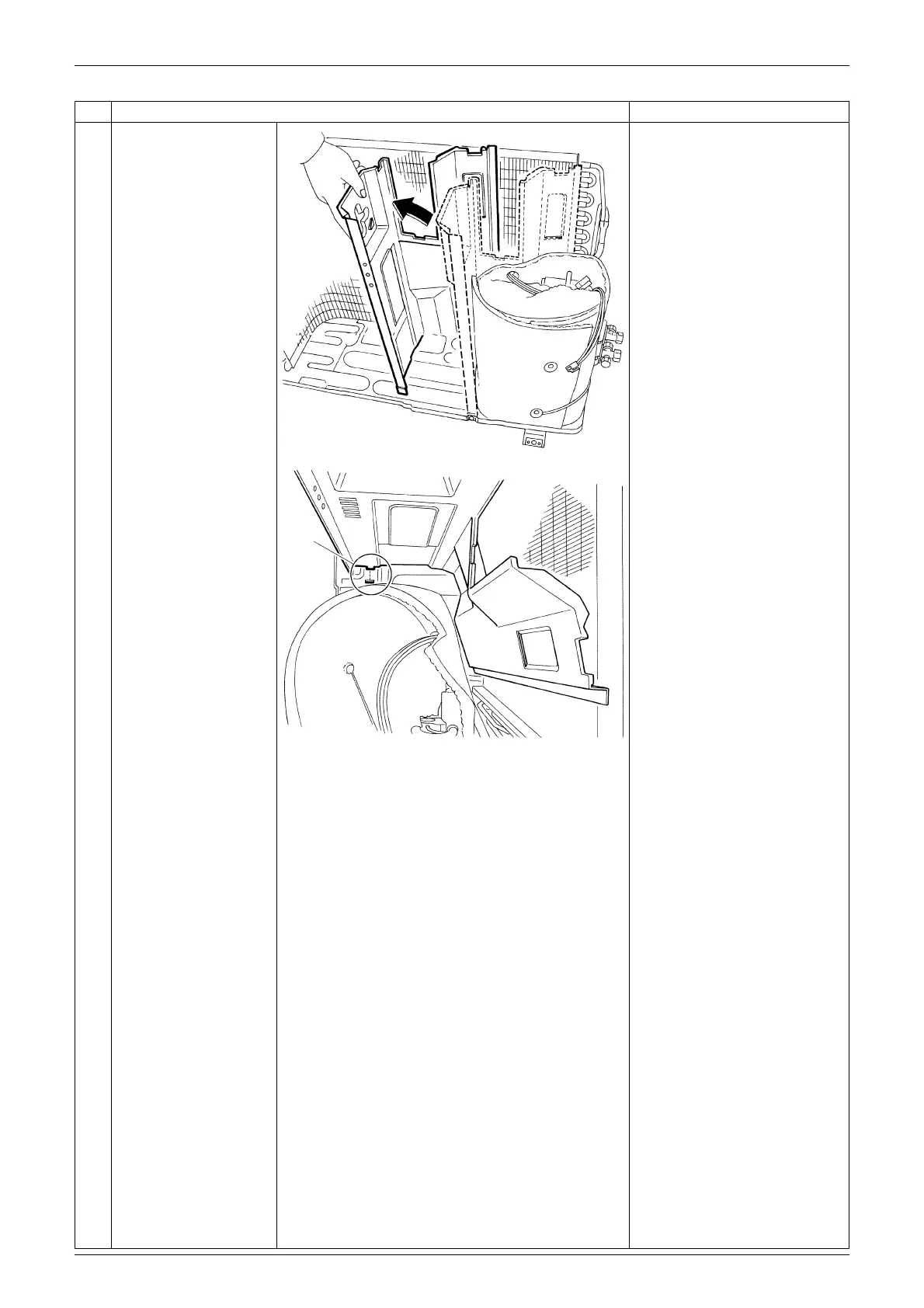

The partition plate has
a hook on the lower
side. Lift and pull the
partition plate to
remove.

When reassembling, fit the
lower hook into the bottom
frame.
Step
Procedure Points
(R3269)
(R3270)
Hook
