Daikin RX35E2V1B - Page 15

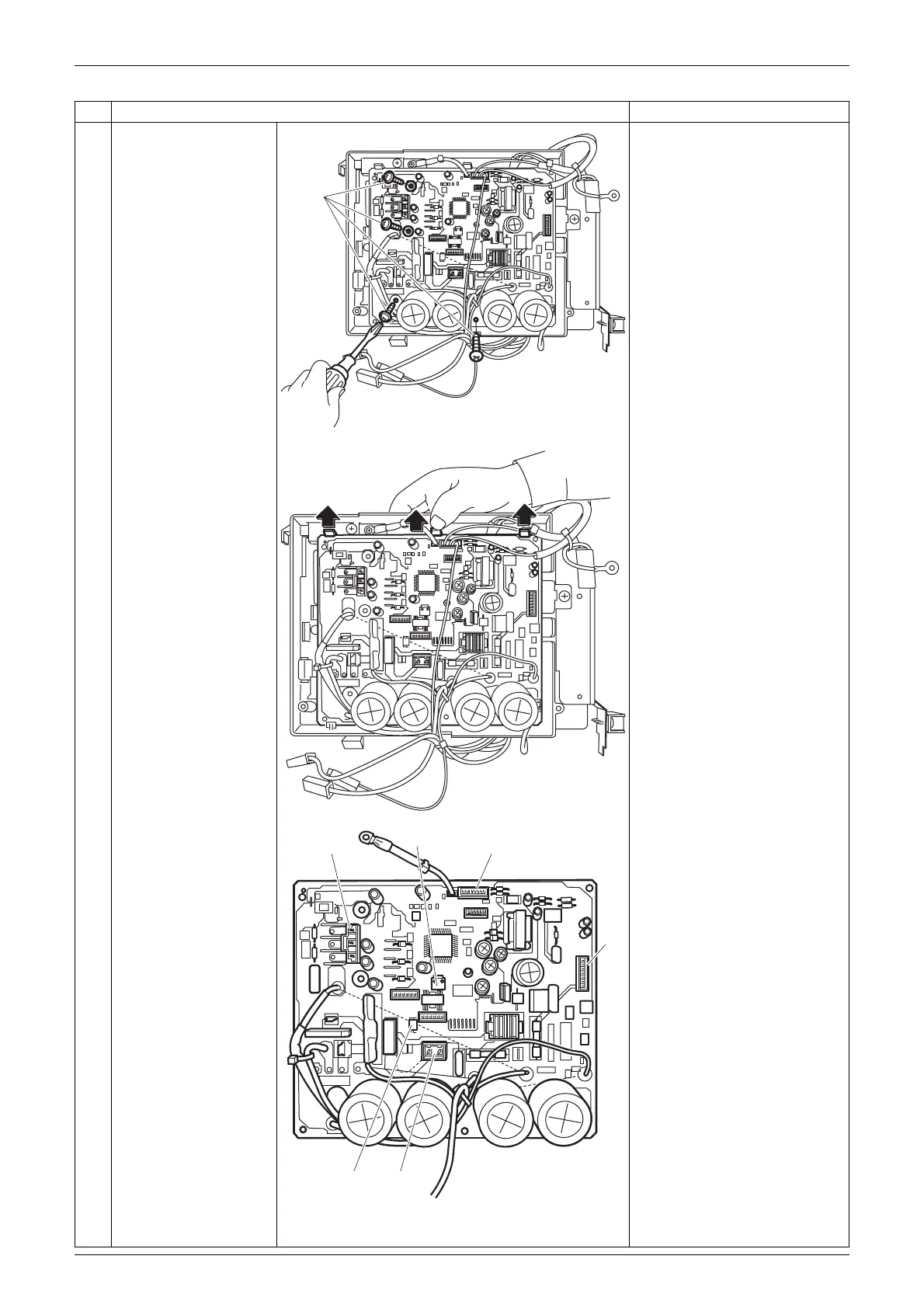

Si00-772 Removal of PCB
Removal Procedure 13
4
Remove the 4 screws.
5
6
Unfasten the 3 hooks
on the upper side.
Lift and pull out the
control PCB.
[S20]: electronic expansion
valve coil
[S30]: compressor
[S40]: overload protector
[S70]: fan motor
[S80]: four way valve coil
[S90]: thermistors
Step
Procedure Points
(R7258)
Screw
(R7259)
(R19144)
[S80][S20]
[S90][S30]
[S40]
[S70]
