Daikin RX35E2V1B - Page 12

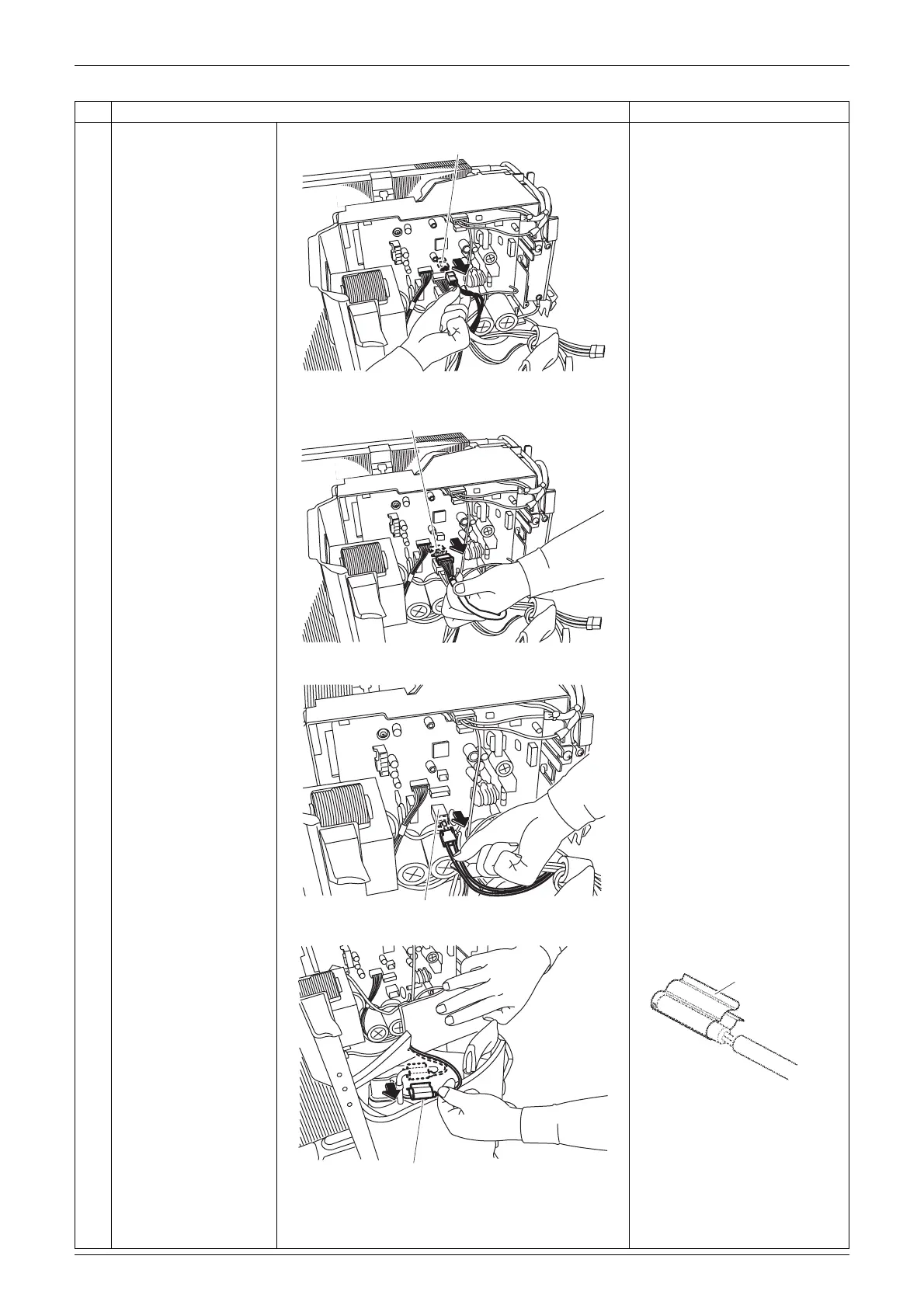

Removal of Electrical Box Si00-772
10 Removal Procedure
4
Disconnect the
connector for overload
protector [S40].
5
Disconnect the
connector for electronic
expansion valve coil
[S20].
6
Disconnect the
connector for four way
valve coil [S80].

The cooling only models do
not have the harness for
[S80].
7
Release the discharge
pipe thermistor.

Be careful not to lose the clip
for the thermistor.
Step
Procedure Points
(R7217)
[S40]
(R7218)
[S20]
(R7219)
[S80]
(R0267)
Discharge pipe thermistor
(R12279)
Clip
