1-2

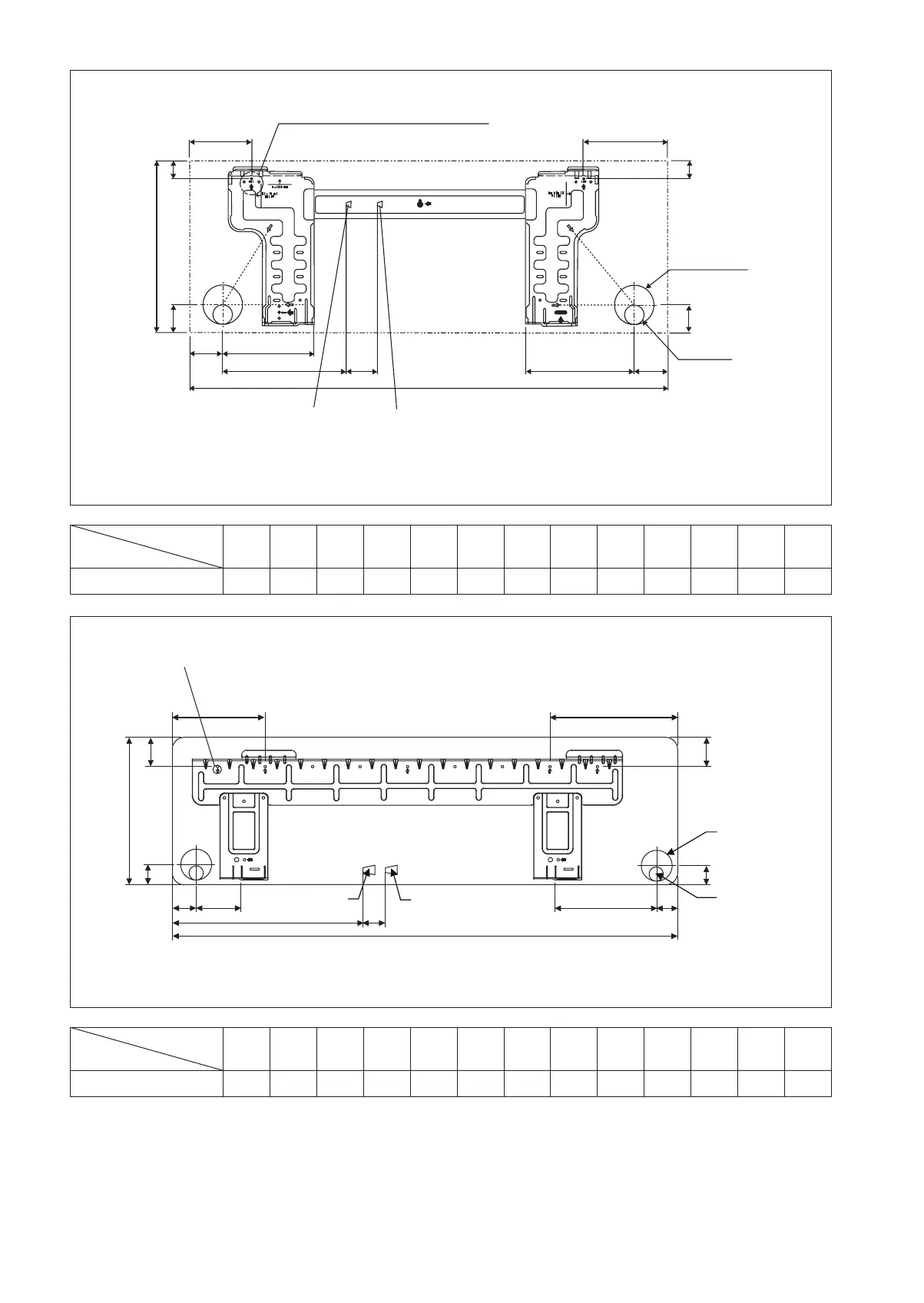

Dimension
Model
ABCDEFGH I JKLM
25/35
800 288 212 104 141 30 46 55 56 153 181 207 52
All dimensions are in mm
Dimension
Model
ABCDEFGH I JKLM
50/60
1065 310 229 190 173 61 40 45 48 91 219 580 45
D
B
G
H
J
L
M
A
K
F
I
G
F
E
Through the wall
hole Ø 65mm
Drain hose position
Liquid pipe end Gas pipe end
INSTALLATION PLATE 50/60
« Recommended mounting plate retention spots
(7 spots in all)
All dimensions are in mm
« Recommended mounting plate retention spots
(5 spots in all)
Through the wall
hole Ø 65mm
Drain hose position
Gas pipe end
Liquid pipe end
E
F
G
IK
ML
JH
G
F
B
D
A
ALTERNATIVE INSTALLATION PLATE 25/35
