Daikin RYN-E3V1B - Dimensional Drawing & Centre of Gravity; Dimensional Drawing

3
1
5
• Split Sky Air • Outdoor Units
10
• Outdoor Units • R-410A • RYN-E3V1B

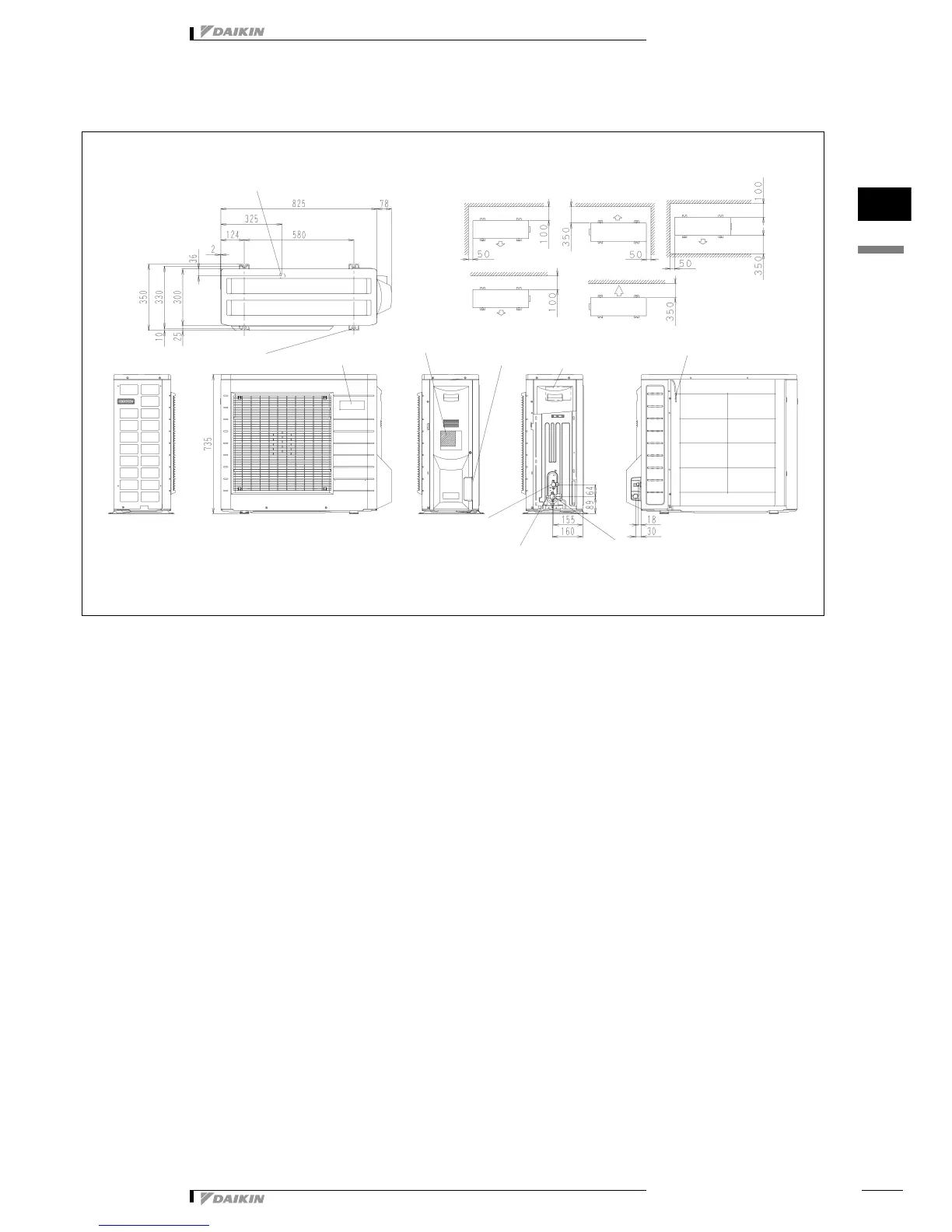

5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
3D051657D
RYN50-60 E
unit (mm)
Minimum space for air passage
Wall height on air outlet side =
less than 1200
Drain outlet
(I.D. J 15.9 hose for connection)
4 x holes for anchor bolts (M8 or
M10)
Name plate
Terminal strip with earth
terminal
Wiring inlet
Gas stop valve
(J 12.7 CuT)
Liquid stop valve
(J 6.4 CuT)
Service port
Outdoor air temperature
thermistor
Brand name label
In case of removing stop valve
cover
