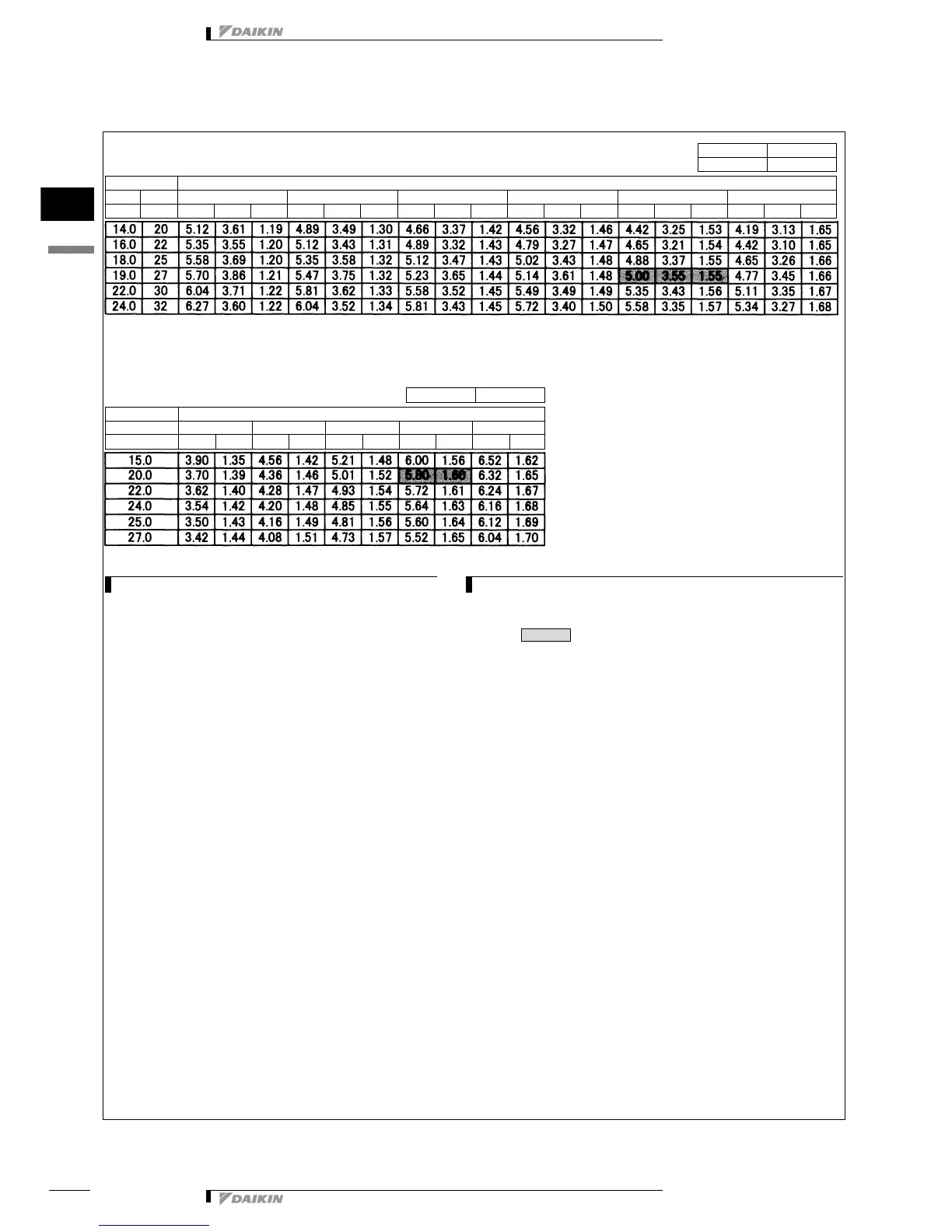

4 Capacity tables
4 - 1 Cooling/Heating capacity tables
FTYN50FV1B+RYN50E3V1B
Cooling 50Hz 220-240V
AFR 14.7
BF 0.28
Indoor
Outdoor temperature (°CDB)
EWB EDB 20 25 30 32 35 40
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
Heating 50Hz 220-240V
AFR 16.1
Indoor
Outdoor temperature (°CWB)
EDB -10 -5 0 6 10
(°C) TC PI TC PI TC PI TC PI TC PI
3D051923A
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°C)
EDB: Entering dry bulb temp. (°C)
TC: Total capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
NOTES
1 Ratings shown are net capacities which include a deduction for
indoor fan motor heat
2 shows nominal (rated) capacities and power input.
3 TC, PI and SHC must be calculated by interpolation using the figures
in the above tables. (Figures out of the tables should not be used for
calculation.)
4 About SHC which are not mentioned on the table, please calculate
them with around values in direct proportion.
5 Capacities are based on following conditions:
Corresponding refrigerant piping length: 7.5 m
Level difference: 0 m
6 Air flow rate (AFR) and Bypass factor (BF) are taburated above.
