Function of Indoor Unit (RA Models) SiBE121021_C
100 Function and Control

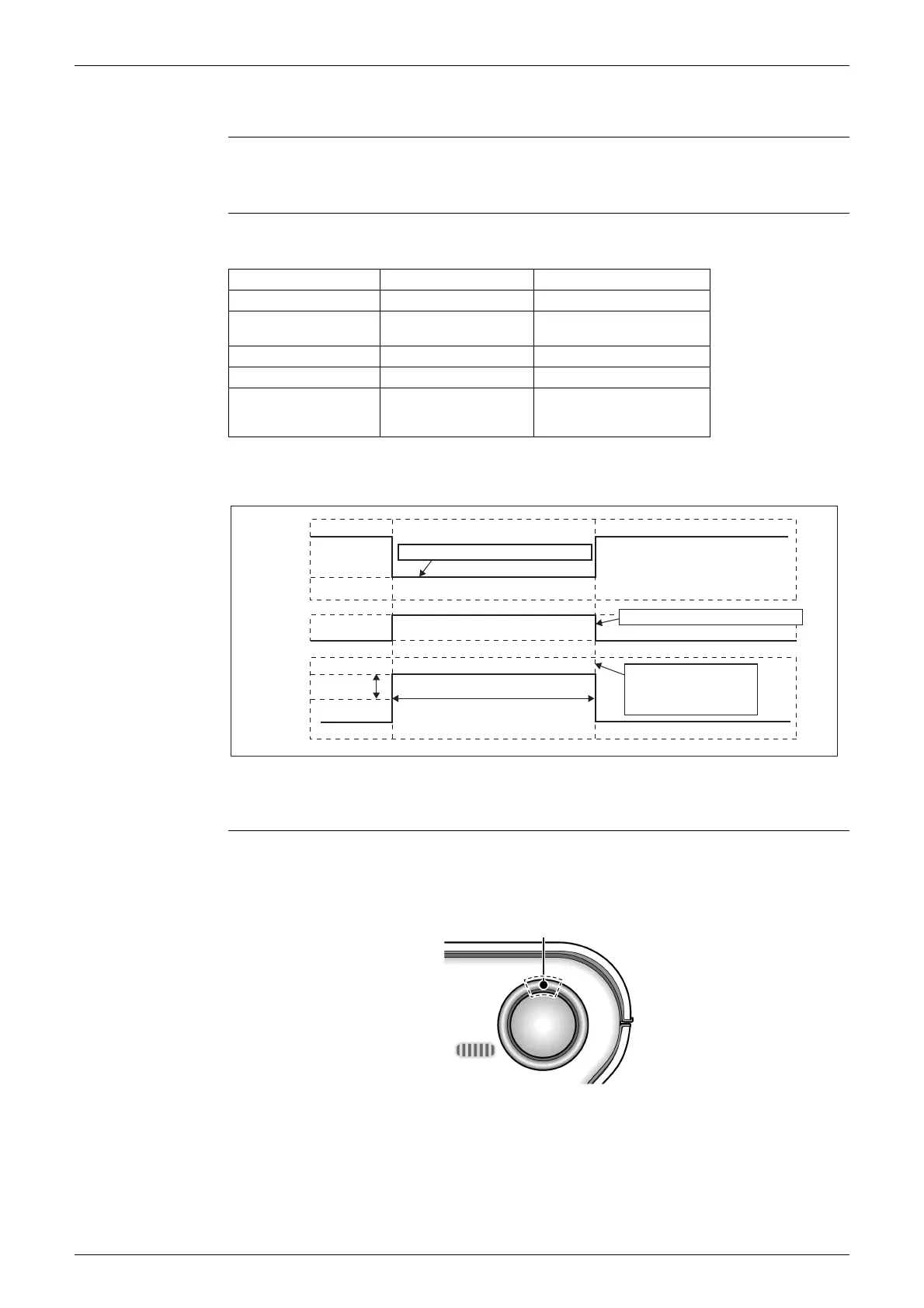

1.14 Inverter POWERFUL Operation
Outline In order to exploit the cooling and heating capacity to full extent, operate the air conditioner by
increasing the indoor fan rotating speed and the compressor frequency.
Detail When POWERFUL button is pressed, the fan speed and target temperature are converted to
the following states for 20 minutes.
A
= 40 ~ 90 rpm (depending on the model)
Ex.) : POWERFUL operation in cooling mode.
1.14.1 Multi-Colored Indicator Lamp / TIMER Lamp
Features Wall Mounted Type: FTXG and CTXG Series
Current operation mode is displayed in color of the lamp of the indoor unit. Operating status can
be monitored even in automatic operation in accordance with the mode of actual operation.
The lamp color changes according to the operation.
∗
AUTO ........................................................Red / Blue
∗
DRY ..........................................................Green
∗
COOL........................................................Blue
∗
HEAT ........................................................Red
∗
FAN...........................................................White
∗
TIMER.......................................................Orange
Operation mode Fan speed Target temperature
COOL H tap + A rpm 18°C
DRY Dry rotating speed +
A rpm
Lowered by 2 ~ 2.5°C
HEAT H tap + A rpm 30 ~ 32°C
FAN H tap + A rpm —
AUTO Same as cooling /
heating in POWERFUL
operation
The target temperature is
kept unchanged.
(R14061)
Target temp.
Fan
A rpm
18ËšC
POWERFUL ON
POWERFUL OFF
H tap
Set tap
It should be the lower limit of cooling temperature.
It counts 20 min. also in the remote controller.
20 minutes
Ending condition: "or" in 1 to 3
1. After the lapse of 20 minutes.
2. Operation OFF
3. POWERFUL operation is OFF.
(R11815)
Multi-colored indicator lamp /
TIMER lamp
To Next Page
