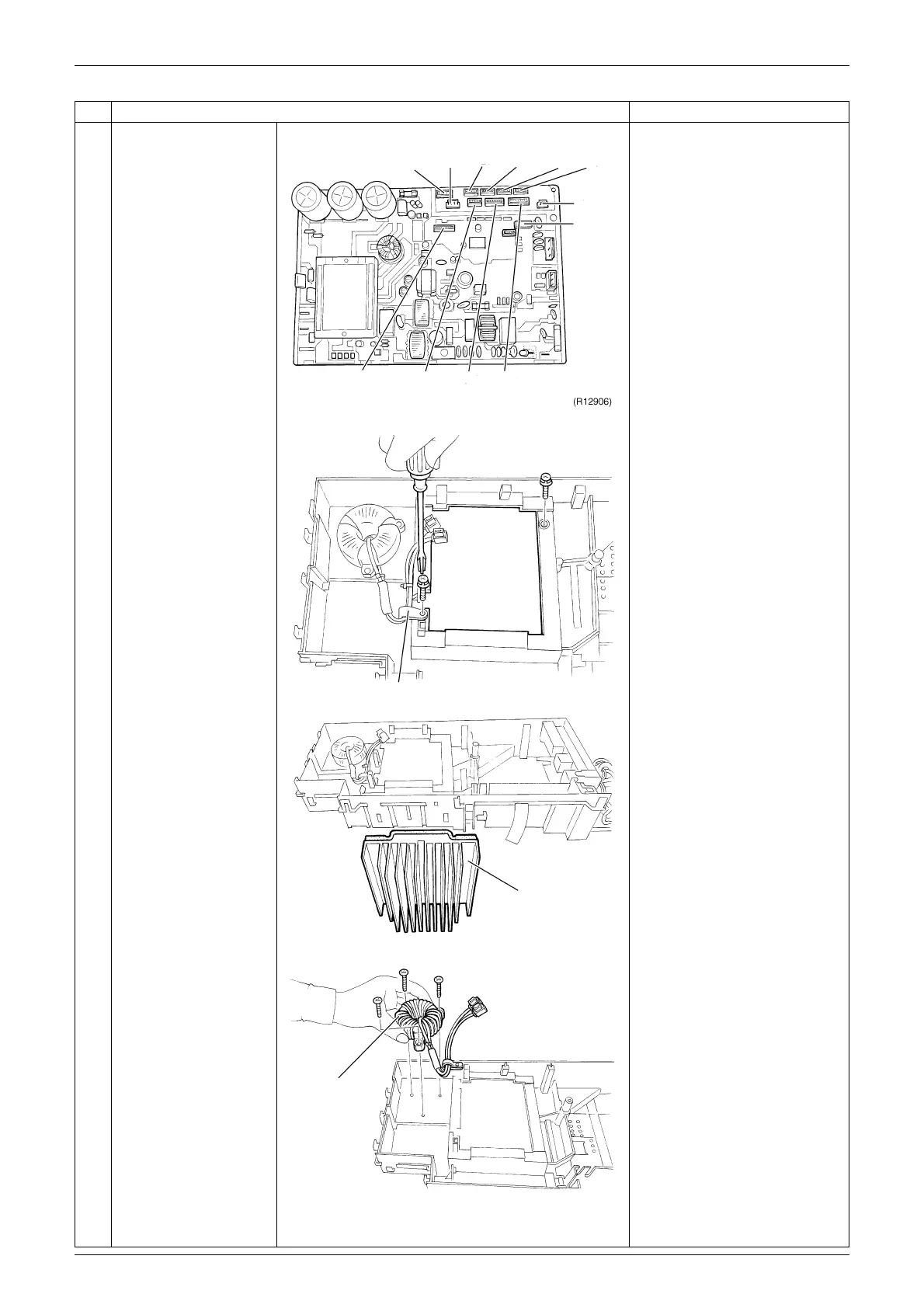

Outdoor Unit - 50~75 Class SiBE121021_C
386 Removal Procedure
îš„
Refer to page 81 for detail.
7
Remove the 2 screws
of the radiation fin.
îš„
When reassembling, make
sure to use the silicon
grease.
îš„
Silicon grease
Part No.: 1172698
8
Remove the 3 screws
of the reactor.
Step
Procedure Points
[S70] [S40] [S20] [S21] [S22]
[S23]
[S80]
[S101]
[S51]
[S90]
[S92]
[S93]
Clamp for reactor harness
(R11207)
(R5553)
Radiation fin
Reactor
(R11208)
