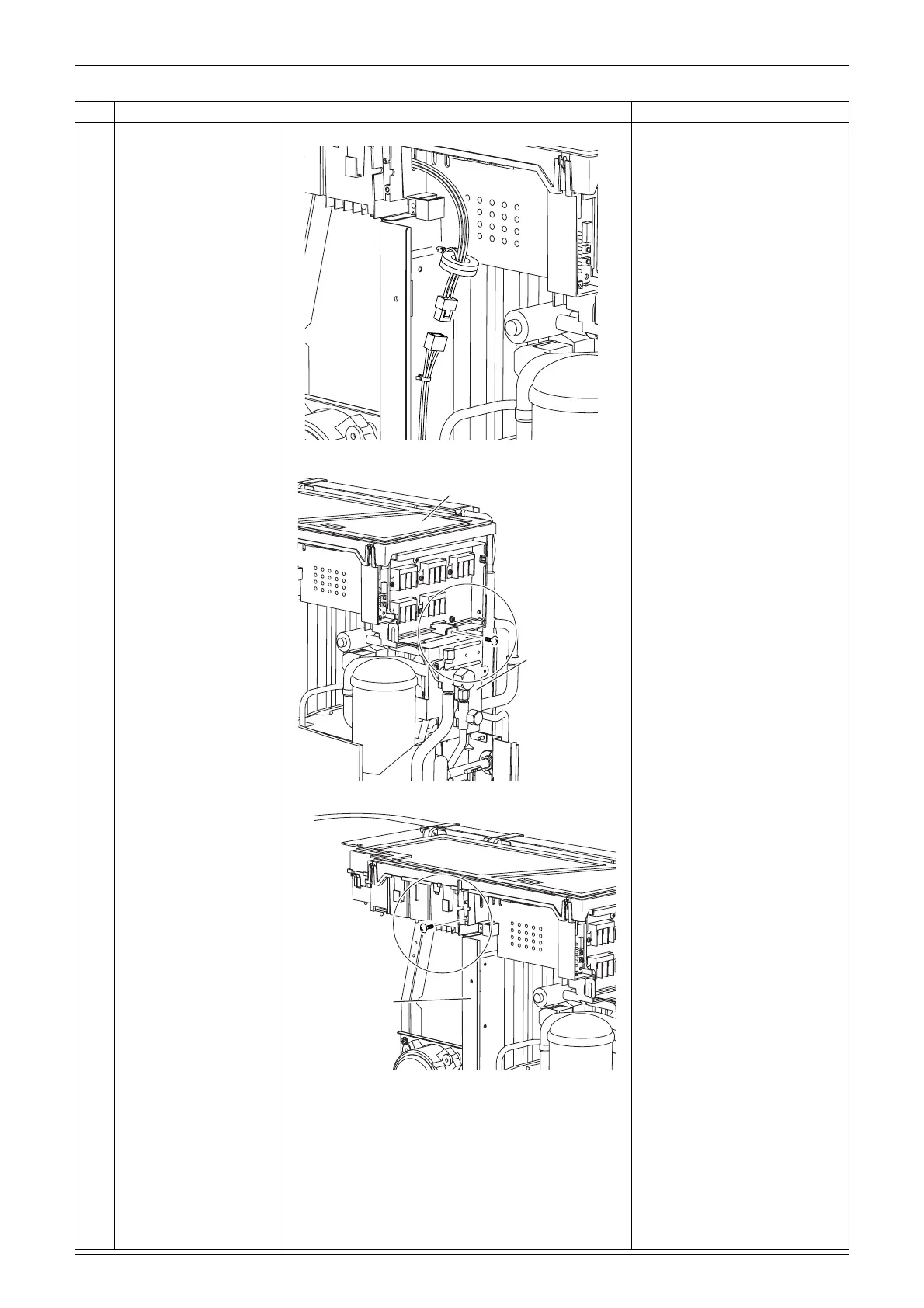

SiBE121021_C Outdoor Unit - 80/90 Class
Removal Procedure 421
13
Disconnect the relay
connector of the
compressor.
14
Remove the screw on
the stop valve mounting
plate.
15
Remove the screw on
the partition plate (1).
Step
Procedure Points
(R6469)
(R10395)
Electrical box
Stop valve
mounting plate
(R6411)
Partition plate (1)
