SiBE121021_C Outdoor Unit - 80/90 Class
Removal Procedure 425

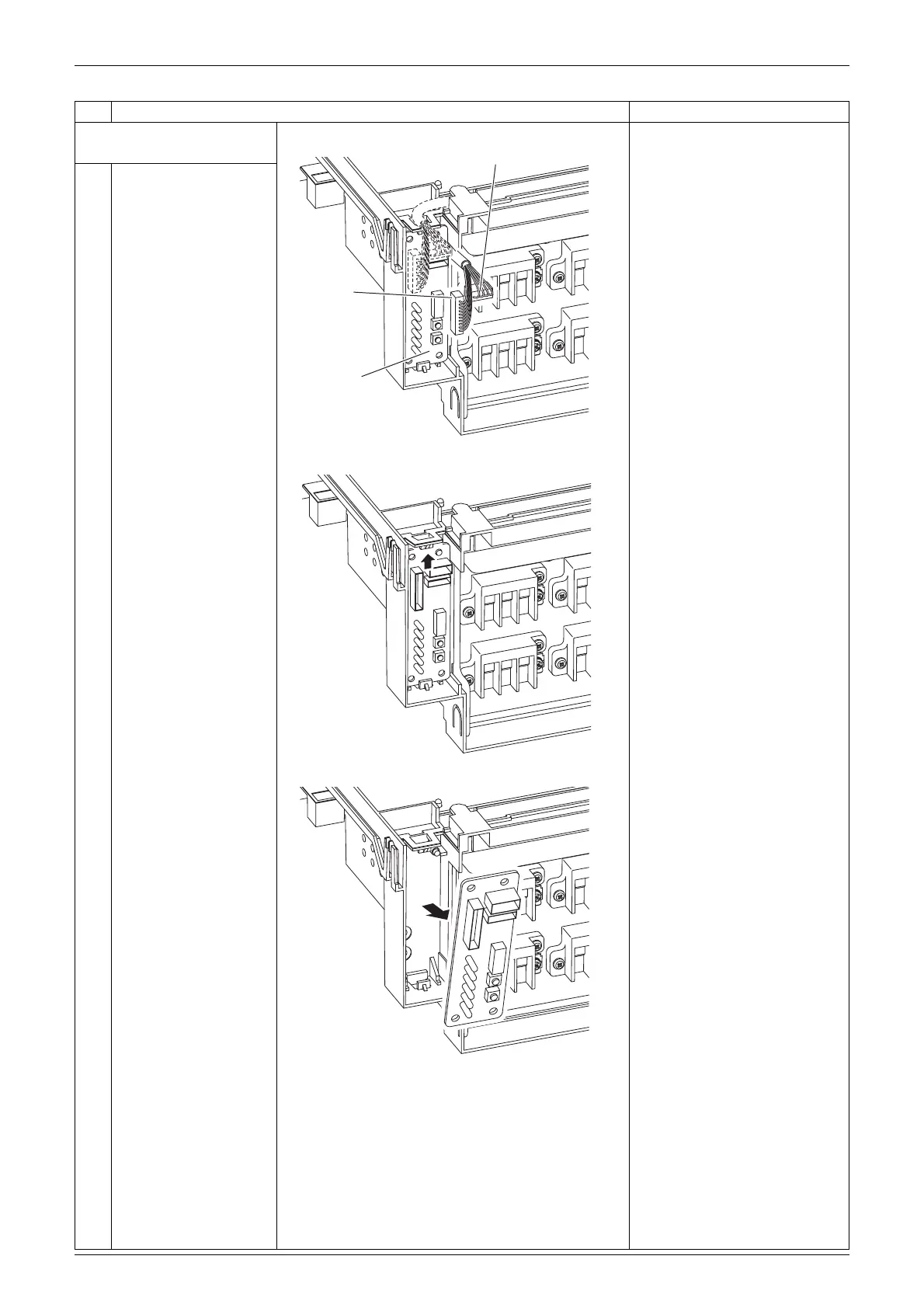

3. Remove the service
monitor PCB.
1
Disconnect the
connectors [S52]
[S102] from the service
monitor PCB.
2
Slightly lift the top hook
to detach.
3
Unfasten the bottom
hook and remove the
service monitor PCB.
îš„
Refer to page 82 for detail.
Step
Procedure Points
(R10410)
[S102]
[S52]
Service
monitor PCB
(R6436)
(R6437)
