Field Settings SiBE121021_C
448 Trial Operation and Field Settings
FTXS Series 60/71 Class
< Floor Standing Type>

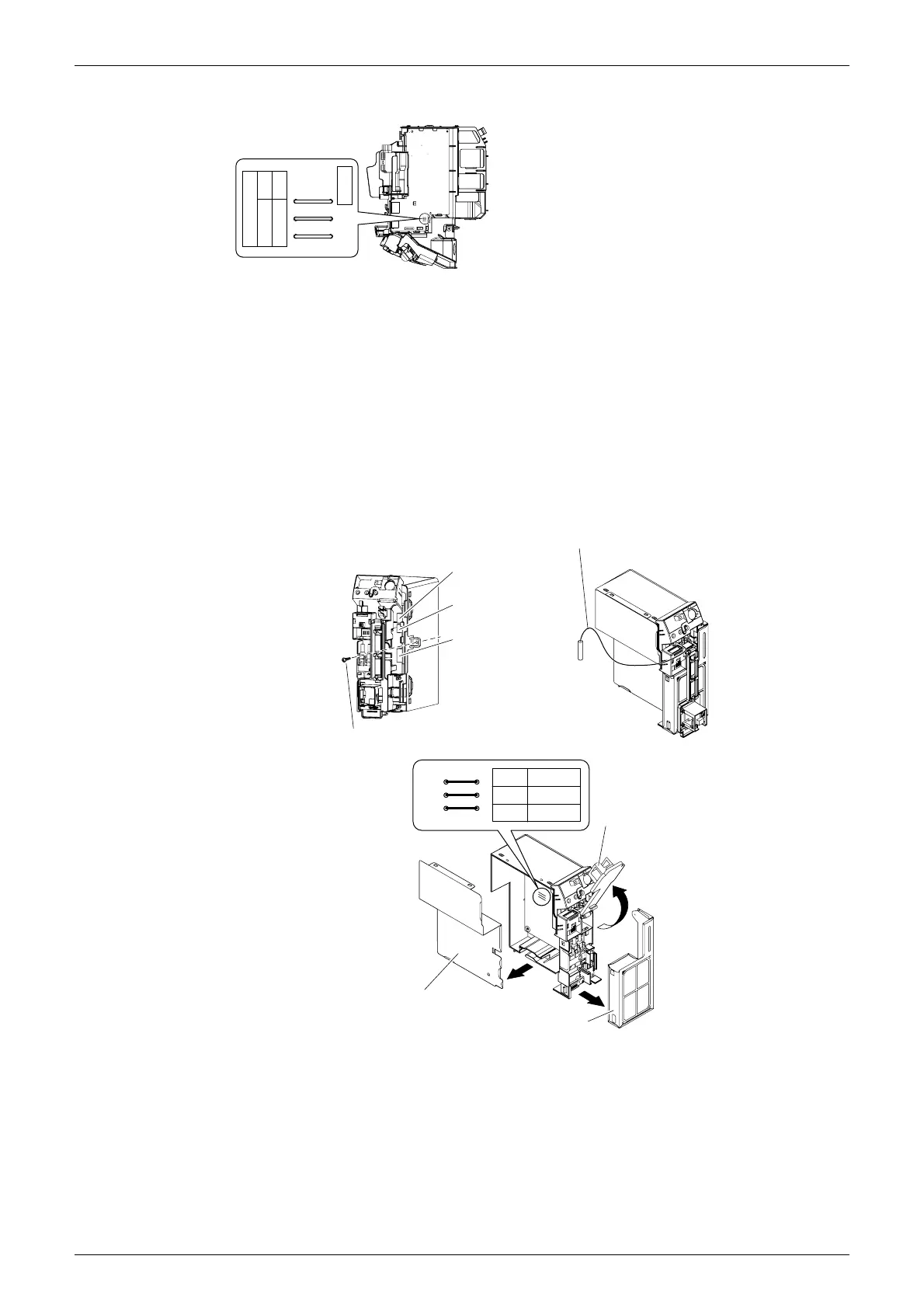

1) Remove the front grille.
2) Lift the sensor PCB fixing plate and remove the front shield plate.
3) Disconnect the connectors [S1] [S41] [S42].
4) Remove the electric box (1 screw).
5) Pull out the indoor heat exchanger thermistor.
6) Remove the shield plate (8 tabs).
7) Cut the address jumper JA on the indoor unit PCB.
8) Cut the address jumper J4 in the remote controller.
(Refer to “Wireless remote controller”.)
ADDRESS
ADDRESS:JA
(R11735)
JB
JA
JC
1
2
EXIST
CUT
3) Connector [S42]
3) Connector [S41]
3) Connector [S1]
4) Remove the screw.
5) Indoor heat exchanger
thermistor
JA
Address
2) Front shield plate
6) Shield plate
(R11692)
2) Sensor
PCB fixing
plate
JC
JA
JB
EXIST
CUT
1
2
To Next Page
