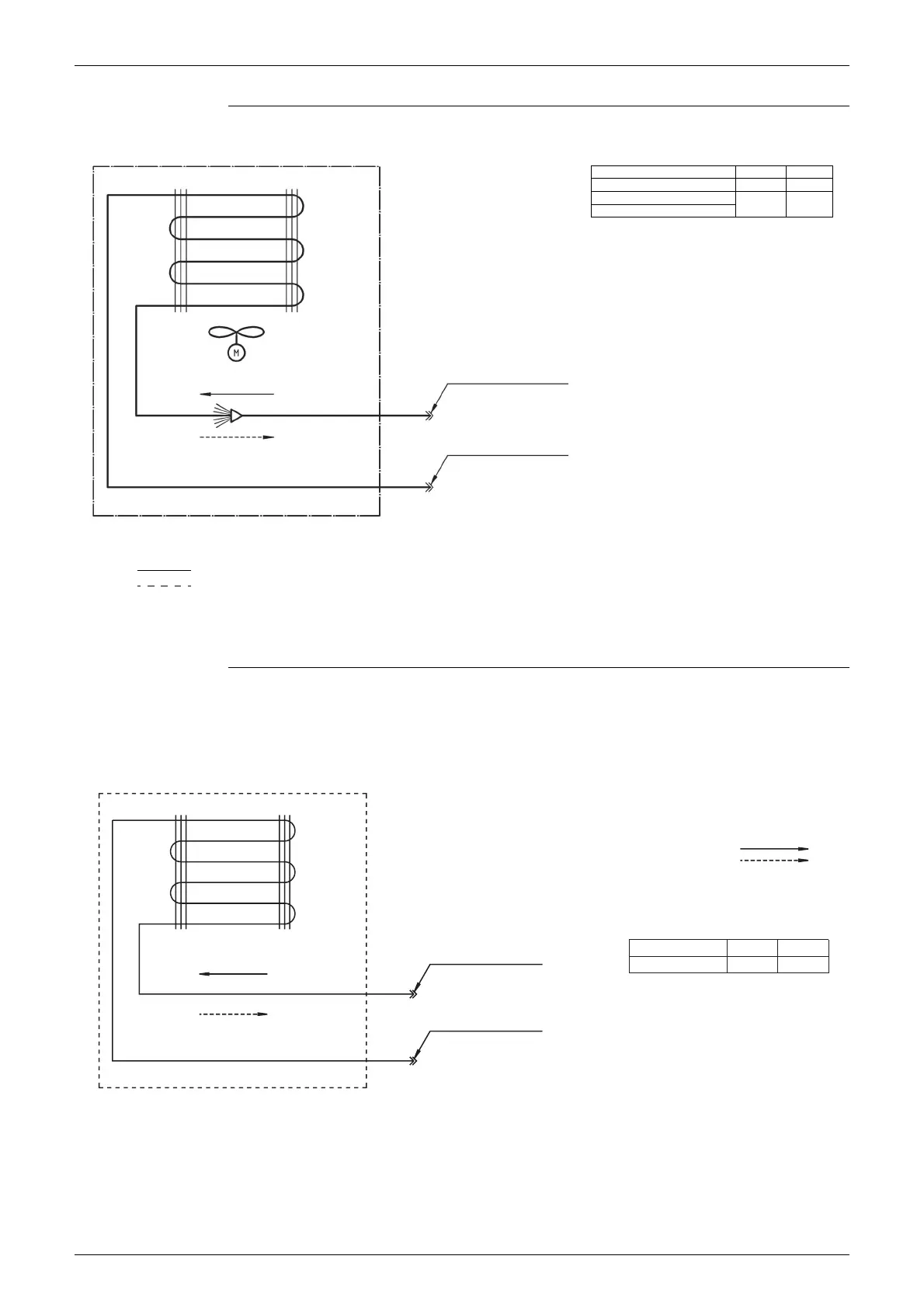

Piping Diagrams SiBE121021_C
468 Appendix
FCQ35/50/60C7VEB, FCQ35/50/60C8VEB
1.1.6 Ceiling Mounted Built-in Type
FDBQ25B8V1
C: 3TW28925-1A
FCQ35C
FCQ50C
FCQ60C
φ9.52
φ12.70
φ6.35
φ6.35
Model
Gas Liquid
Liquid pipe connection port
Gas pipe connection port
Cooling
Heating
Fan
Heat exchanger
C: 3TW20815-1B
Model
FDBQ25B8V1
Gas
φ9.52
Liquid
φ6.35
Refrigerant pipe connection port diameters
Refrigerant flow
Cooling
Heating
Heat exchanger
Liquid pipe connection port
Gas pipe connection port
