1. Presentation

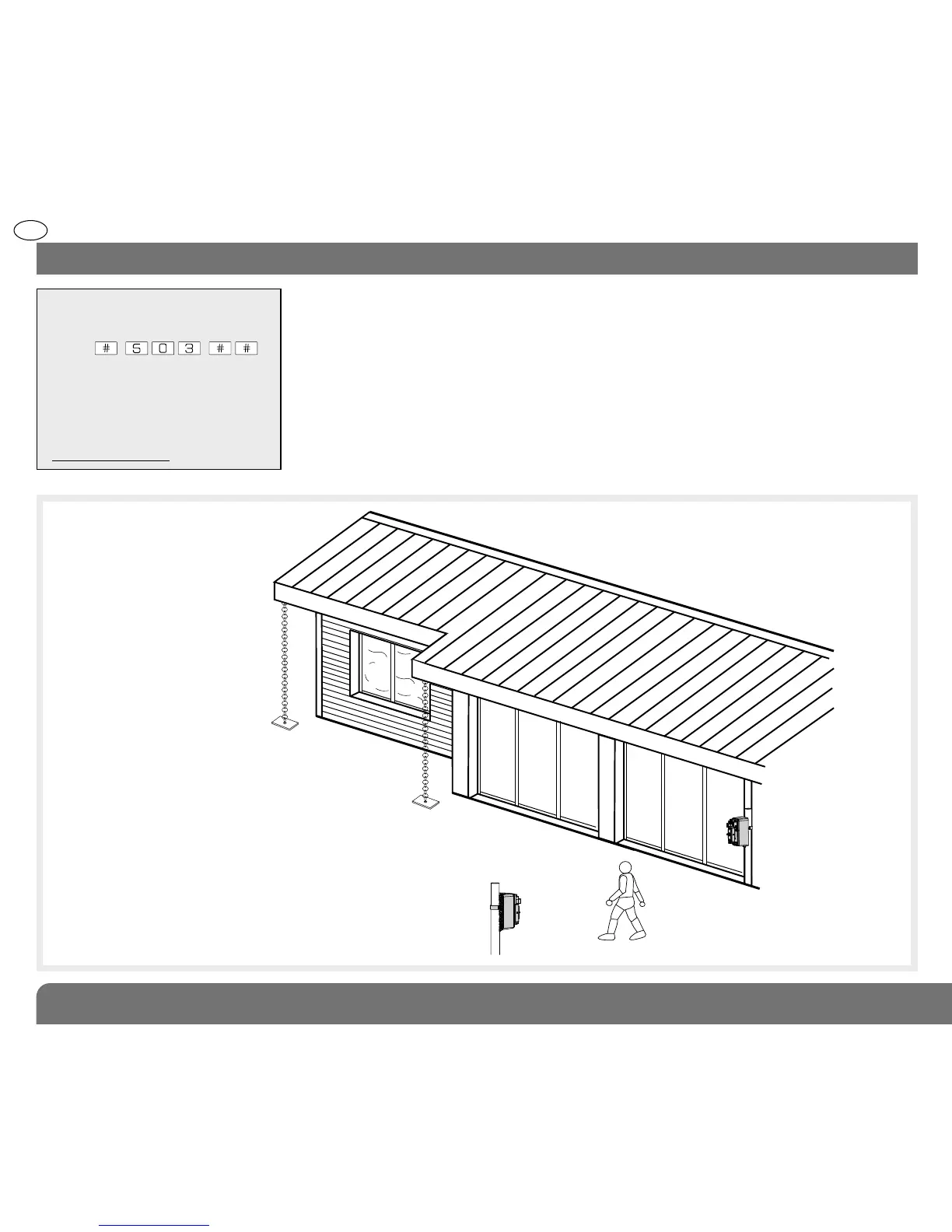

Example of an infra-red barrier
installed outside to protect
a passageway.
TRANSMITTER
column
RECEIVER
column
IMPORTANT
• Some functions are only available
with versions 2.0.0 or later
(press
on the control panel keypad to
check the version).
• The operating differences with
former ranges are described in the
compatibility booklet available in
the Daitem installers section at
www.daitem.co.uk.
This manual describes the installation of the following products:
• SH100AX: infra red barrier, 2 beam 30 m without radio.
• SH101AX: infra red barrier, 2 beam 60 m without radio.
• SH102AX: infra red barrier, 2 beam 30 m with radio.
• SH103AX: infra red barrier, 2 beam 60 m with radio.
• Detection Barriers SH100AX, SH102AX, SH101AX and SH103AX are barriers with active
infra-red beams intended to provide perimeter or trap detection around the exterior of the
protected premises (they will also detect the presence of animals, depending upon their
size and the mounting height of the barrier beams. By selecting the appropriate mounting
height, small animals can be ignored while intruders are still detected.
• Each barrier comprises an infra red transmitter and receiver, each powered by a lithium
power pack (supplied). The battery life of both the 30 m and 60 m units is 5 years.
