Wired Controller CDV-46
13
5.1.3 Wiring Requirements
There are four network wiring methods between wired controller and indoor unit:

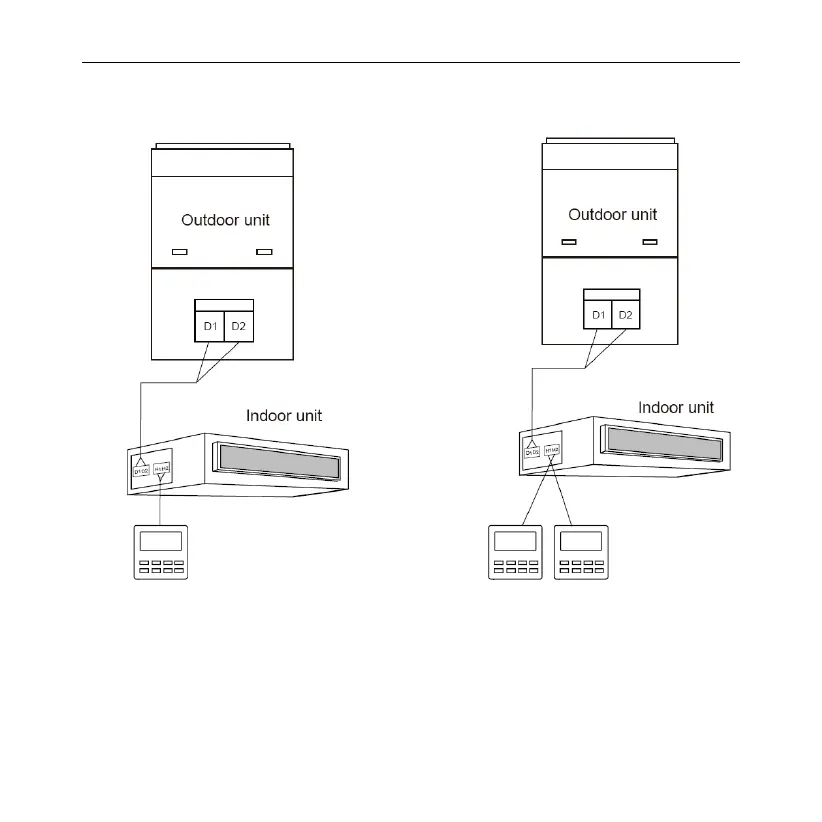

Fig. 5.3 One wired controller controls Fig. 5.4 Two wired controllers control
one indoor unit one indoor unit
