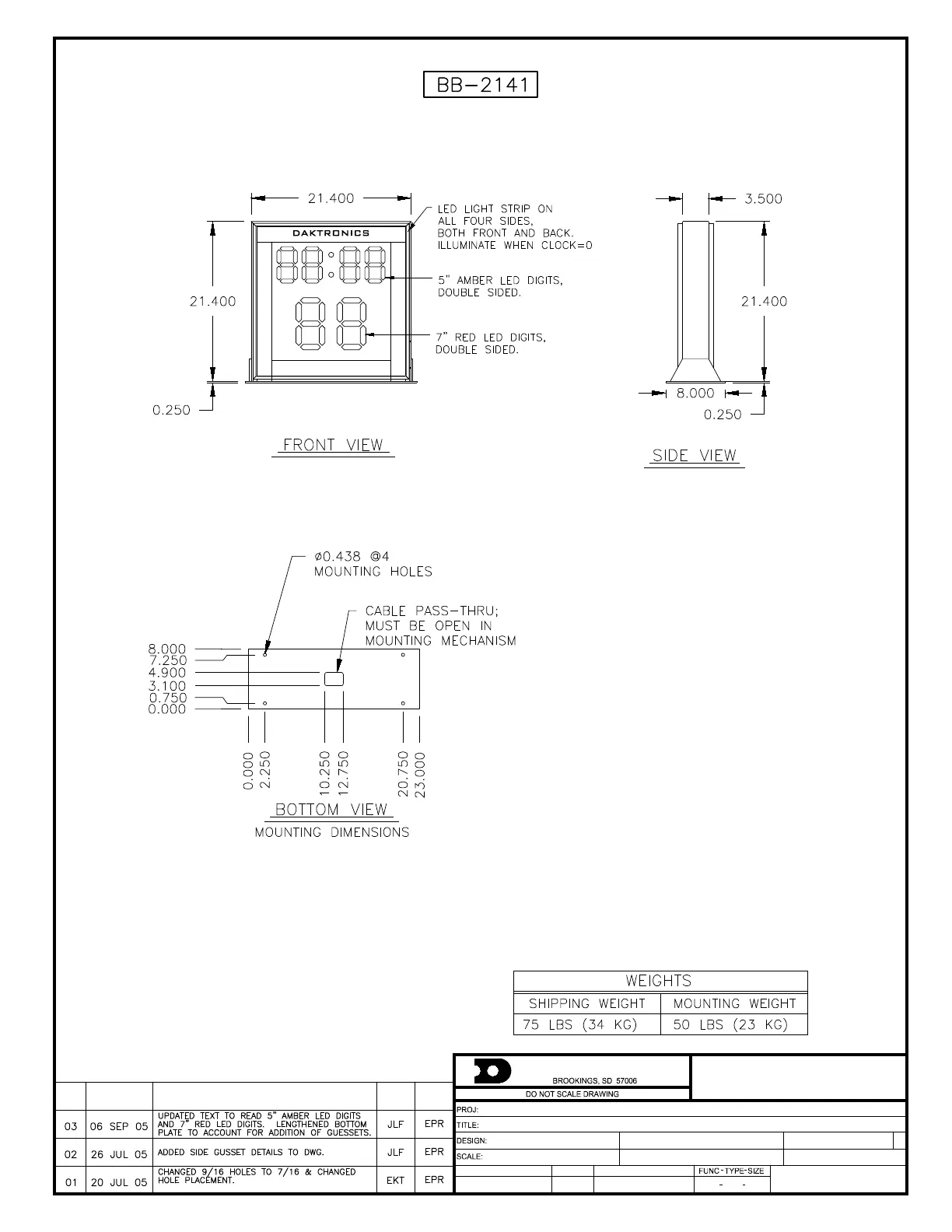

TRANSPARENT SHOT CLOCKS
MECHANICAL SPEC: BB-2141
CBRECZI 02 MAR 05
P1322 E
10 A
1=15
CBRECZI
04
DATE:REV BY:
04 19 AUG 15 ZSW
PER EC-16838, INCREASED BASE WIDTH FROM 6" TO 8",
INCREASED MTG HOLE SPACING FROM 4.875" TO 6.5"
