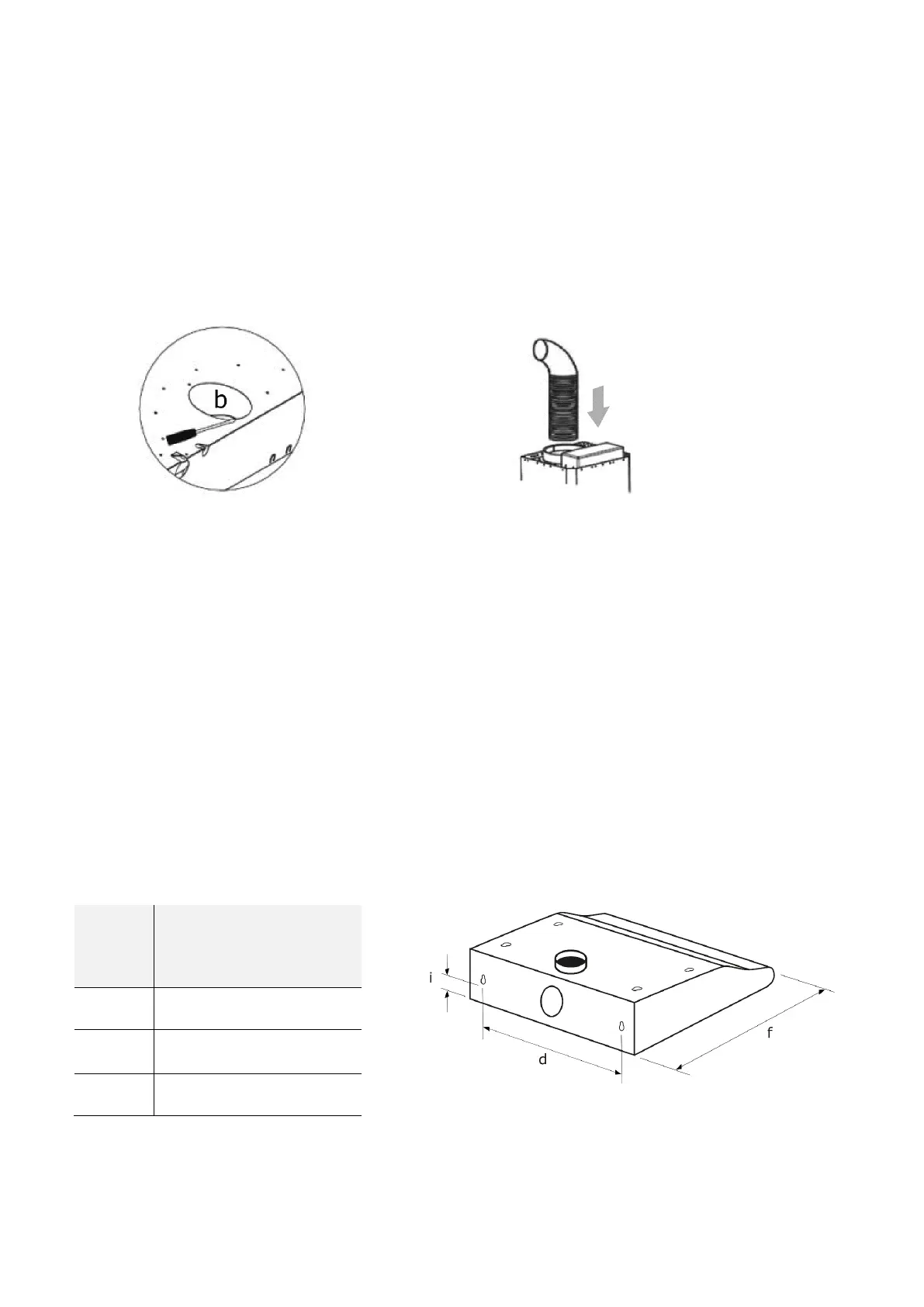

Open duct outlet b (see Figure 2).
1. Push a flat-bladed screwdriver under the small cover on the upper side of the
appliance.
2. Prise out the cover.
3. Bend off the cover at the mounting points.
4. Install the exhaust air fitting supplied.
Ensure that the duct outlet b on the rear of the appliance (not illustrated) remains
closed.
Installing the extractor hood on the wall
1. Mark the position of the extractor hood on the wall. The marks must correspond to
the 2 keyhole openings (suspension points) on the rear of the extractor hood.
2. Screw the 2 screws supplied into the wall. Do not screw in too far.
3. Fit the suspension points of the extractor hood over the 2 screw heads. The screws
must fit into the narrower recess.
4. Tighten the screws and check whether the installation is stable between extractor
hood and wall.
5. Attach the extractor hood to the wall with another 2 screws through the round hole
safety openings.
6. Fit the exhaust air hose to the exhaust air fitting (Fig. 3).
