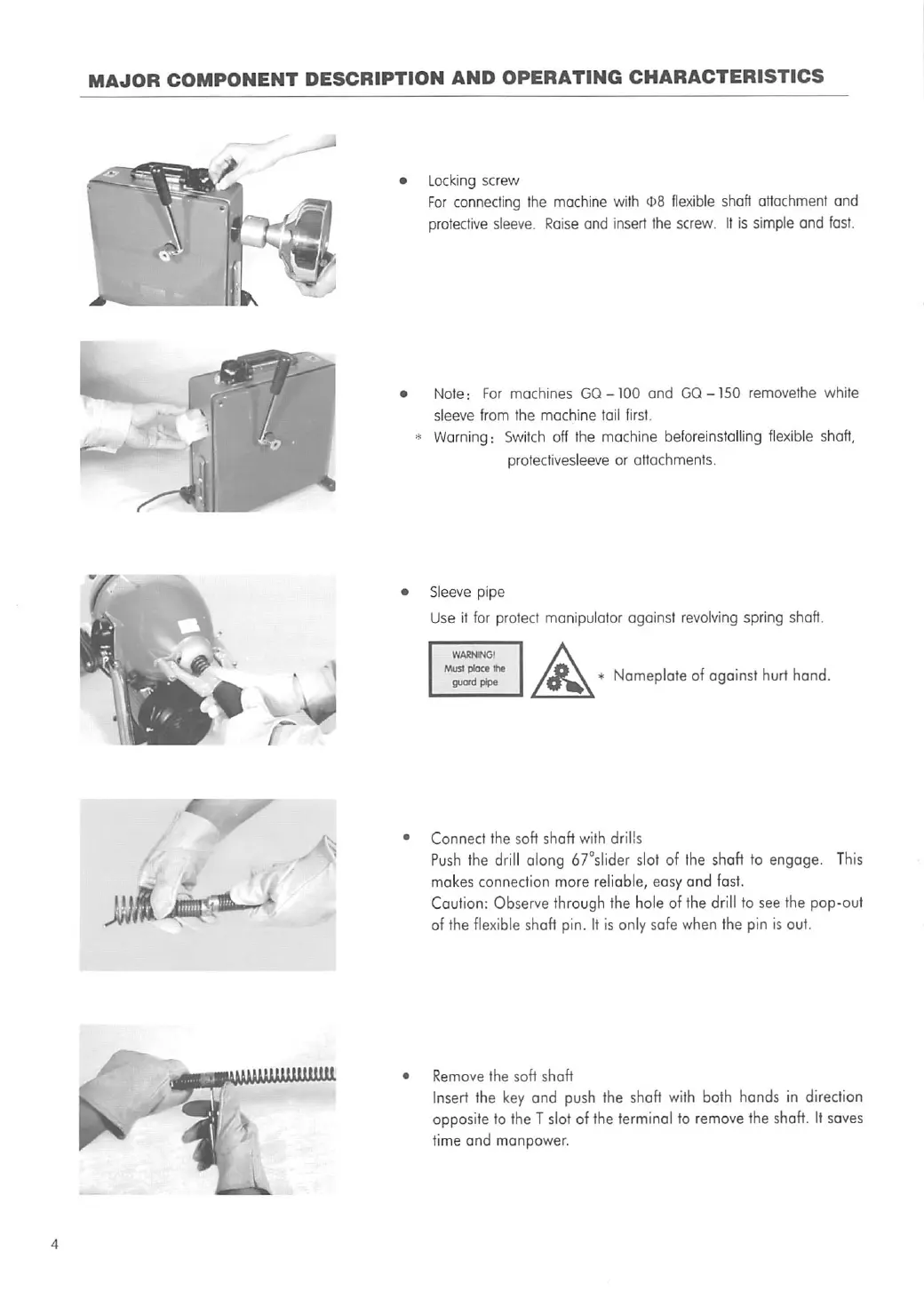

MAJOR
COMPONENT
DESCRIPTION
AND
OPERATING
CHARACTERISTICS
%
4/
•'
Locking
screw
For
connecting
the
machine
with
08
flexible
shaft attachment and
protective
sleeve.
Raise
and
insert
the screw.
It
is simpleand
fast.
Note:
For
machines
GQ-100
and
GQ-150
removethe
white
sleeve
from
the
machine
tail first.
* Warning:
Switch
off
the machine beforeinstalling
flexible
shaft,
protectivesleeve or attachments.
Sleeve pipe
Use it for protect manipulator against
revolving
spring shaft.
WARNING'
Musi place ttie
guandpipe
* Nomeplate of ogoinst hurt hond.
Connect
the
soft
shaft
with drills
Push
the
drill
along
67°slider
slot
of the shaft to engage.
This
mokes
connection more reliable,easy and fast.
Caution: Observethroughthe holeofthe
drill
to see the pop-out
of the
flexible
shoftpin.
It
Is
onlysafe whenthe pin isout.
Remove
the
soft
shaft
Insert
the
key
and push the shaft
with
both hands in direction
opposite
to the T
slot
ofthe
terminal
to
remove
the
shaft.
It
saves
time and manpower.
