13 REAR SUSPENSION

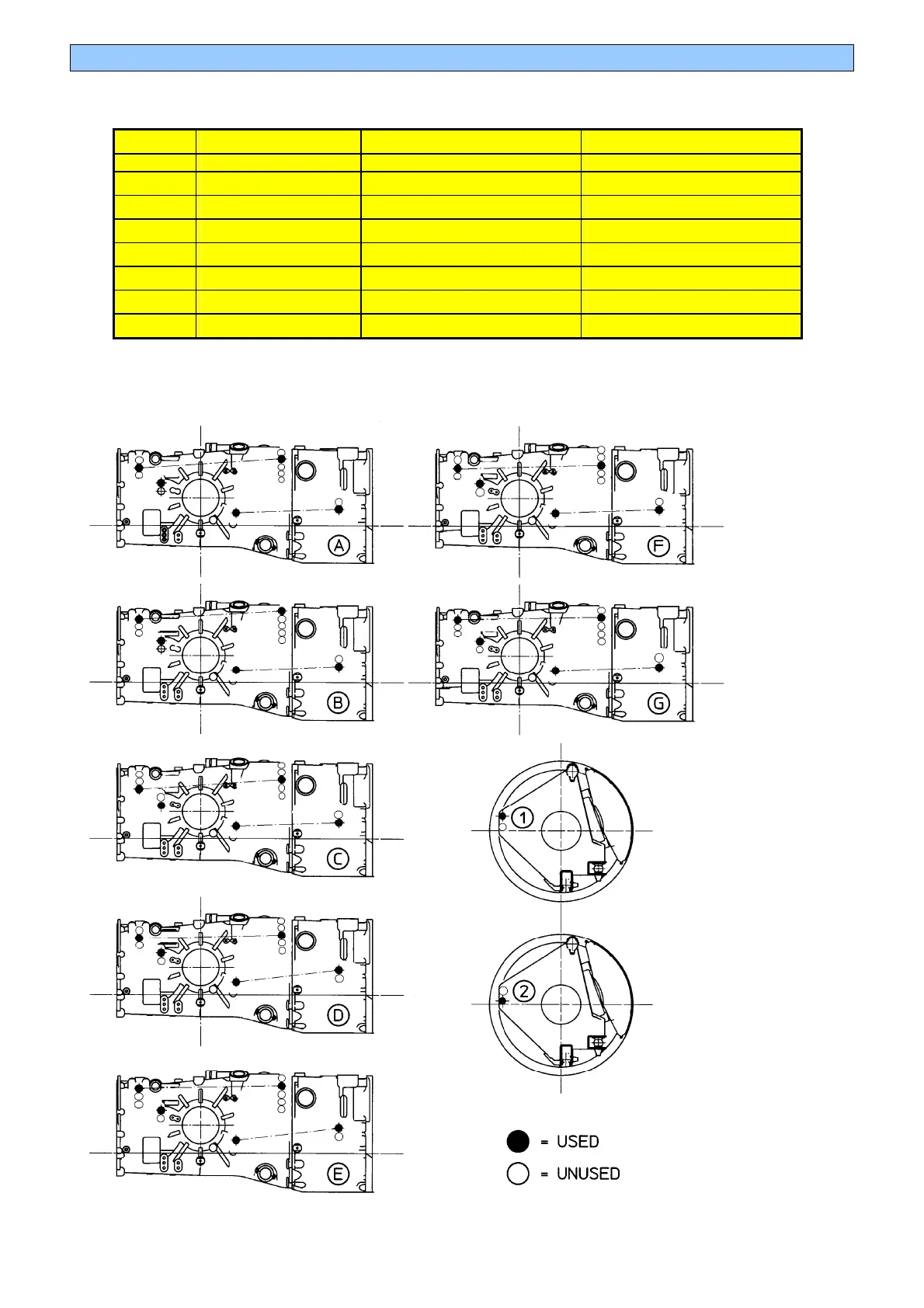

REAR SUSPENSION ROLL CENTER AND ANTISQUAT SETTING
Option D-1 and E-2 alter caster angle. To obtain std value shorten by 2 turns the ‘caster’
uniball.Option B-2 needs special bracket for front top mounting (available at Dallara).
OPTION Roll centre height Camber change Antisquat
@ static ride height with 10mm wheel travel %
A-1 Std 20’ 48
B-2 -18 16’ 48
C-1 +18 24’ 48
*D-1 std 23’ 66
*E-2 -15 18’ 66
F-1 +8 22’ 35
G-2 -10 18’ 35
