REAR ANTIROLL BAR STIFFNESS 14
F302/3 features a rear anti-roll bar with two adjustable blades, long 80mm.
Ø 40mm is the biggest possible RARB, Ø13mm is the softest RARB available.
The two digits in this table represent the blade positions: 1=full soft, 5=full stiff.
Stiffness in kg/mm. Note: P1-P5 = P3-P3 = P2-P4
Ø 13 Ø 14 Ø 16 Ø 19 Ø 21 Ø 22 Ø 24 Ø 26 Ø 28 Ø 30 Ø 35 Ø 40
P1-P1 15.7 19.9 29.4 44.6 53.8 57.8 65.0 70.6 75.1 78.7 84.5 87.7
1-2 15.8 20.2 30.0 45.9 55.7 60.1 67.9 74.1 79.0 83.0 89.5 93.0
2-2 16.0 20.4 30.6 47.4 57.8 62.5 71.0 77.8 83.3 87.7 95.0 99.0
1-3 16.3 20.8 31.5 49.5 61.1 66.3 76.0 83.8 90.2 95.5 104.1 108.9
2-3 16.4 21.1 32.1 51.2 63.6 69.3 80.0 88.7 95.8 101.8 111.7 117.3
1-4 16.7 21.5 33.1 53.7 67.6 74.1 86.3 96.6 105.1 112.3 124.5 131.4
1-5 16.9 21.8 33.8 55.7 70.7 77.8 91.5 103.1 112.8 121.2 135.5 143.8
2-5 17.0 22.1 34.6 57.8 74.1 82.0 97.3 110.5 121.8 131.6 148.7 158.7
3-4 17.3 22.6 35.7 61.0 79.6 88.7 106.9 123.0 137.2 149.8 172.3 185.9
3-5 17.5 22.9 36.6 63.5 83.9 94.2 114.9 133.8 150.7 166.0 194.2 211.5
4-4 17.8 23.4 37.9 67.5 91.0 103.1 128.4 152.5 174.9 195.8 236.3 262.5
4-5 18.0 23.8 38.8 70.6 96.7 110.5 140.2 169.3 197.5 224.5 279.4 316.8
5-5 18.2 24.2 39.8 74.0 103.2 119.1 154.3 190.4 226.7 263.1 341.7 399.4

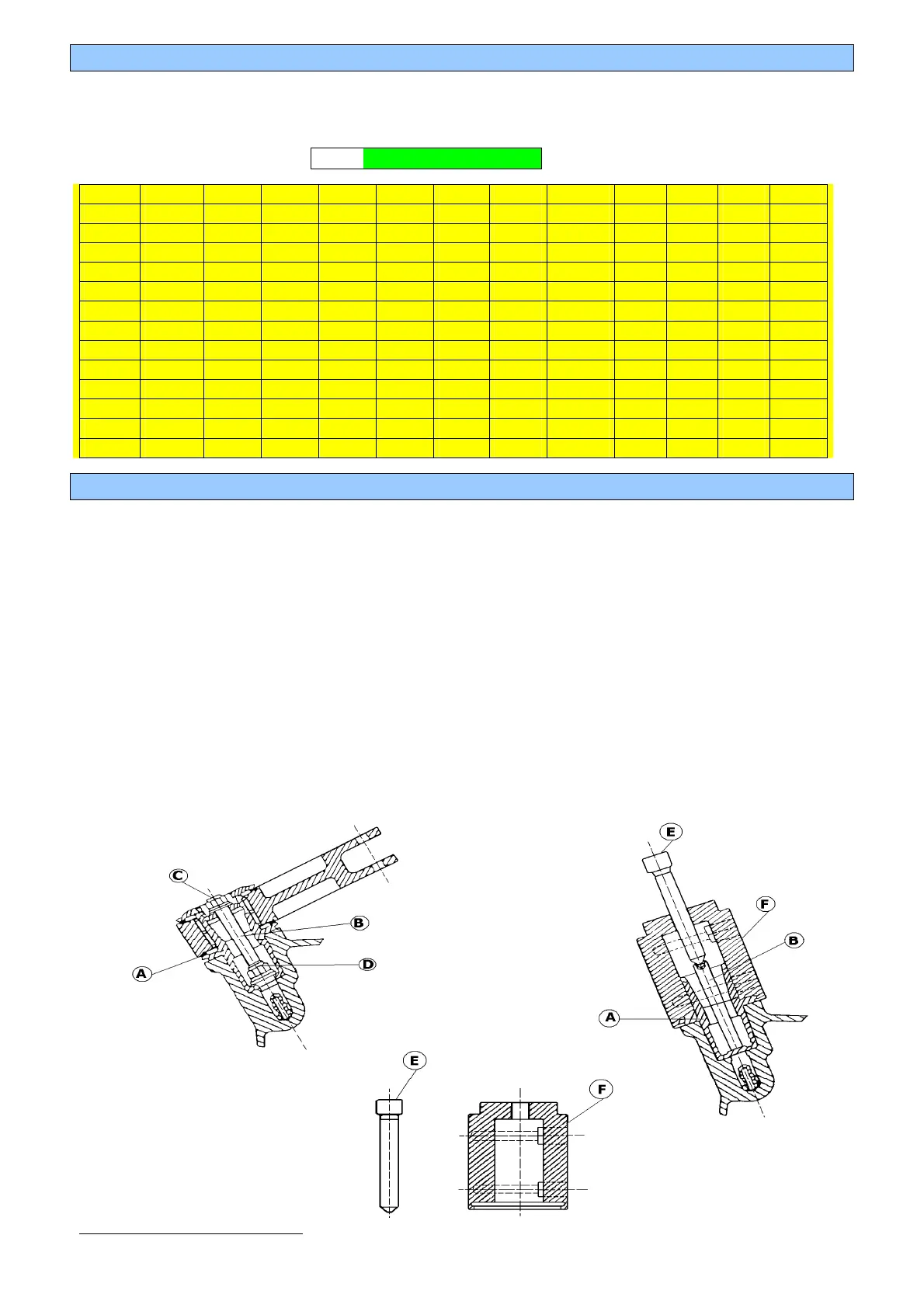

REAR SUSPENSION ROCKER REPLACEMENT
Rear rocker spins around the steel pivot A fitted onto the gearbox case by the stud B, fixed
with LOCTITE 242
™
. The following procedure shows the disassembly of the rocker and the
pivot A. Contact DALLARA customer’s service regarding the special tools E and F.
• Unscrew the nut C. The tightening torque to fit it back is 3.5 Kgm;
• Take off the top cap and the rocker;
• Unscrew nut D with a long 14mm tubular spanner. The tightening torque to fit it back is
5.5 Kgm;
• Fit extractor F around pivot’s outer flange and by screwing in bolt E you will extract the
pivot;
• Remove stud B with the proper tool. The stud is fitted with Loctite in its insert. When
removing the stud, heat up the stud’s thread to break the Loctite with a heatgun up to
140°C.
