dallara F305 - Rear Suspension Geometry

13 REAR SUSPENSION

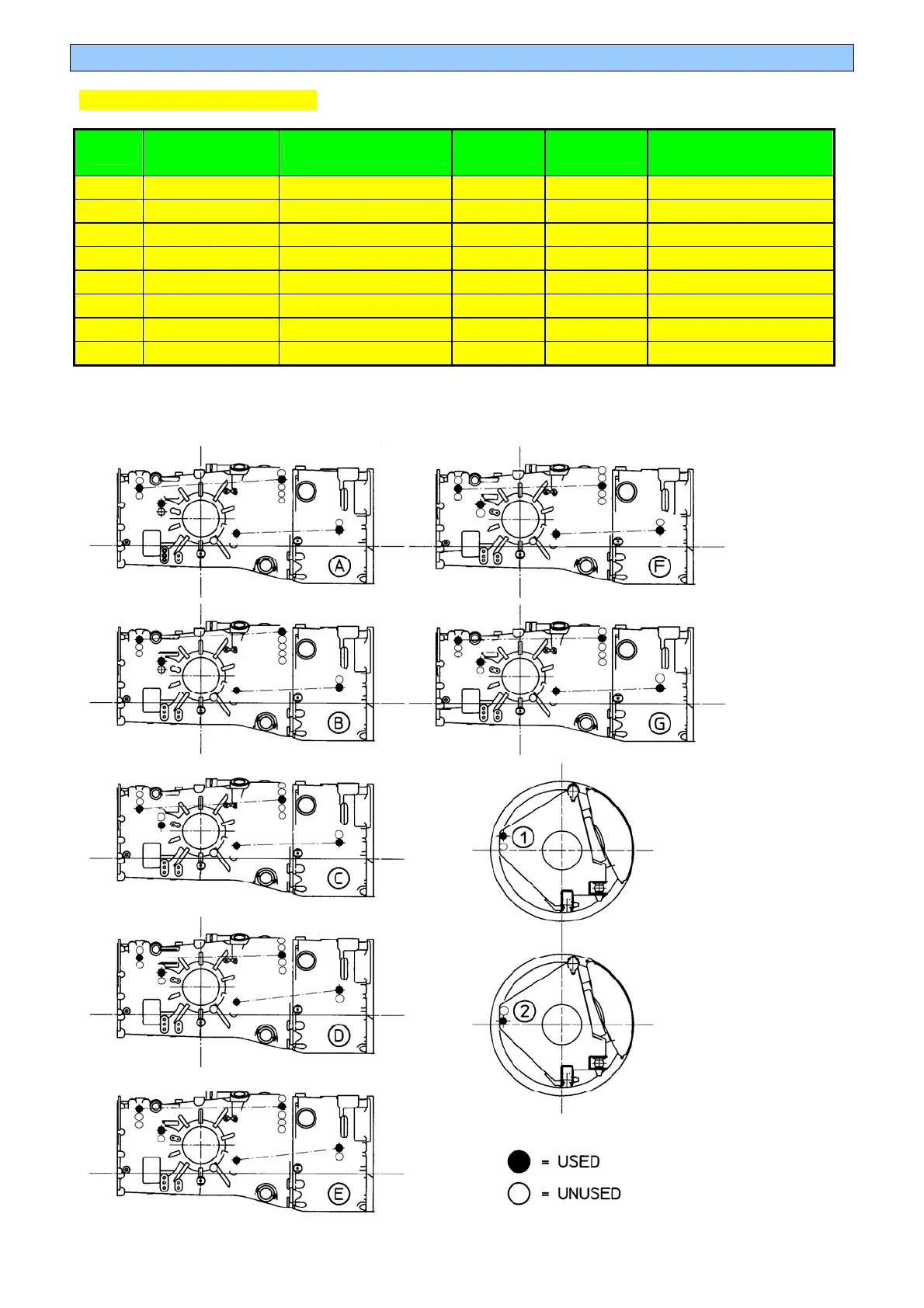

REAR SUSPENSION GEOMETRY
Configuration B-2 needs special brackets for the front top mountings (these are available
from Dallara).
CFG
Roll centre
height
Camber change Anti-rise Anti-squat
To adjust ‘caster’
adjust joint
@ static ride height with 10mm wheel travel % % + means longer
A-1 std 20’ 7 49 -
B-2 -18 16’ 7 49 -1.5 turns
C-1 +18 24’ 7 49 -
*D-1 std 23’ 69 69 -0.5 turn
*E-2 -15 18’ 69 69 -1.5 turns
F-1 +8 22’ 22 36 +1.5 turns
G-2 -10 18’ 22 36 -
