dallara F305 - Differential Lay-Out

DIFFERENTIAL LAY-OUT 16

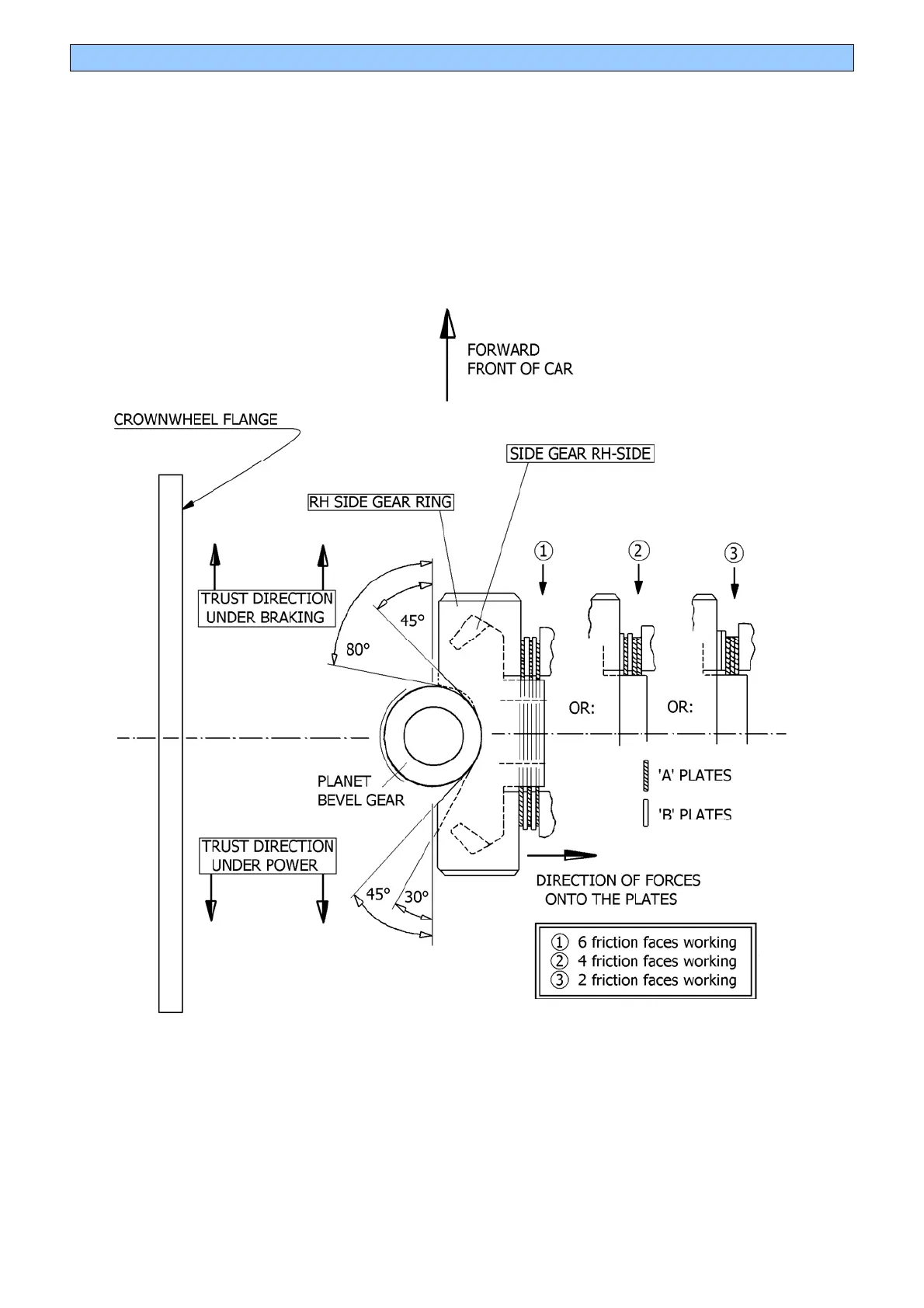

• Check the plate arrangement is equal on both sides.
• Side gear ring, diff end plate, diff wall and pre-load spacer all act as “B” plates
• A bigger ramp angle transmits less thrust onto the plates than a smaller ramp angle.
