Installation Instructions
7
4

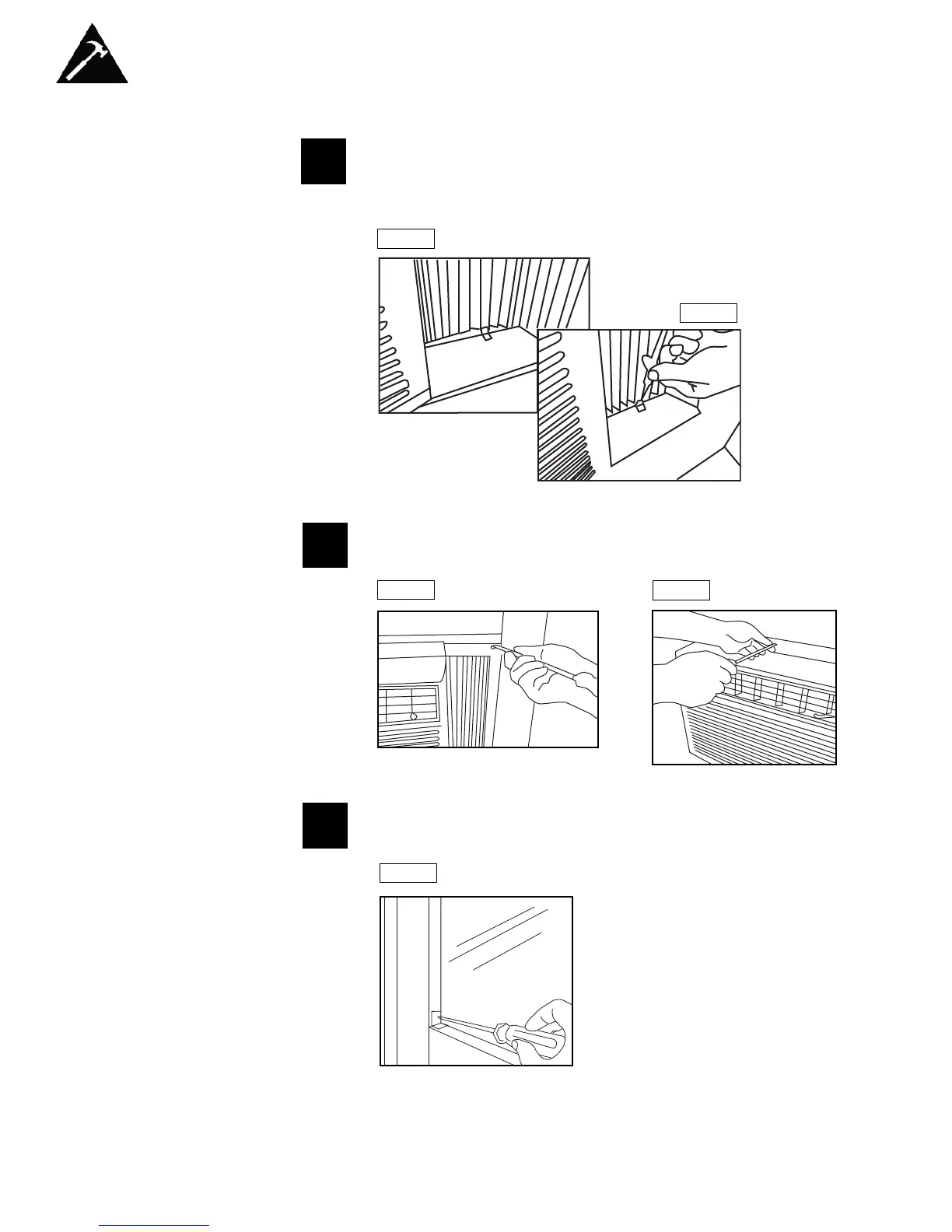

Place the frame lock between the frame extensions and the window sill as
shown (Fig. 8). Drive 3/4” (19 mm) locking screws through the frame lock
and into the sill (FIG. 9). NOTE: To prevent window sill from splitting, drill
1/8” (3 mm) pilot holes before driving screws.
Fig. 8
5
To secure lower sash in place, attach right angle sash lock with 4/5”
(19mm) screw as shown (Fig.12).
Fig. 12
HOW TO
INSTALL (cont)
Fig. 9
Drive 3/4” (19 mm) locking screws through frame holes into window sash
(FIG. 10/11).
Fig. 10
Fig. 11
6
