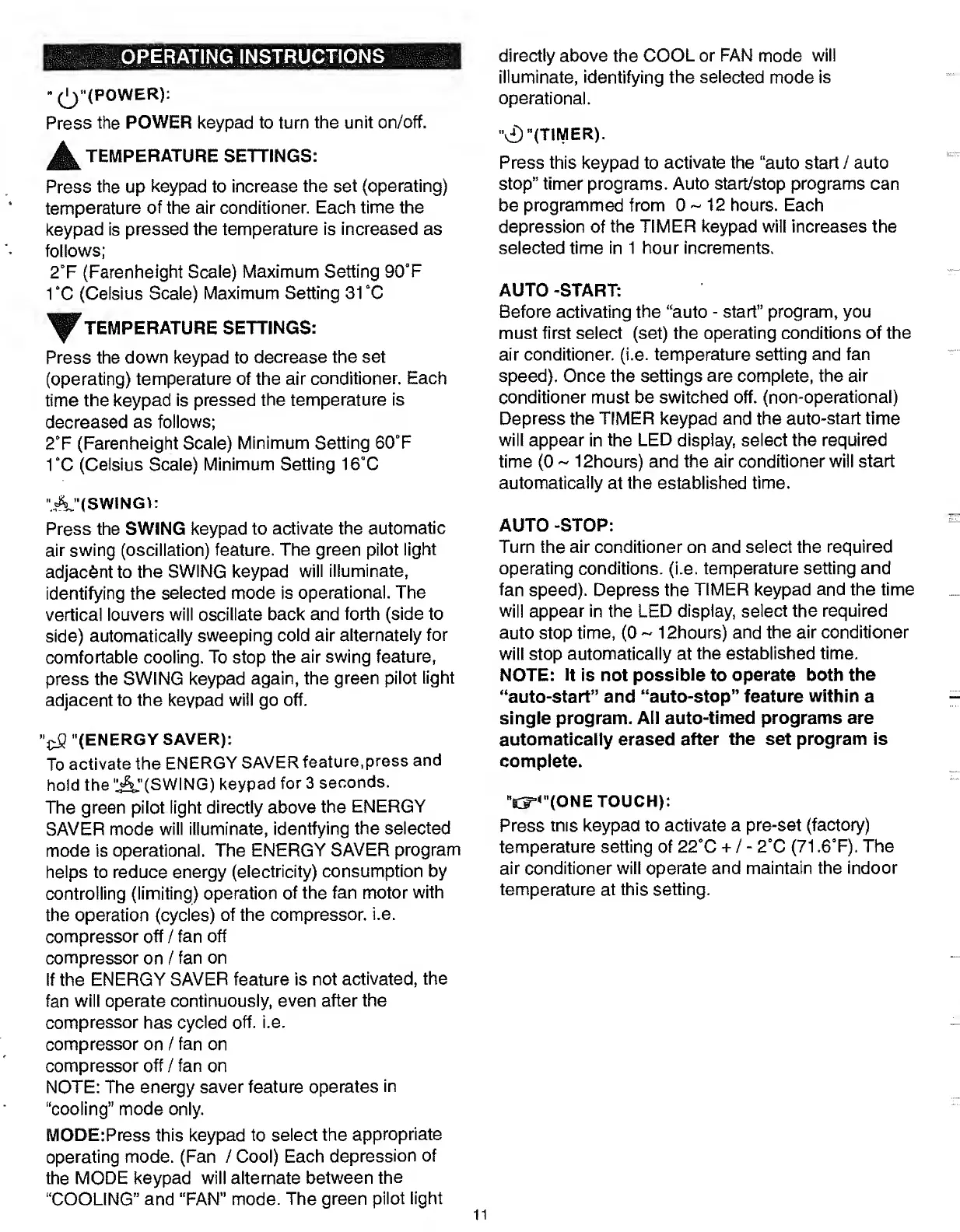

OPERATING INSTRUCTIONS
" (^)"(POWER):
Press the POWER keypad to turn the unit on/off.
^TEMPERATURE SETTINGS:
Press the up keypad to increase the set (operating)
temperature of the air conditioner. Each time the
keypad is pressed the temperature is increased as
follows;
2°F (Farenheight Scale) Maximum Setting 90°F
1°C (Celsius Scale) Maximum Setting 31°C
1|FTEMPERATURE SETTINGS:
Press the down keypad to decrease the set
(operating) temperature of the air conditioner. Each
time the keypad is pressed the temperature is
decreased as follows;
2“F (Farenheight Scale) Minimum Setting 60°F
1°C (Celsius Scale) Minimum Setting 16°C
"A"( SWING
Press the SWING keypad to activate the automatic
air swing (oscillation) feature. The green pilot light
adjacent to the SWING keypad will illuminate,
identifying the selected mode is operational. The
vertical louvers will oscillate back and forth (side to
side) automatically sweeping cold air alternately for
comfortable cooling. To stop the air swing feature,
press the SWING keypad again, the green pilot light
adjacent to the keypad will go off.
"tfi "(ENERGY SAVER):
To activate the ENERGY SAVER feature,press and
hold the '^J’(SWING) keypad for 3 seconds.
The green pilot light directly above the ENERGY
SAVER mode will illuminate, identfying the selected
mode is operational. The ENERGY SAVER program
helps to reduce energy (electricity) consumption by
controlling (limiting) operation of the fan motor with
the operation (cycles) of the compressor, i.e.
compressor off / fan off
compressor on / fan on
If the ENERGY SAVER feature is not activated, the
fan will operate continuously, even after the
compressor has cycled off. i.e.
compressor on / fan on
compressor off / fan on
NOTE: The energy saver feature operates in
“cooling” mode only.
MODE: P ress this keypad to select the appropriate
operating mode. (Fan / Cool) Each depression of
the MODE keypad will alternate between the
“COOLING” and “FAN” mode. The green pilot light
directly above the COOL or FAN mode will
illuminate, identifying the selected mode is
operational.
\D "(TIMER).
Press this keypad to activate the “auto start / auto
stop” timer programs. Auto start/stop programs can
be programmed from 0 ~ 12 hours. Each
depression of the TIMER keypad will increases the
selected time in 1 hour increments.
AUTO -START:
Before activating the “auto - start” program, you
must first select (set) the operating conditions of the
air conditioner, (i.e. temperature setting and fan
speed). Once the settings are complete, the air
conditioner must be switched off. (non-operational)
Depress the TIMER keypad and the auto-start time
will appear in the LED display, select the required
time (0 ~ 12hours) and the air conditioner will start
automatically at the established time.
AUTO -STOP:
Turn the air conditioner on and select the required
operating conditions, (i.e. temperature setting and
fan speed). Depress the TIMER keypad and the time
will appear in the LED display, select the required
auto stop time, (0 ~ 12hours) and the air conditioner
will stop automatically at the established time.
NOTE: It is not possible to operate both the
“auto-start” and “auto-stop” feature within a
single program. All auto-timed programs are
automatically erased after the set program is
complete.
"SCFHONE TOUCH):
Press tnis keypad to activate a pre-set (factory)
temperature setting of 22°C + / - 2°C (71.6°F). The
air conditioner will operate and maintain the indoor
temperature at this setting.
