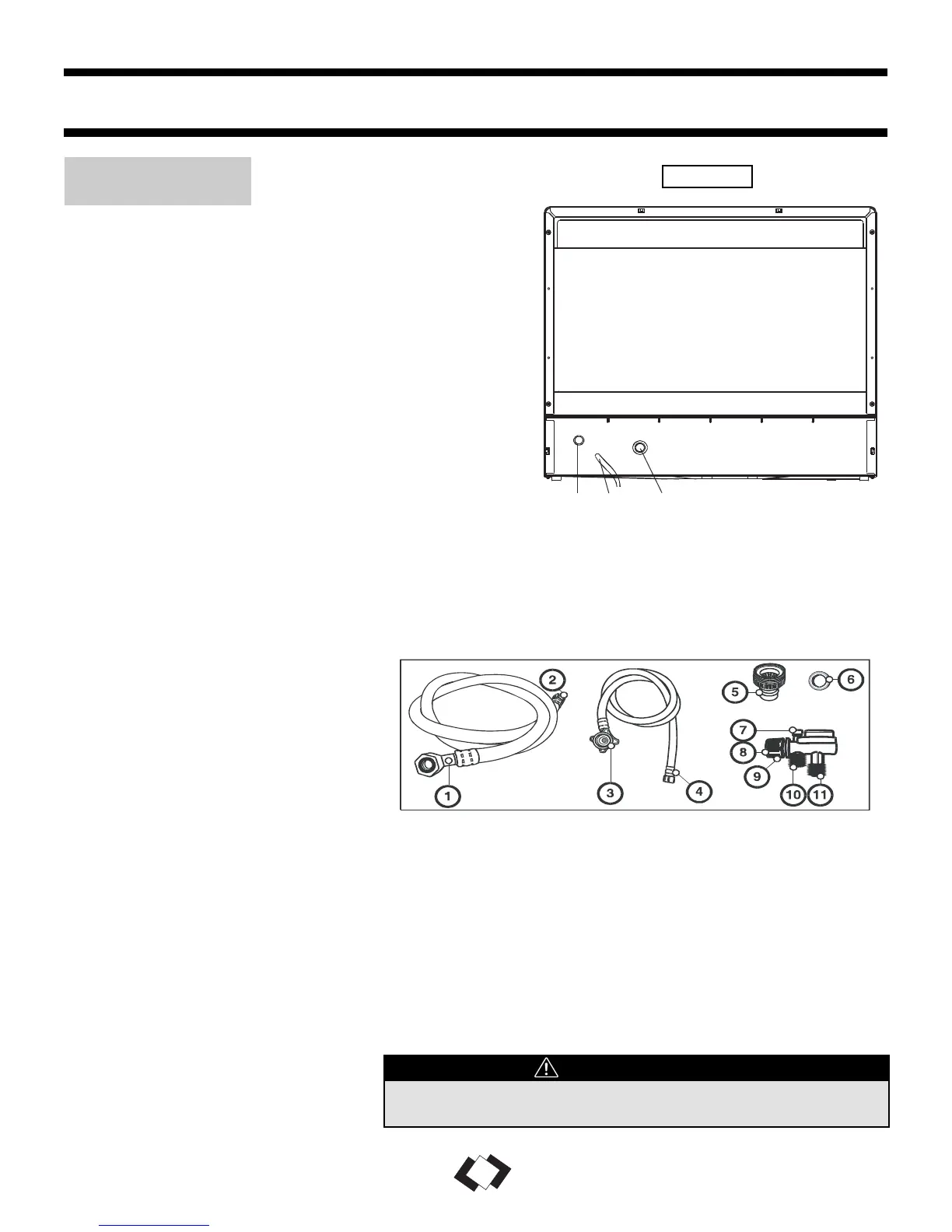

Back View
Rear of dishwasher:
1. Drain Port
2. Power Cord
3. Inlet Port
Your dishwasher comes equipped with a 'quick connect' assembly
(includes inlet and drain hose). The faucet adapter must be installed
on the faucet before you can connect the dishwasher. This adapter is
included inside your dishwasher. The faucet adapter is compatible
with faucets inclusive of either male (outside) or female (inside)
threaded faucet connections.
QUICK CONNECT
ASSEMBLY
Drain Hose
1. Drain Port Connection
2. Quick connect connection
Inlet Hose
3. Inlet port connection
4. Quick connect connection
Faucet Adapter
5. Faucet adapter
6. Faucet washer
Quick Connect
7. Pressure relief valve
8. Faucet adapter connection
9. Locking collar
10. Inlet hose connection
11. Drain hose connection
WARNING
In order to avoid water staying in the inlet hose, please turn
off the faucet after using.
WATER
CONNECTION
INSTALLATION INSTRUCTIONS
2
