Danby DFF1144W - Light Bulb Replacement

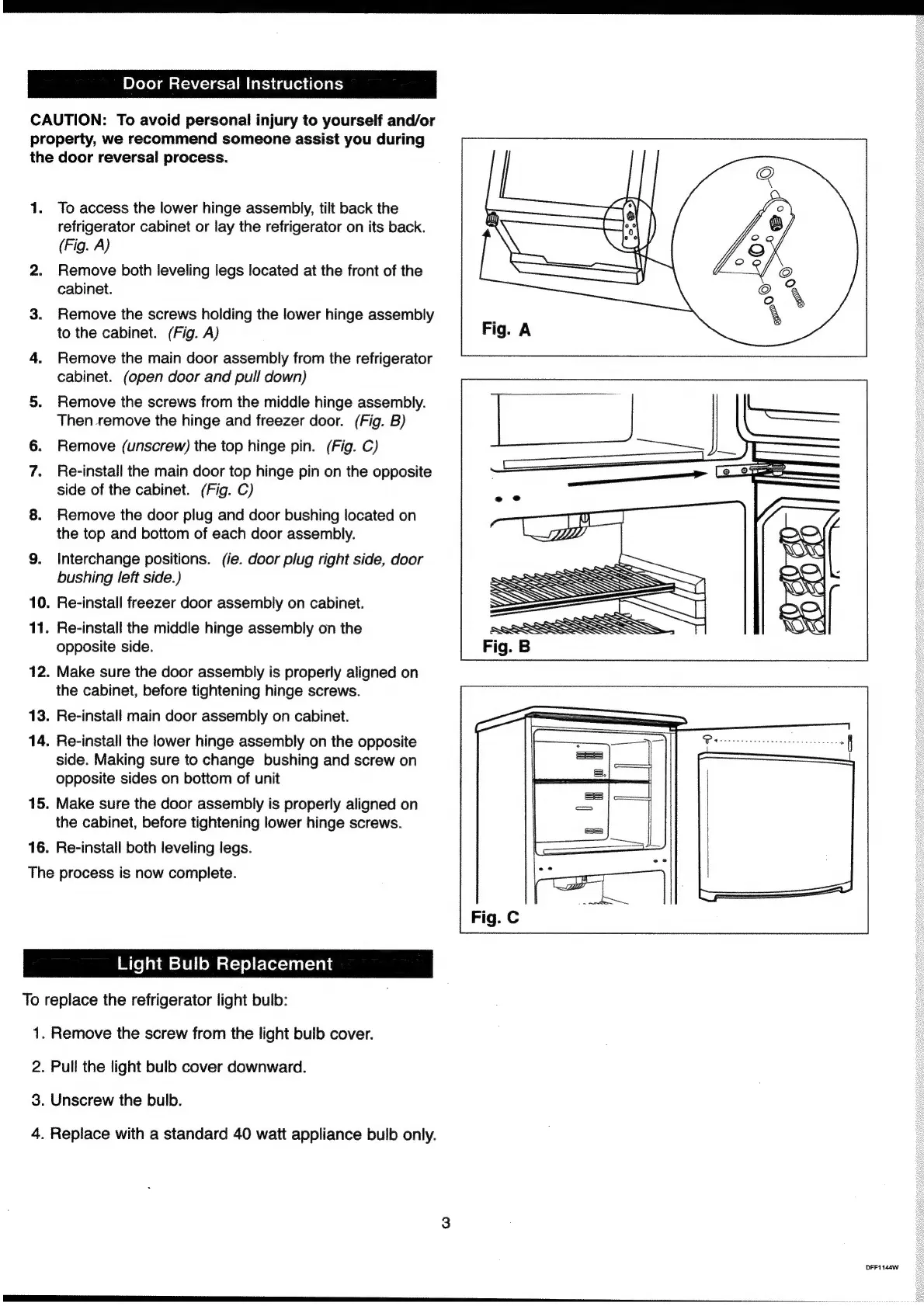

Door Reversal Instructions
CAUTION: To avoid personal injury to yourself and/or
property, we recommend someone assist you during
the door reversal process.
1. To access the lower hinge assembly, tilt back the
refrigerator cabinet or lay the refrigerator on its back.
(Fig. A)
2. Remove both leveling legs located at the front of the
cabinet.
3. Remove the screws holding the lower hinge assembly
to the cabinet. (Fig. A)
4. Remove the main door assembly from the refrigerator
cabinet. (open door and pull down)
5. Remove the screws from the middle hinge assembly.
Then remove the hinge and freezer door. (Fig. B)
Remove (unscrew) the top hinge pin. (Fig. C)
Re-install the main door top hinge pin on the opposite
side of the cabinet. (Fig. C)
8. Remove the door plug and door bushing located on
the top and bottom of each door assembly.
no
9. Interchange positions. (ie. door plug right side, door
bushing left side.)
10. Re-install freezer door assembly on cabinet.
11. Re-install the middle hinge assembly on the
opposite side.
12. Make sure the door assembly is properly aligned on
the cabinet, before tightening hinge screws.
13. Re-install main door assembly on cabinet.
14. Re-install the lower hinge assembly on the opposite
side. Making sure to change bushing and screw on
opposite sides on bottom of unit
15. Make sure the door assembly is properly aligned on
the cabinet, before tightening lower hinge screws.
16. Re-install both leveling legs.
The process is now complete.
Light Bulb Replacement
To replace the refrigerator light bulb:
1. Remove the screw from the light bulb cover.
2. Pull the light bulb cover downward.
3. Unscrew the bulb.
4. Replace with a standard 40 watt appliance bulb only.
DFF1144W
