Flashing fault symbol Cont.
The tray completes the cycle but no water comes in.
Remove the right side panel and check for 120V AC on the water pump
connection fig.5 during the fill cycle.

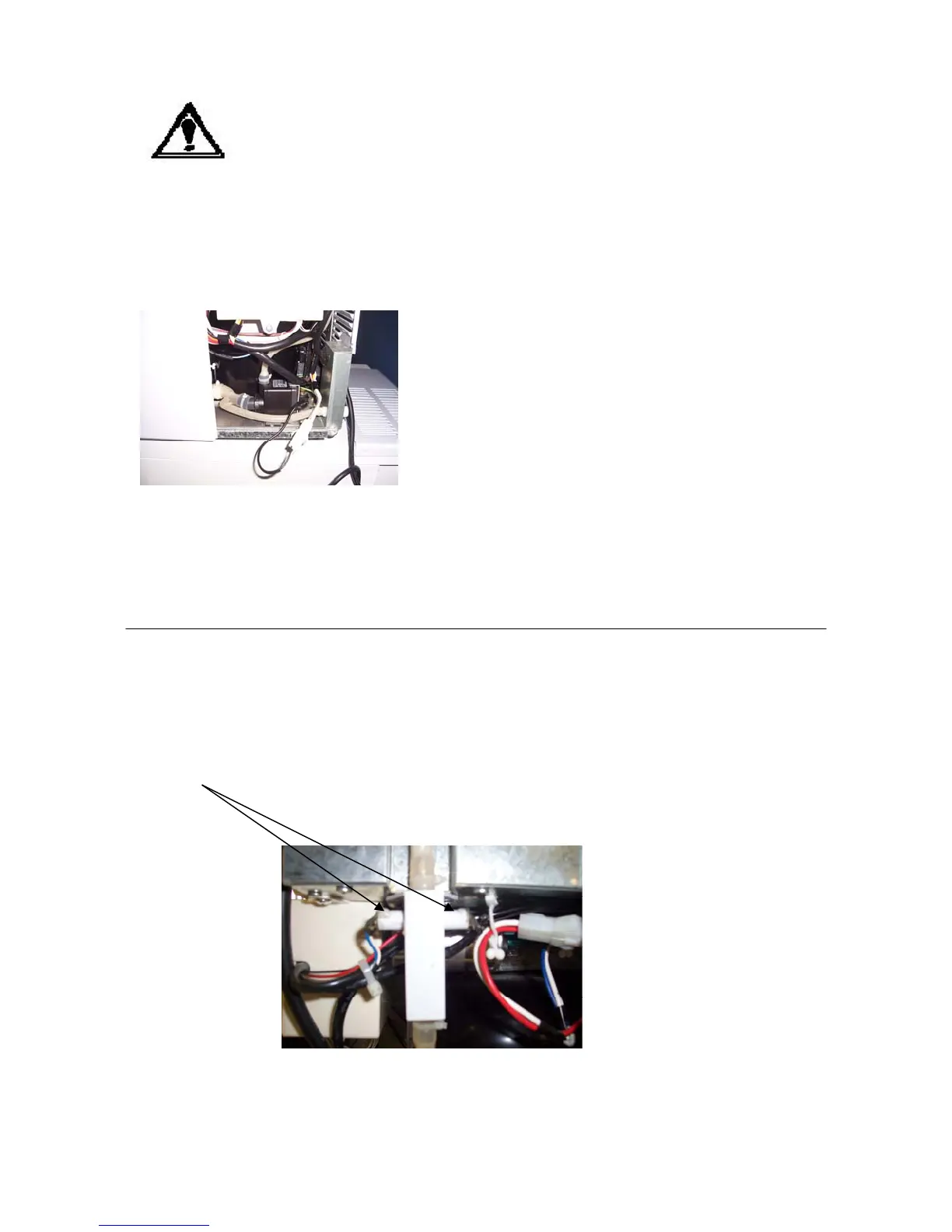

Fig.5
If voltage is present replace the water pump “DIM15.55”. If no voltage is
present then replace the circuit plate “DIM15.43”.
** Note due to changes in production the circuit plate is available in a 7
pin CN6 DIM15.43 or a 9 pin CN6 DIM15.43-1. Check CN6 on the
existing board to order proper replacement.
The Water comes in but stops before tray is full
First run the self clean mode with a 50/50 vinegar water mix, rinse out and
retry. If the problem persists replace the two photoelectric diodes
“DIM15.25” on the water flow sensor. Fig.6
Fig.6
