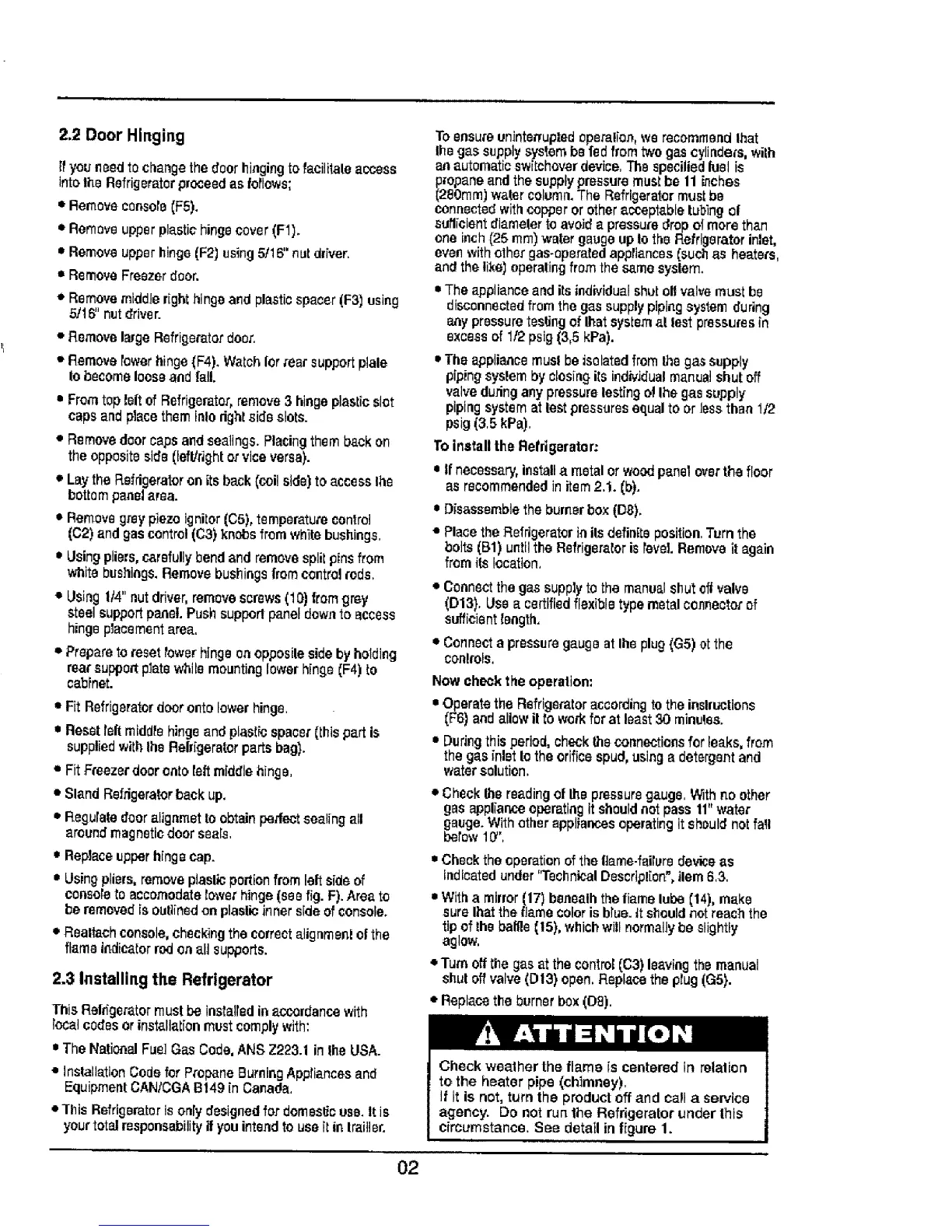

2.2 Door Hinging
_fyou needtochangethedoor hingingto facilitateaccess
intolhe Refrigeratorproceedasfotlows;
* Removeco.ore (F5).
e Removeupperplastichingecover(F1).
"Remove upperhinge(F2) using5/16"nutdriver.
• RemoveFreezerdoor.
• Removemiddle righthingeand plasticspacer(F3) using
5/16"nutdriver.
• RemovelargeRefrigeratordoor.
o Removerowerhinge(F4). Watchlot rein"supportplain
tobecomelooseandfall.
= Fromtopfelt ofRefrigerator,remove3 hingeplasUcslot
capsend placethem talerightsideslots.
e Removedoorcapsand sealings.Placingthem_ck on
the oppositeside(lefUrightofviceversa).
• Laythe Refrigeratoron its back(coil side)to accessIhe
bottompanelarea.
• RemovegreypJezoignitor (C5),temperaturecontrol
(C2)and gascontrol(C3)knobs fromwhitebushings.
• Usingpliers,carefullybendand removesplitpinsfrom
whitebushings.Removebushingsfromcontro_reds,
• Using1/4"nutdriver,removescrews(10) fromgrey
steelsupportpanel.Pushsuppedpaneldown to access
hingeplacementarea.
• Prepareto resetrowerhingeon opposilesideby holding
ra_ supportplatewhilemountinglowerhinge(F4)lo
cabinet.
• Fit Refrigeratordoorontolower hinge.
= Resetfelt middrehinge andplasticspacer(this_oartis
suppliedwithIheReltigeratorparts bag).
e FitFreezerdooronto[eftmiddlehinge,
• SlandRefrigeratorbackup.
• Regulatedooralignmetto obtain pe,'fectsealingall
aroundmagneticdoor sears.
• Replaceupperhingecap.
• Usingpliers,removeplaslic portionfrom left side of
consoreto accomodateIc_verhinge(seefig. F).Areato
beremoved[soutlinedon pleslJcinner sideofconsole.
• Real_ch console,checkingthe correctalignmenlof the
flamei_icalor rodon all supports.
2.3 Installing the Refrigerator
ThisRelrigeratormustbe instaltedinaccordancewith
totalcodesorinstallaUonmustcomplywith:
• The NationalFuel Gas Code,ANSZ223.1inIhe USA.
• InstallationCodefor PrOl:_neBurningApptiancesand
EquipmentCANiCGABI49 [n Canada.
• This Refrigeratoris enry designedfor domesticuse.It is
yourtotalresponsabilityif you intendto use[tin trailler.
Toensureunintenupledoper!!ion,we recommendIhat
Ihegas supplysystem beled fromtwogascylinders,with
an automaticsw[tchoverdevice,Thespeciliedluel is
propaneandthe supplypressuremustbe 11inches
(280ram)watercolumn.The Refrigeratormuslbe
connectedwithcopperorotheracceptabletubingof
sufficientdiameterto avoida pressuredropof morethan
one inch(25 ram)watergaugeup totheRefrigeratorinlet,
evenwithethergas-operatedappriances(suchas heaters,
andthe like)operatingfrom thesamesystem.
• The applianceanditsindividualshutoilvalvemust be
disconnectedfrom thegassupplypipingsystemduring
anypressuretestingof Ihat systemat lest pressures[n
excessof 1/2psig (3,5 kPa).
• Theappliancemusl be isolatedfrom_e gassupply
pipingsyslem byclosingils individualmanualshut off
valveduringany pressurelest[ngof Ihegas supply
pipingsystemattestpressuresequalto or lessthan 1/2
psig(3.5 kPa).
Toinstallthe Refrigerator:
• If necessary,installa metalor woodpaneloverthe floor
as recommendedin item2.!. (b).
• Disassemblethe burnerbox (Dg).
• Placethe Refrigeratorin ils definiteposition.Turn the
bolts(B1) untilthe Refrigeraloris revel.Removeitagain
from its location,
• Connectthe gassupplyto the manualshut eftvalve
(DI3). Usea certifiedflexibletype metalconnect_ of
sufficientlength.
• Connecta pressuregaugeat Ihe plug{G5) etthe
conlrols,
Now checkthe operation:
• Operatethe Refrigeratoraccordingto the inslructions
(F6)and allowitto workforat least30 minu_es.
• Duringthis period, checkthe connectionsfor leaks,from
thegasinlet tothe orificespud,usinga detergentand
watersolution.
• Check_e readingof Iha pressuregauge. Withno other
gasappl[ar_ceoperatingit shouldnot passt1" water
gauge.Withotherappliancesoperatingit shouldnotfail
berow10",
• Check theoperationof theflame-faireredeviceas
indicatedunder"reehnicalDescrip
