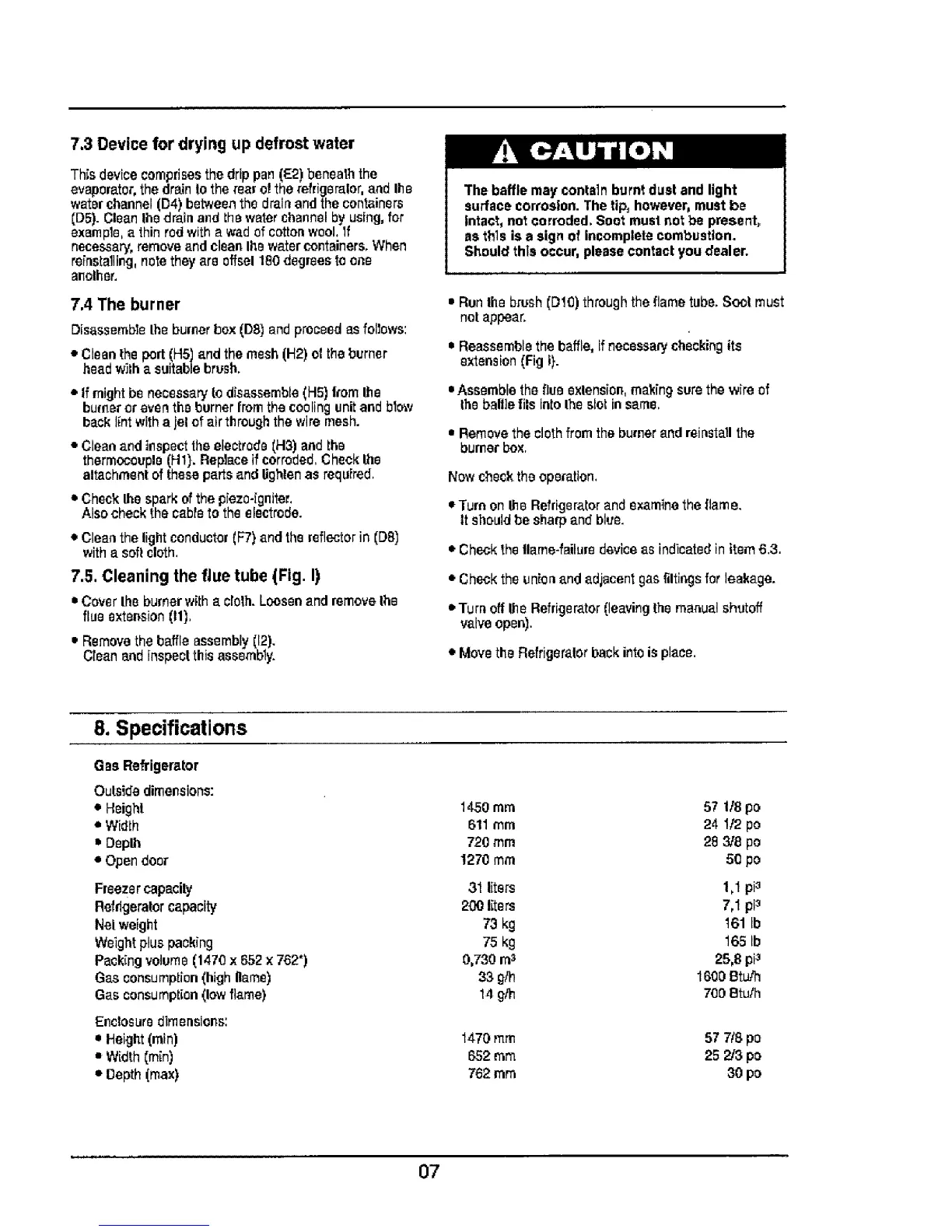

7.3 Device for drying up defrost water
This device comprisesthe drippan (F_2.)beneath the
evaporator, the drain to the rear o! the _efrigeralor, and Iha
water channel (D4) between the drain and the containers
[g5). Clean Ihe drain and the water channel by using, for
example, a thin rod with a wad ofcotton wool, If
necessary, remove and clean Ihe water containers_When
reFastalling,note they are offsel 180 degrees to one
anolher.
7.4 The burner
Disassembletheburnerbox (De)and proceedasfollows:
• Cleanthe port(H5) and the mesh(H2) ofthe burner
headwitha suitablebrvsh.
• If mightbe necessaryto disassemble(H5)fromIhe
burneror even the burnerfromthecoolingunitand blow
backlintwithajel of airthroughthe wire mesh.
• Cleanand inspectthe electrode(H3)and Ihe
thermocouple(H1).Replaceif corroded,CheckIhe
altachmentofthesepartsend lighlenas required,
• Check Ihe sparkofthe piezo-[gniter,
Alsocheck the cabteto the electrode.
• Cleanthe light conductor(FT)andthe reflectorin (De)
witha sofl cloth,
7,5, Cleaning the flue tube (Fig. I)
•' Coverthe burnerwilh a croth.Loosenand removethe
flueextension(11),
• Removethe baffle assembly(12).
Cteanand inspectthis assemb¥
The baffle may conta]n burnt dust and light
surface corrosion. The tip, however, must be
intact, not corroded. Soot musl not be present,
as tf_ls is a sign of incomplete combustion.
Should this occur, please contact you dealer.
• Runlhe brash (D1O)throughthe flametube. Sootmust
not appear_
= Reassemblethe baffle,if necessarycheckingits
extension(Fig i}.
• Assemblethe flueextension,me'Kingsure the wire of
the baflieIlls intothe slotinsame,
• Removethe clothfrom the burnerendreinstallthe
burner box,
Nowchecktheoperation,
• TurnonIhe Refrigeratorand examinethe flame.
It shouldbe sharpand blue.
• Checkthe tlamefailure deviceas indicatedinitem6.3.
• Checkthe uneonandadjacentgas filti_s for leakage.
• Tura offllle Refrigerator(leavingthe manualshutoff
valveopen),
• Movethe Refrigera!orbackinto is place,
8. Specifications
Gas Refrigerator
Outsidedimensions:
• Height 1450mm 57 1t8po
• Width 611mm 24 1t2po
• Deplh 720mm 28 3/8 po
• Opendoor 1270 mm 50 po
Reezer capacily 31 I[tera 1,1pi_
Refrigeratorcapacity 200 liters 7,1pi3
Netweight 73 kg t61 Ib
Weightpluspacking 75 kg 165 Ib
Packingvolume(1470x 652x 762*) 0,730m_ 25,8pi_
Gasconsumpl[on(highflame) 33 £_ 1600Btuih
GasconsumpI_on(lowfl_me) 14gih 700Btuih
Enclosuredimeasions:
'=Height(rain) 1470mm 57 7/8po
• Width(rain) 652 mm 25 2/3po
• Depth(max) 762 mm 30 po
