Technical specifications

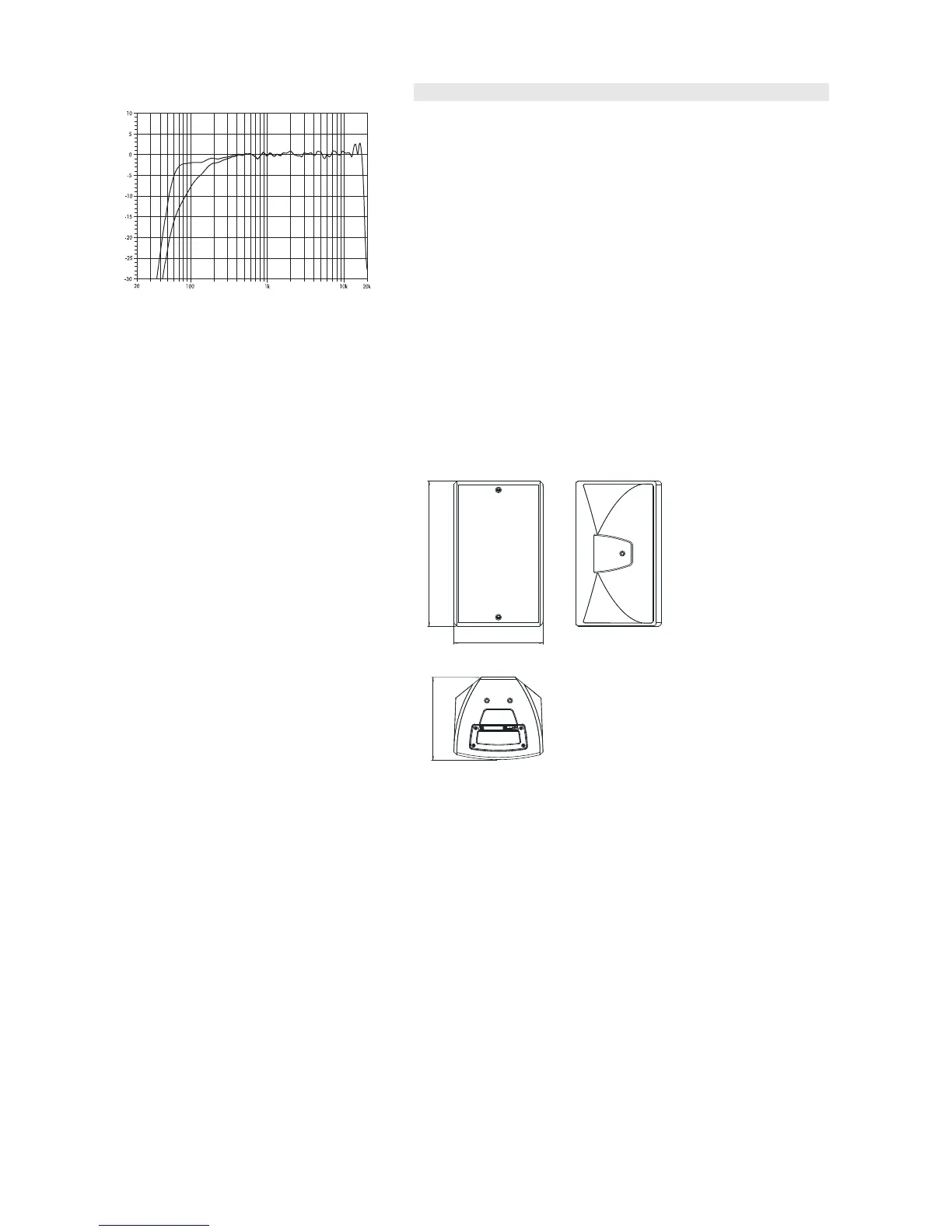

Fig. 11: E8 frequency response, standard
and CUT settings
E8 system data
Frequency response (–5 dB standard).................................................62 Hz ... 18 kHz
Frequency response (–5 dB CUT mode)...........................................120 Hz ... 18 kHz
Max. sound pressure (1 m, free field) E8 with D12 .........................................129 dB
Max. sound pressure (1 m, free field) E8 with D6 or E-PAC .........................126 dB
(SPLmax peak, pink noise test signal with crest factor of 4)
Input level (100 dB-SPL/1 m)...............................................................................–13 dBu
E8 loudspeaker
Nominal impedance...............................................................................................16 ohms
Power handling capacity (RMS / peak 10 ms).........................................150/800 W
Nominal dispersion angle (hor. x vert.)...........................................................90° x 50°
Components..............................................................8“ driver with neodymium magnet
..............coaxial 1” exit compression driver with 1.75“ coil and rotatable CD horn
....................................................................................................Passive crossover network
Connections................................................................................................................2 x EP5
......................................................................................Optional and SC option: 2 x NL4
.............WR option: Fixed cable 5 m (16.4 ft) (H-07-RN-F 2 x 2.5 mm
2
/AWG 13)
Pin assignments.......................................................................................................EP5: 1/2
.............................................................................................................................NL4: 1+/1–
.............................................................................................Fixed cable: Brown + / Blue –
Weight..........................................................................................................7.3 kg (16.1 lb)
390 [15.4"]
232 [9.1"]
223 [8.8"]
Fig. 12: E8 cabinet dimensions in mm [inch]
