2.4. Technical specifications
V-SUB system data
Frequency response (–5 dB standard) 37 Hz - 115 Hz
Frequency response (–5 dB 100 Hz mode) 37 Hz - 95 Hz
Max. sound pressure (1 m, free field)
with D12/D20/30D 133 dB
with D80 137 dB
(SPLmax peak, pink noise test signal with crest factor of 4)
V-SUB loudspeaker
Nominal impedance 8 ohms
Power handling capacity (RMS/peak 10 ms) 800/3200 W
Components 1 x 18“ driver
1 x 12“ driver
Connections 2 x NL4 M or NLT4 F/M
optional 2 x EP5
Pin assignment NL4 M and NLT4 F/M: 2+ / 2–
EP5: 3: + / 4: –
Weight 64 kg (141 lb)

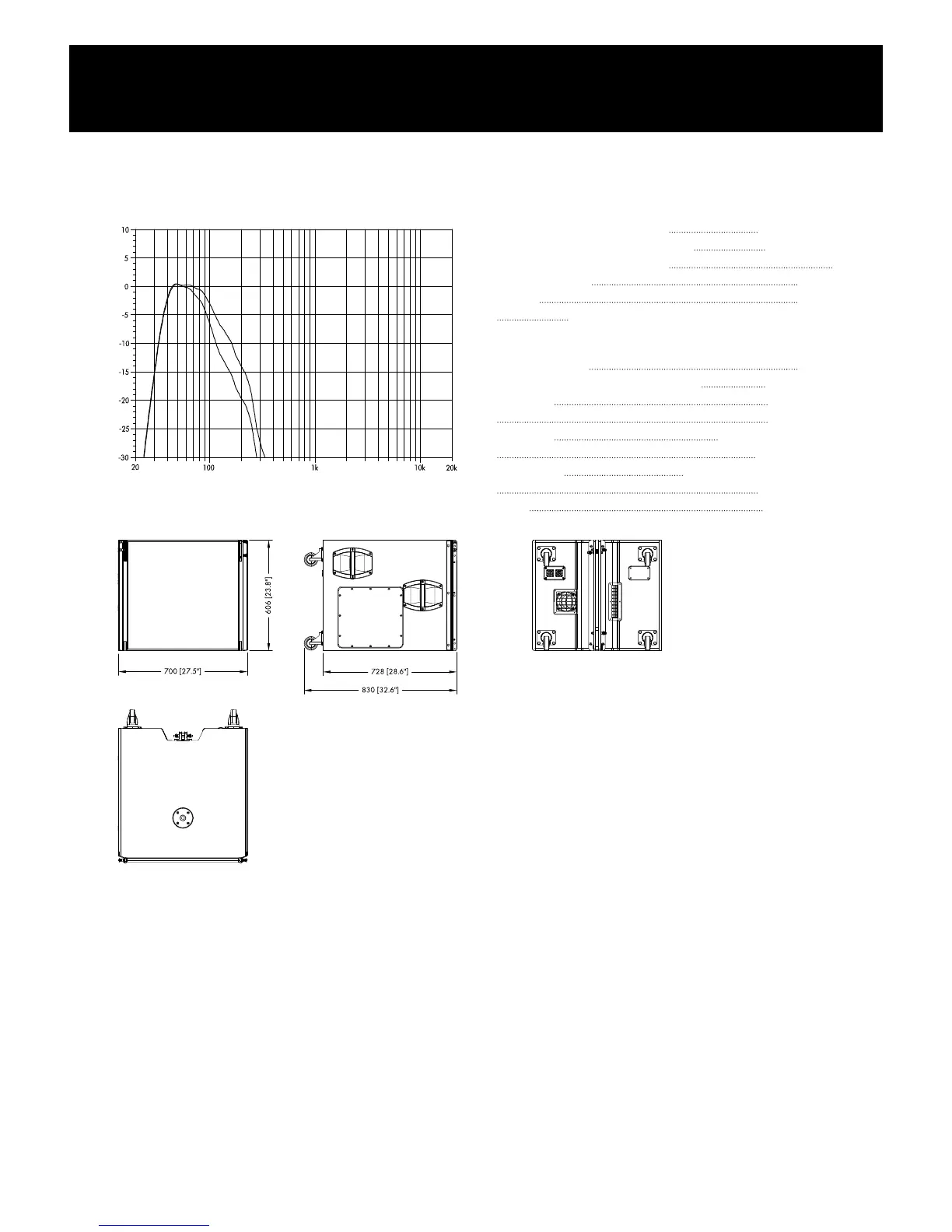

Fig. 3: V-SUB cabinet dimensions in mm [inch]
Fig. 2: V-SUB frequency response, standard and 100 Hz mode
