Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
28
Locomotive/Vehicle function decoder from firmware version 3.12

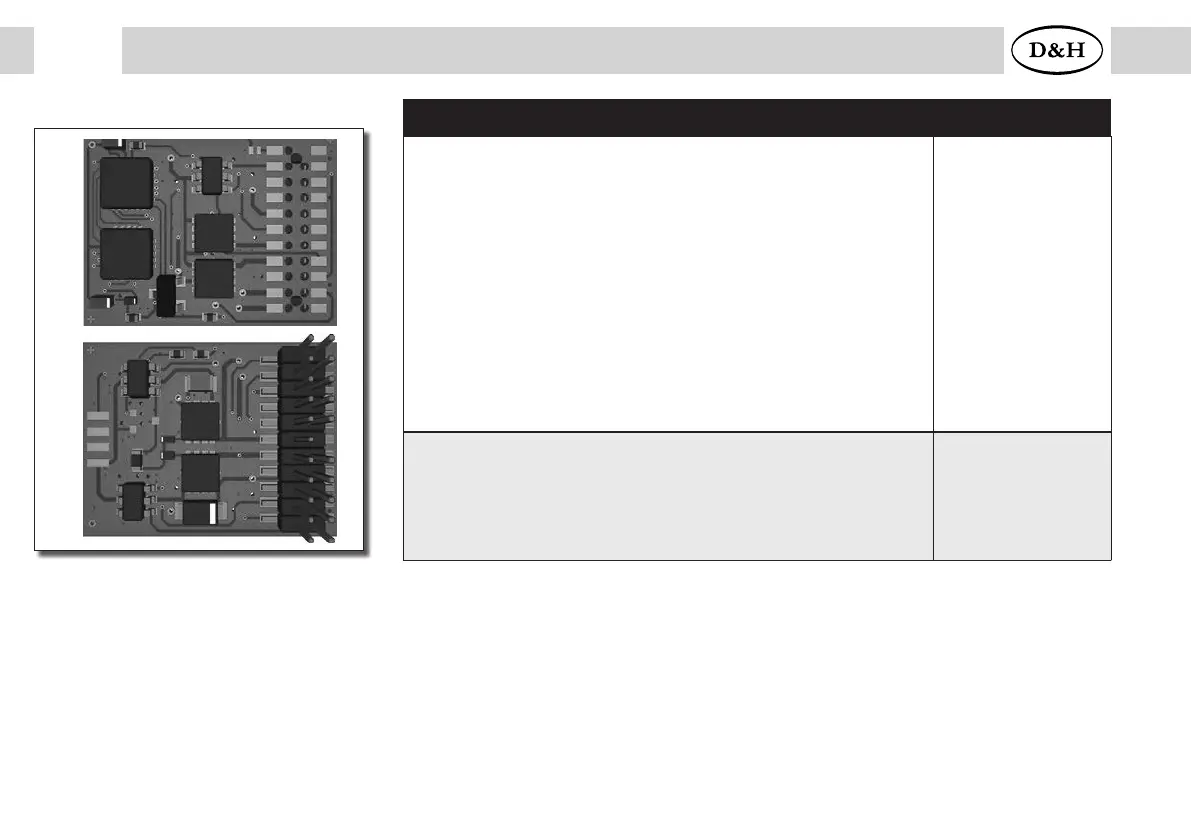

Specifications DH22B
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6, AUX7
Function output: AUX8
With SUSI interface
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
each 1,0 A
unamplified *)
X
Connecting options
Without connection wire
With connection cable for interface per NEM652
With connection wires
22 pin connector for direct plugging (PluX22)
DH22B-0
DH22B-2
DH22B-3
DH22B-4
*) Unamplified function outputs: See supplement 3.
DH22B
ZVS
ZCLK
ZDAT
GND
