1 – HYDRAULIC OIL TANK FILLING CAP.
Complete change lt. 20,7. For the type of fluid, follow
the indications in the lubricant table.
Replace the oil after the first 200 HOURS of operation
and every 1000 HOURS thereafter or once a year.

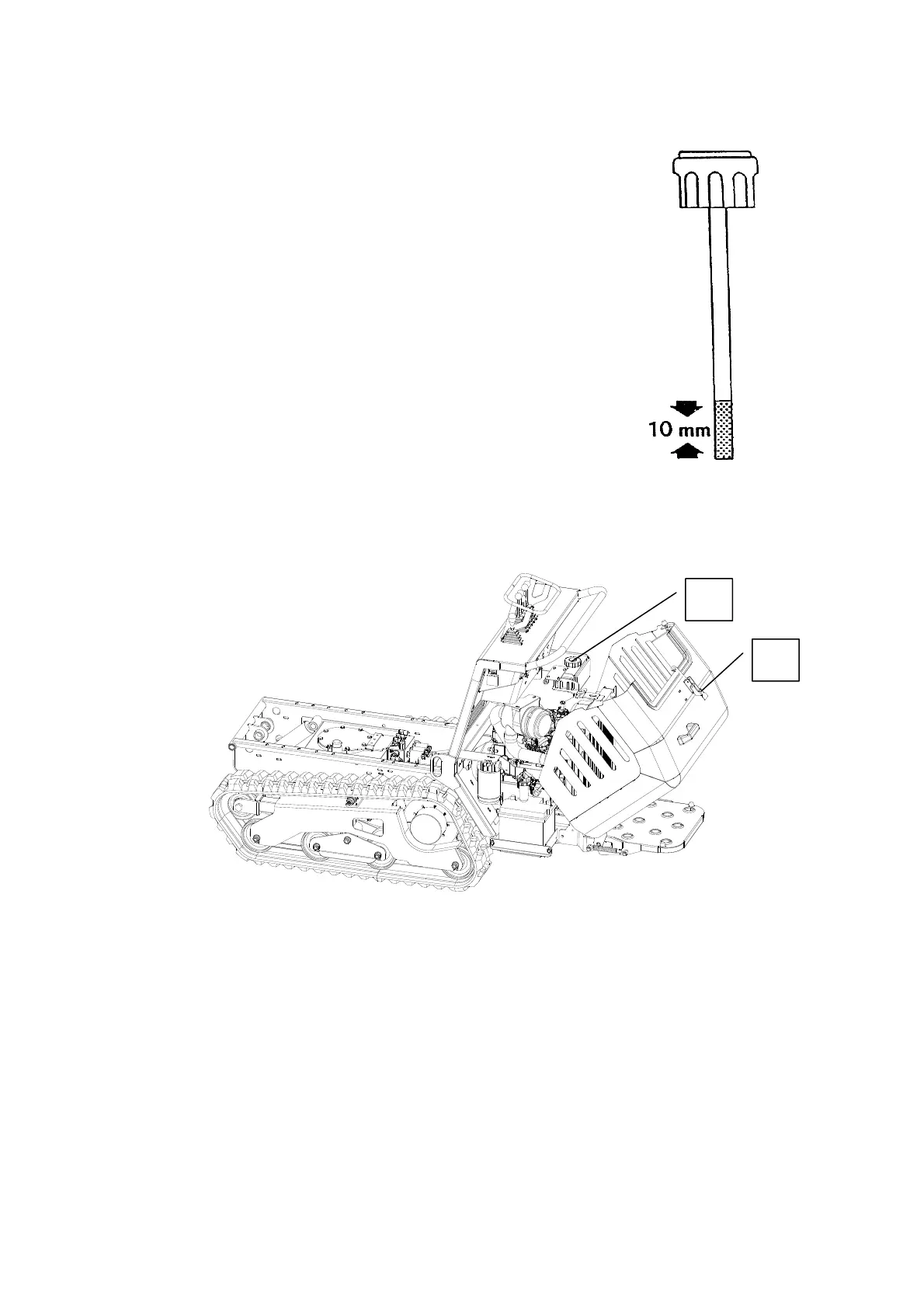

Before refilling the oil, check that the dipstick screwed
in the plug stays immersed by about 10 mm. This
check must be carried out when the body (and the
shovel) are in lowered position (cylinders closed).
Never overfill because the tank serves as an oil
expansion tank during machine operation.
2 – FUEL FILLER CAP
Open the engine cover moving the locking device A and fill the fuel through the plug B.
For the refuelling it is recommended to fill the tank until ¾ to the overflow in order to leave
room (about ¼) for fuel expansion inside the tank.
WARNING! : ENGINE REQUIRES DIESEL
TANK CAPACITY: 8,5 lt.
