3 – HYDRAULIC OIL RETURN FILTER

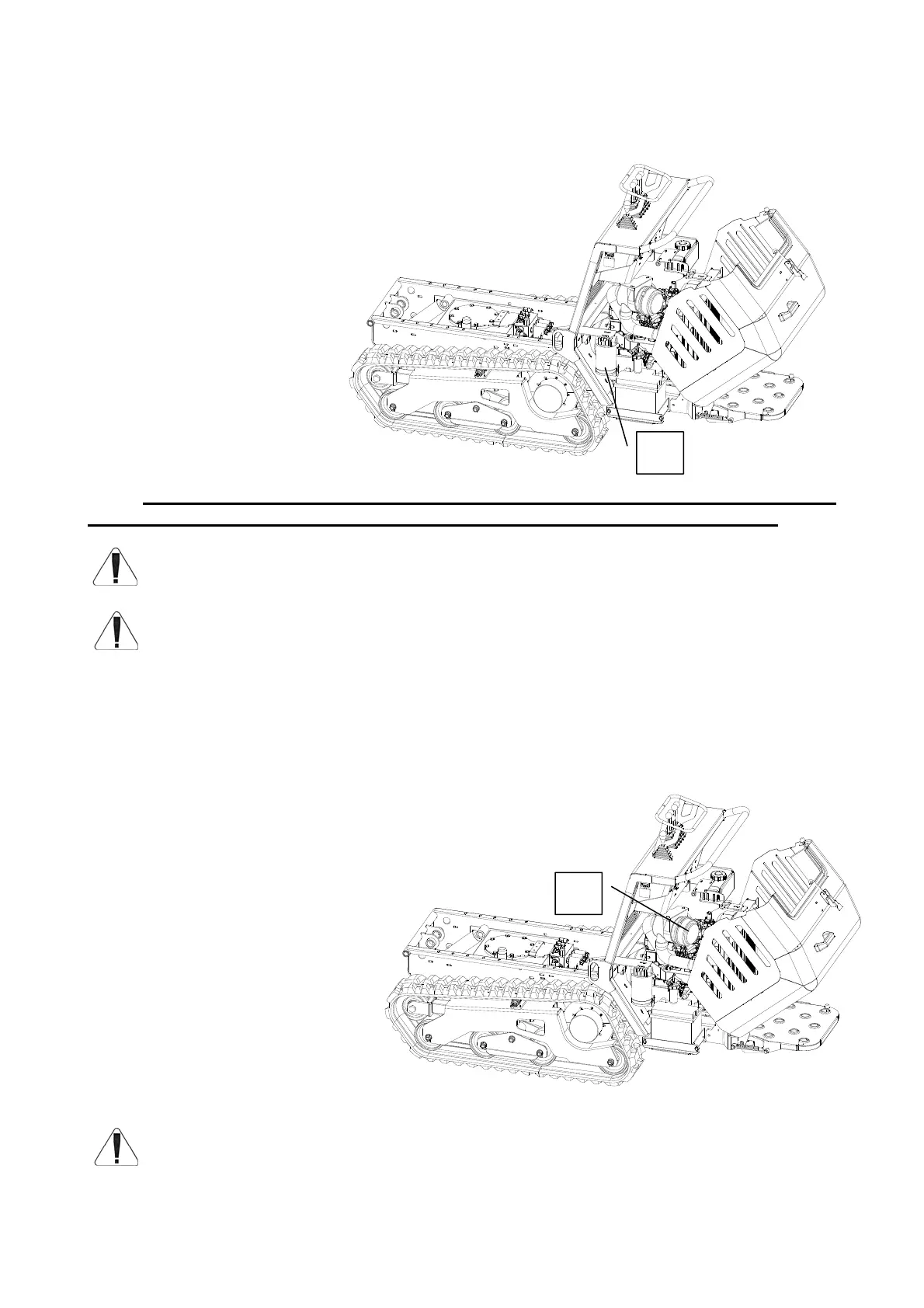

The return filter “C” is located under the engine bonnet.
Capacity: 50 l/min
Filtering level: 10 micron
Replace the filter after the
first 50 HOURS of operation
and every 500 HOURS
thereafter.
For the substitution,
unscrew the filter “C” from
the support and change with
a new one with the same
features.
N.B.: the filter change operation must be performed without allowing any of the oil
that leaks out during emptying and replacement to seep into the environment.
IT IS BEST TO PERFORM THESE OPERATIONS OVER AN IMPERMEABLE OR
PLASTIC CLOTH.
THE OIL MUST BE DISPOSED OF THROUGH AN AUTHORIZED COMPANY
4 – AIR FILTER
The air filter “D” is located under the engine bonnet.
To clean the cartridge, it is sufficient to remove the top cover, remove the cartridge and
clean with compressed air. Do not use solvents, brushes or rags to prevent damage to the
cartridge.
The air filter should be replaced
with another one having the
same characteristics.
The filter should be cleaned
every 50 hours of operation and
the replacement must be done
every 200 hours.
THE AIR FILTER CLEANING OPERATION MUST BE DONE ONLY WITH AIR
PRESSURE, KEEPING PROPER DISTANCE FROM THE CARTRIDGE AS THE
AIR JET MAY DAMAGE IT.
C
D
