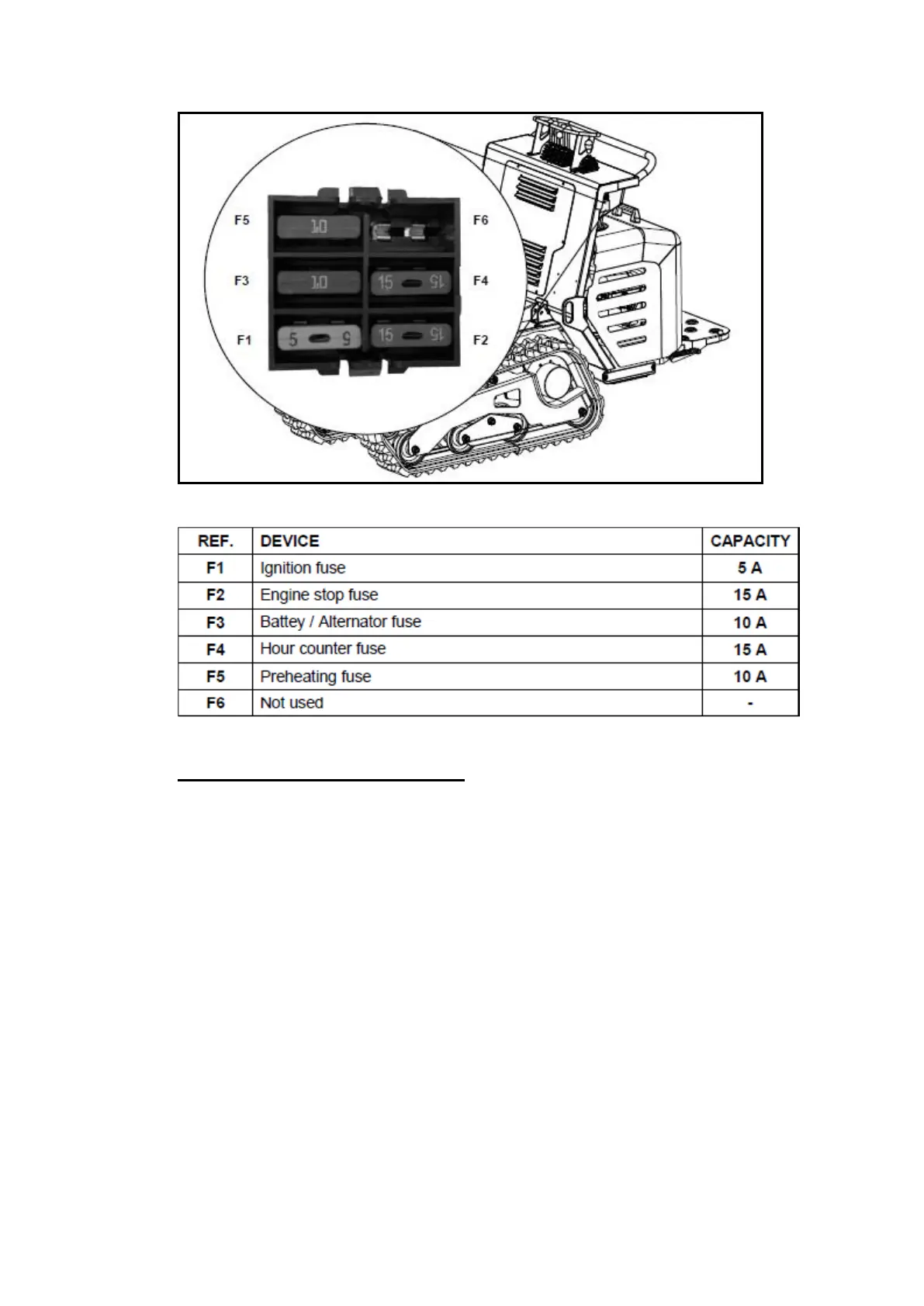

FIGURE 5.2 - FUSE ALLOCATION
TABLE 5.1 - FUSE REFERENCES
5.4 HYDRAULIC OIL HEADER TANK
Plug filled with hydraulic oil, complete change is 20.7LT.
For the type of oil see the appropriate lubrication table.
Change the oil after the first 200 hours, and afterwards every 1000
hours or once a year.
To fill up or repair, check that the dipstick in the screwed plug stays
immersed by about 10 mm. A check must be carried out when the
equipment is switched off (Cylinders Closed).
Do not overfill as the tank acts as a container for oil expansion when
the machine is in use.
