5.5 TRANSVERSE CONTROL LEVER STROKE ADJUSTMENT

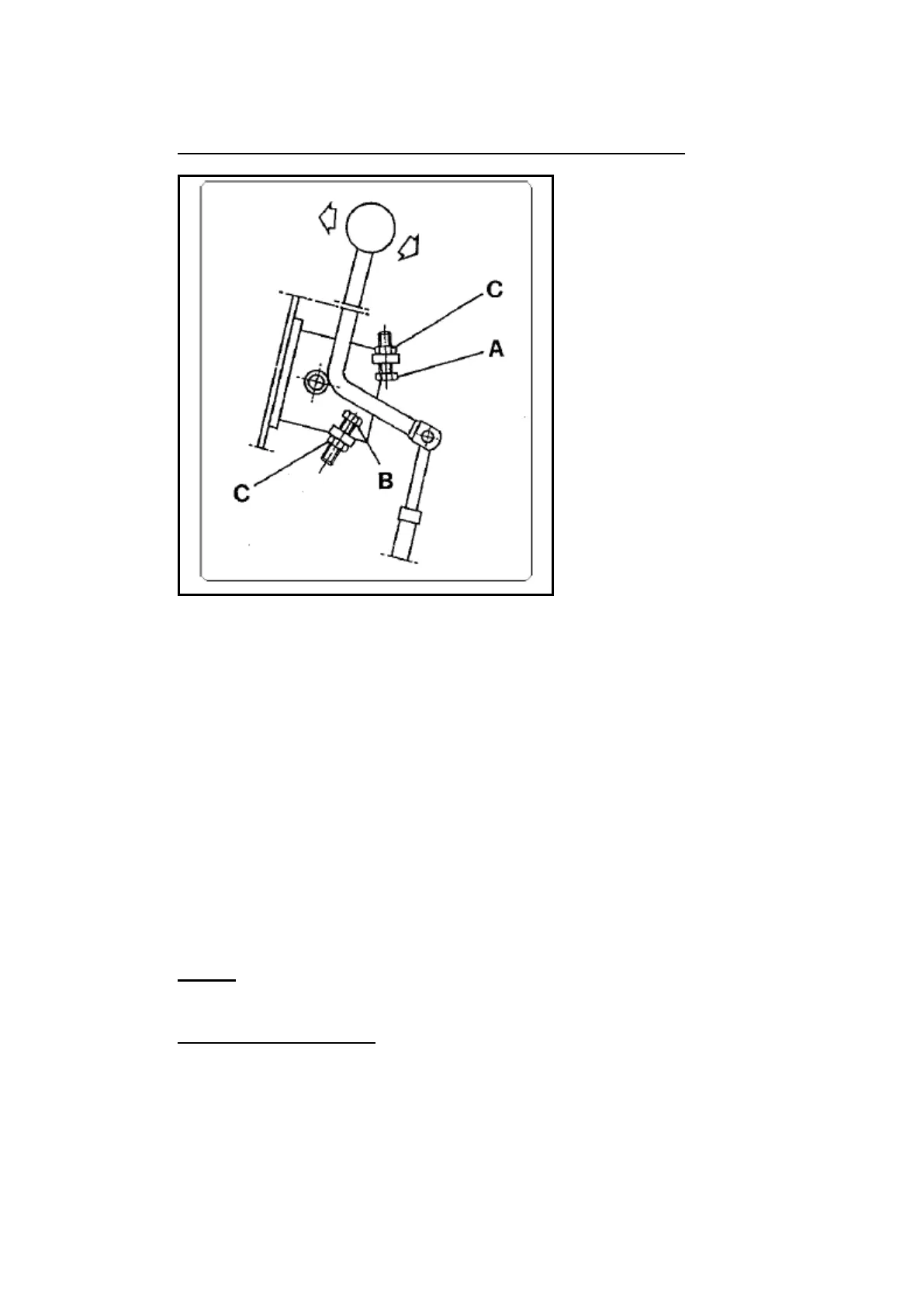

FIGURE 5.3 – TRANSVERSE CONTROL LEVER
A – FORWARD MOVEMENT STROKE SET SCREW
B – REVERSE MOVEMENT STROKE SET SCREW
If necessary, machine speed can be adjusted, either forward or
reverse, by means of the set screws “A” or “B”; shorter lever stroke
corresponds to lower speed.
To make adjustment, simply loosen the locknut “C” of the screw which
corresponds to the movement variation required and tighten or loosen
screw “A” or “B” just enough to achieve desired speed.
Subsequently fasten nut “C” in the new position.
Repeat the operation until the desired speed has been achieved.
NOTE: ALWAYS MAKE SURE THAT THE STROKE STOP IS
AFFECTED BY THE SET SCREW AND NOT BY PULL CABLE.
5.6 TRACK ADJUSTMENT
With use, the tracks tend to loosen.
When operating with loose tracks, they tend to slip over the driving
wheel teeth causing it to jump its housing or to work in precarious
fashion, damaging and causing wear to the housing.
Never allow this situation to occur. To restore correct track tightness,
proceed as follows:
