The oil level control, top-up, filling or emptying must be done with the
machine in a level and horizontal position and the engine must be off.
Place a container of adequate capacity under the drain plug to collect
the oil.
DO NOT DISPOSE OF THE USED OIL IN THE ENVIRONMENT.
5.8 HYDRAULIC OIL RETURN FILTER REPLACEMENT
The return filter “C” is located under the engine bonnet (See Figure
5.5).

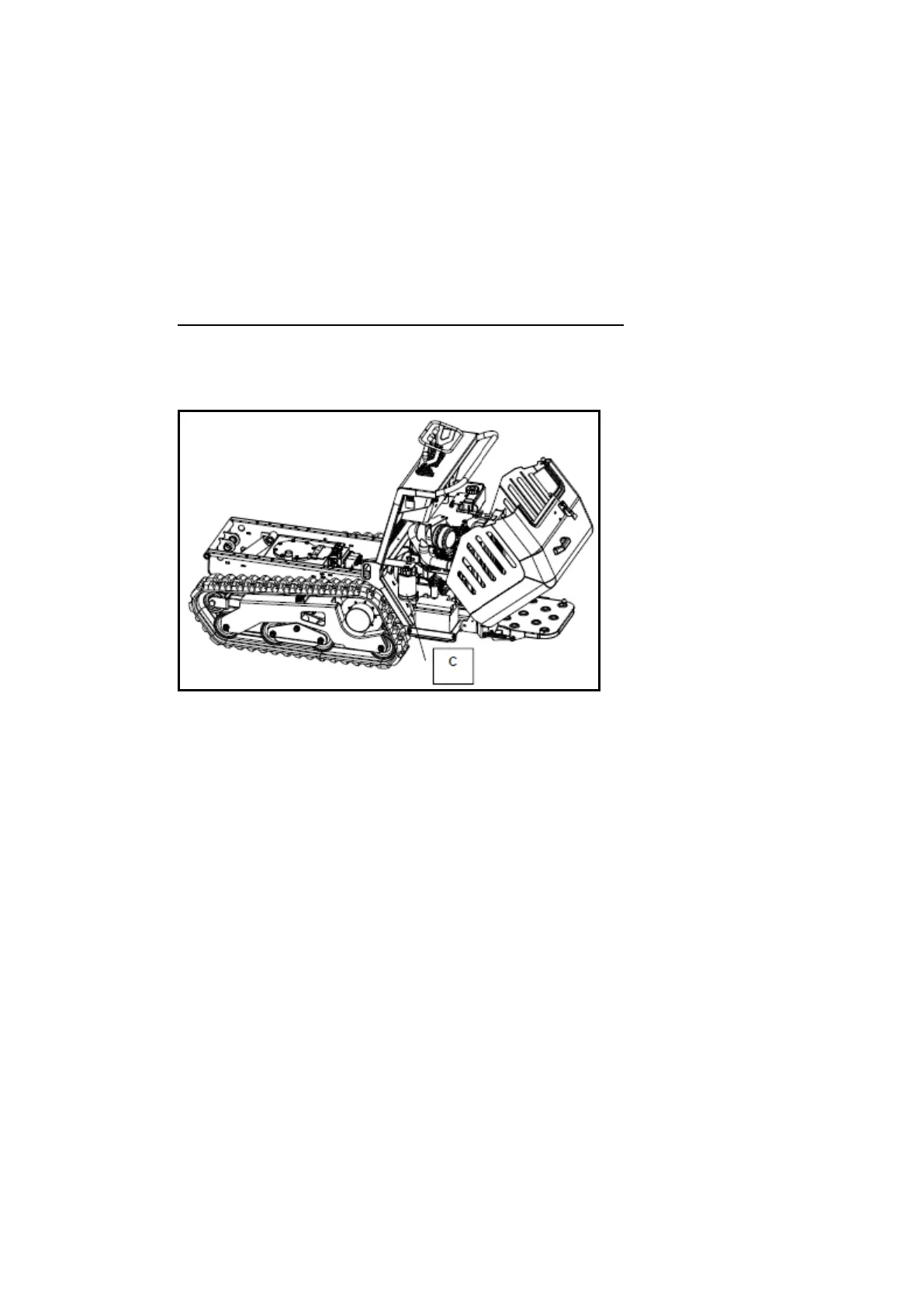

FIGURE 5.6 – HYDRAULIC OIL FILTER
Replacement of the “C" filter, is as follows:
1) The filter must be replaced after the 1st 50 hours of work and
then every 500 hours.
2) Unscrew the “C" filter and replace it with another filter having the
same features. (Filtering grade 60 microns, nominal delivery 25
Lt/min.)
The importance of ensuring the maximum attention to cleanliness
cannot be over-emphasised when dealing with any servicing of the
hydraulic system, from re-filling or topping-up, to the fitting of
protective ends to pipes or pipe joint ends.
