VLT
®
5000 SyncPos option
MG.10.J4.02 – VLT is a registered Danfoss trade mark
54

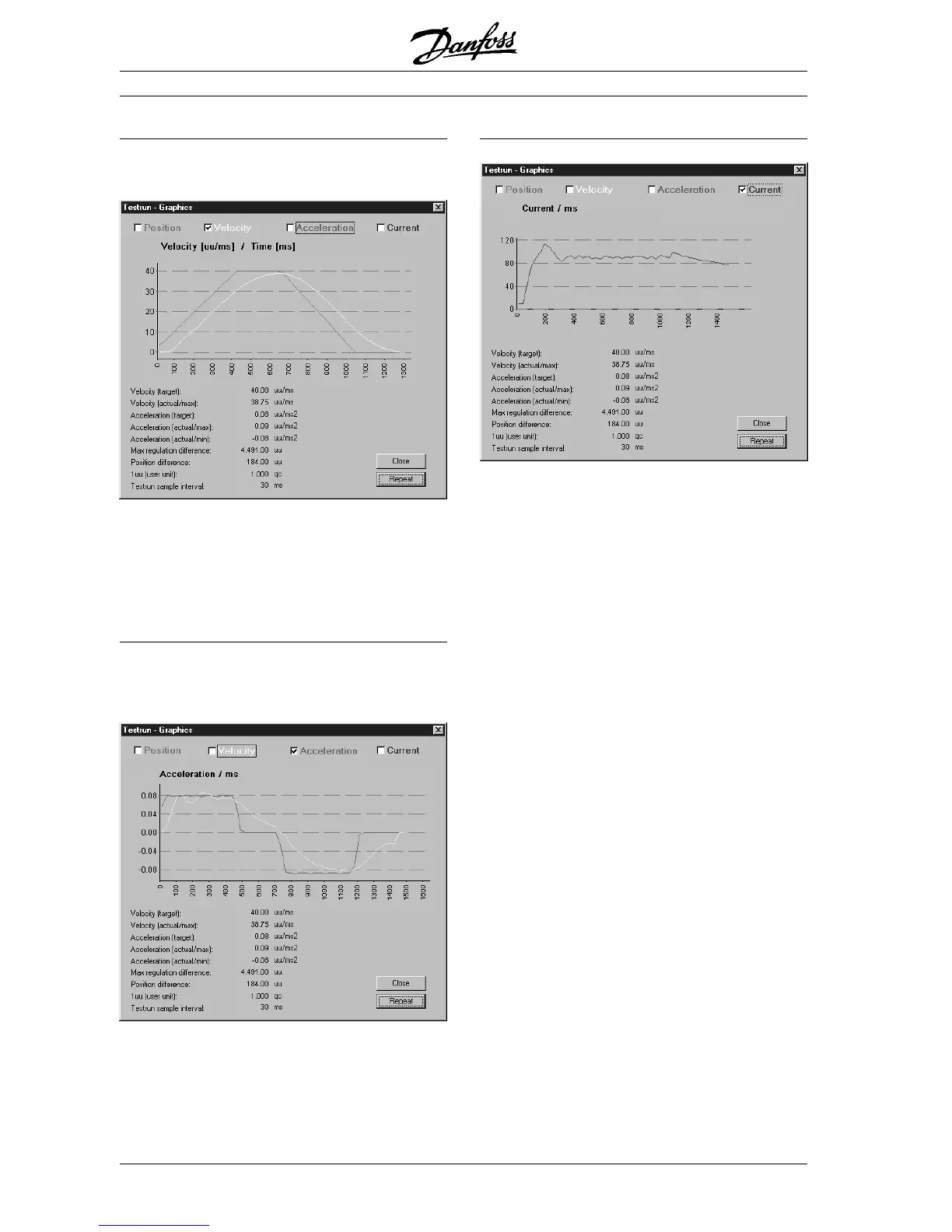

"TESTRUN" velocity graph
The yellow (light) curve shows the achieved velocity
path, the brown (dark) curve shows the desired
trapeze-shaped set curve.
In special instances the trapeze-shaped velocity
curve can degenerate to a triangle shape. This
effect occurs when the positioning distance is too
short to achieve the maximum velocity at the
desired acceleration.
"TESTRUN" acceleration graph
The light green curve shows the actual path of
acceleration, the dark curve shows the desired
trapeze-shaped set curve during acceleration and
deceleration.
"TESTRUN" current graph
The blue line shows the actual motor current.
PC Software Interface
