Instructions Unit installation
2.2 Electrical installation
7
VIEWA402
Here is how
1. Connect power cable.
2. Plug in communication cable between com-
munication module and Air unit.
The cable cannot be fitted wrongly.
Important
If the communication module is mounted in
different floor than wireless remote, please check
if the deck construction contains elements that
will reduce transmission/receiving strength (i.e.
aluminum foil clad insulation material, or metal
grid, if deck is cast in concrete). If any such distur-
bances are present, the communication module
should be placed in same floor as wireless remote
control.
If an ethernet connection is already available in
the vicinity of the Air unit, place the communi-
cation module close to this, to allow for future
connection to PC.

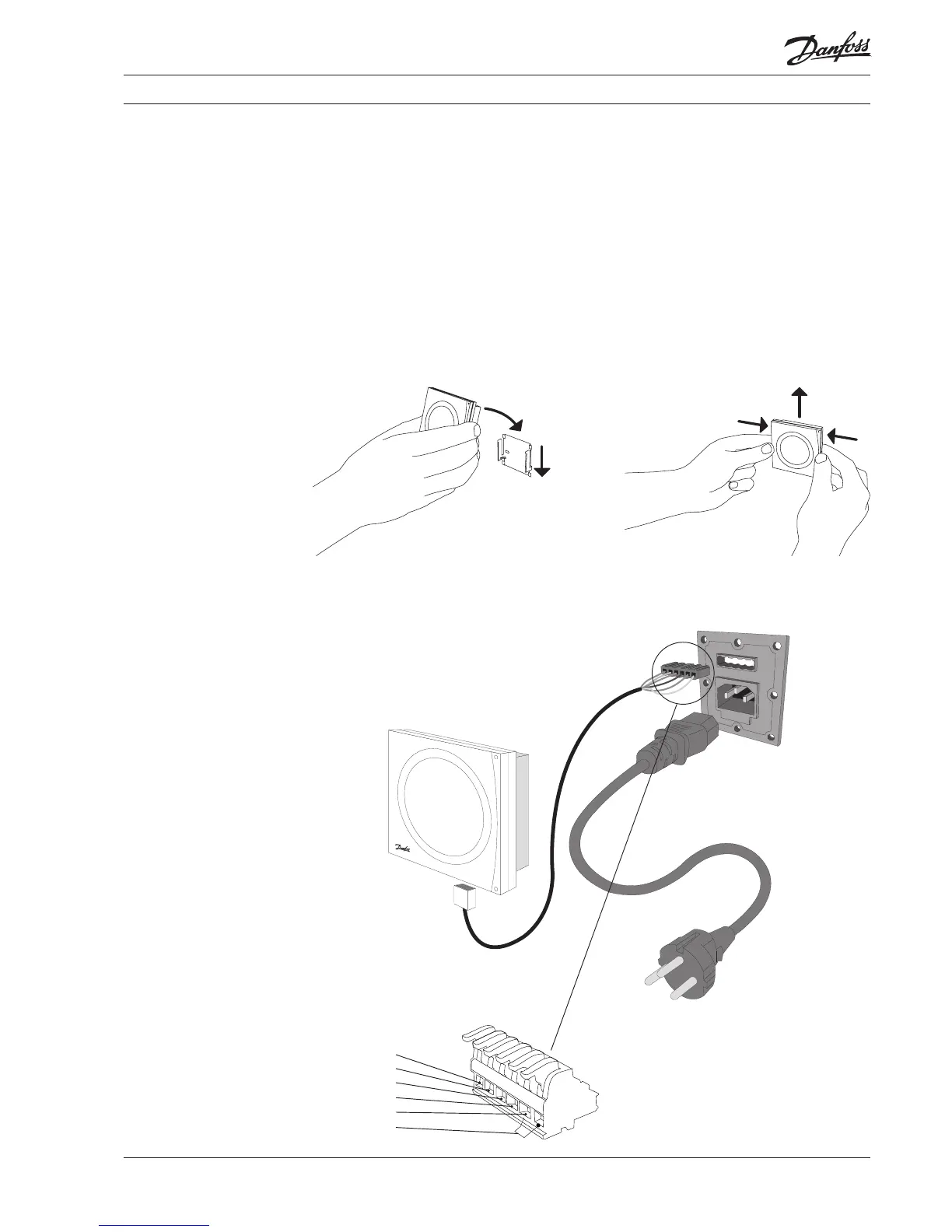

Mounting CCM module in wall bracket
2
1
1. Hook the CCM on the wall bracket.
2. Press downwards to click the CCM into place.
Dismantling CCM module from wall bracket
2
1
1
1. Press in the two latches on the side.
2. Pull the CCM upwards.
NOTE:
If accessories are fitted (electrical preheating,
electrical afterheating, water heating surface or
geothermal surface), the pin on terminals 5 and
6 must be removed on the ventilation system
plug. See also the instructions included with the
accessories.
Communication cable
Power cable
Connection board (located
on underside of wall units,
or in end of attic units)
Communication module
(also has possibility of USB
or Ethernet connection)
White/orange
Orange
Black
White/blue
Blue
Black
