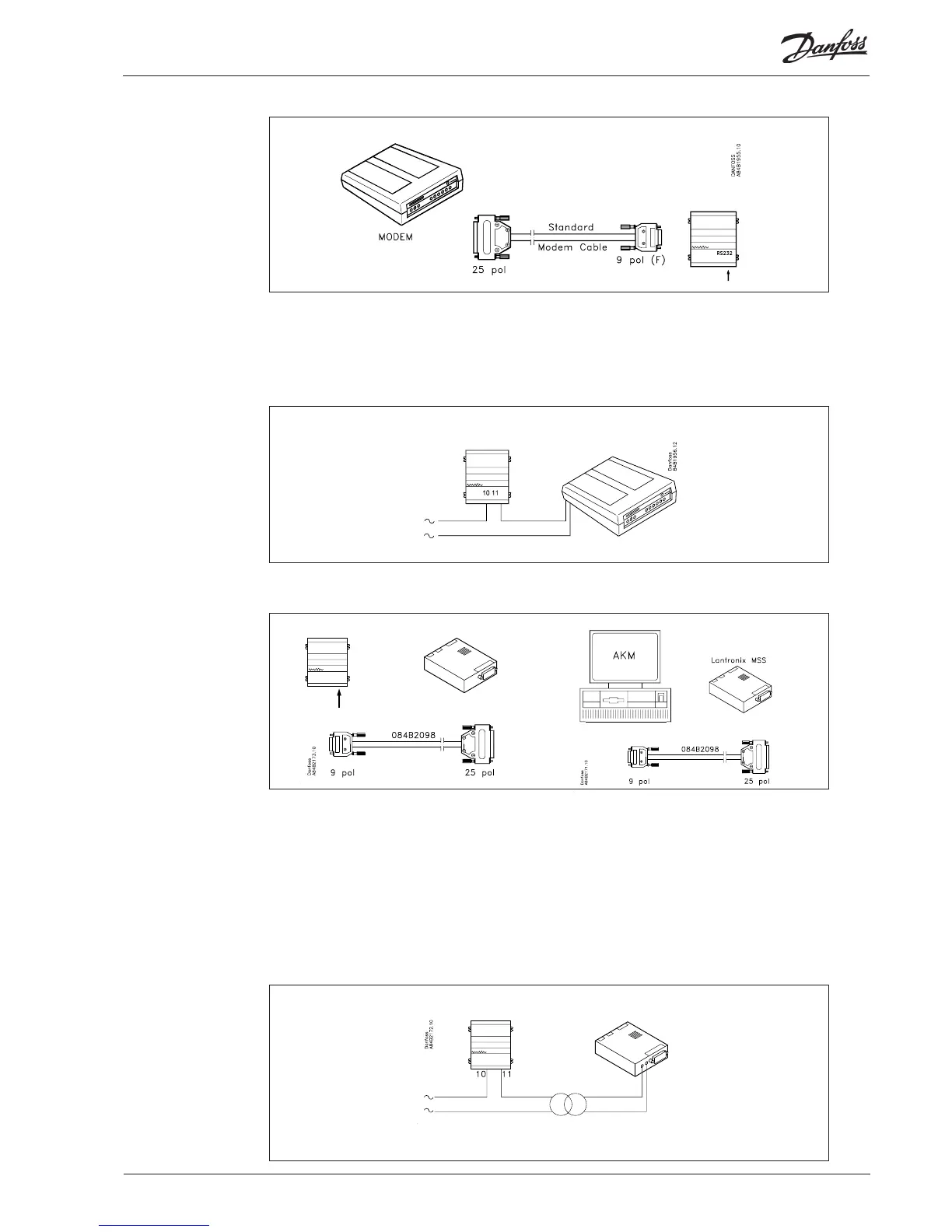

Modem to gateway
Use a standard modem cable.
Supply voltage to the modem must be connected, as illustrated (via DO1). This will permit AKA 245
to reset the modem. Also, the modem will be switched on and its start controlled, when AKA 245 is
switched on.
TCP/IP server to gateway and TCP/IP server to PC
So far two servers have been tested:
- ”Lantronix MSS 100” (shown above)
The server to be ordered from a Lantronix dealer.
A 3 m cable with plugs mounted to be ordered from Danfoss. See Ordering.
- ”Digi One SP” (Enclosure about half the size illustrated)
Server to be ordered from a Digi International dealer. Code number is 70001971.
Cable with plug is bypacked.
Supply voltage to the TCP/IP server must be connected, as illustrated (via DO1). This will permit
AKA 245 to reset the TCP/IP server. Also, the TCP/IP server will be switched on and its start controlled,
when AKA 245 is switched on.
AKA 245 Manual RS8DT102 © Danfoss 09/2004 11
