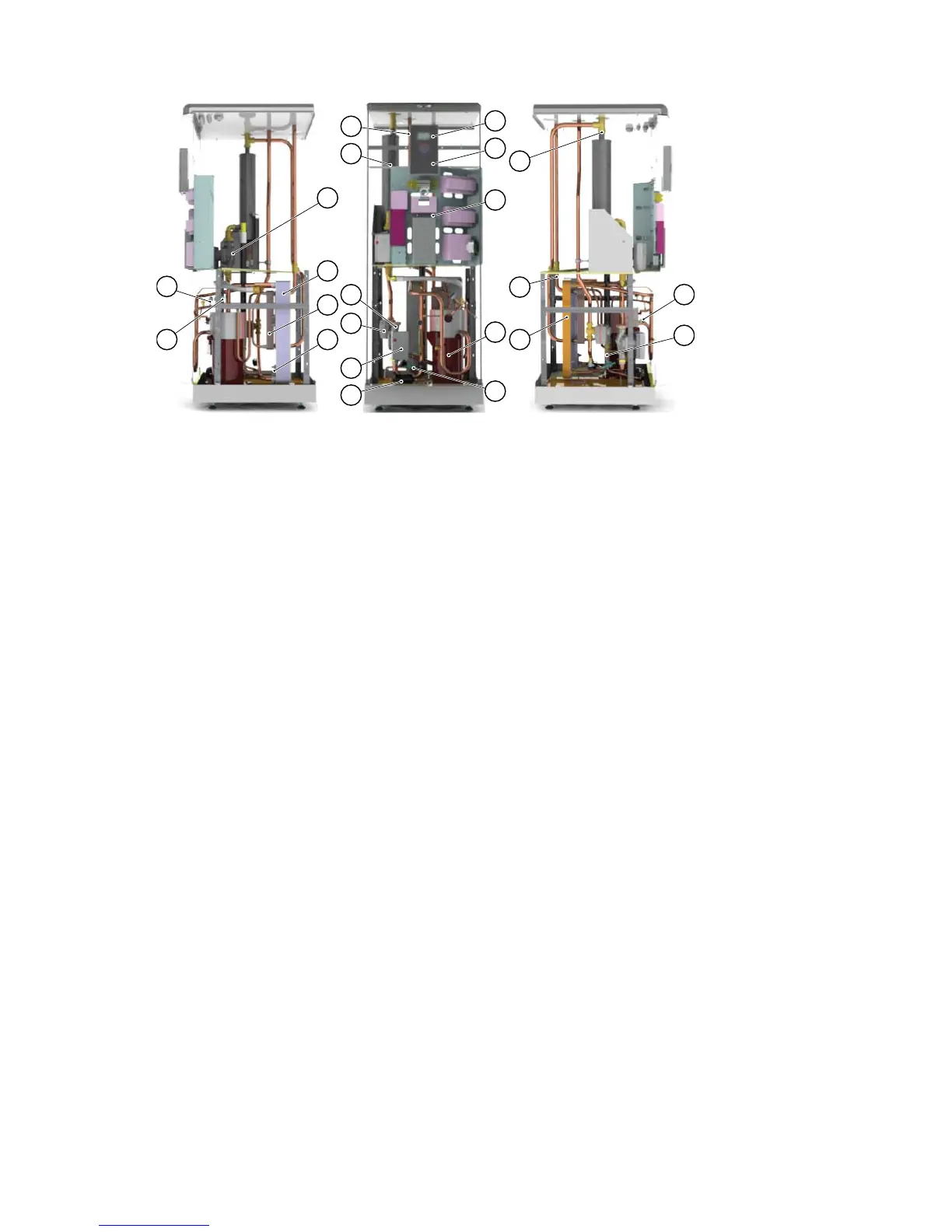

Figure 7. Components
Symbol explanation
1 Auxiliary heater, immersion heater on supply line 12 Expansion valve
2 Return pipe, heating system 13 Control panel for control equipment
3 Supply line water heater 14 Electrical panel
4 HGW shunt valve 15 Compressor
5 Evaporator, insulated 16 Low pressure switch
6 Supply pipe sensor, heating system 17 Operating pressure switch
7 Circulation pump, heating system 18 High pressure switch
8 Brine in 19 Condenser with primary side drain
9 Brine out 20 De-superheater
10 Drying filter 21 HGW sensor
11 Circulation pump, brine system 22 Return pipe sensor, heating system
