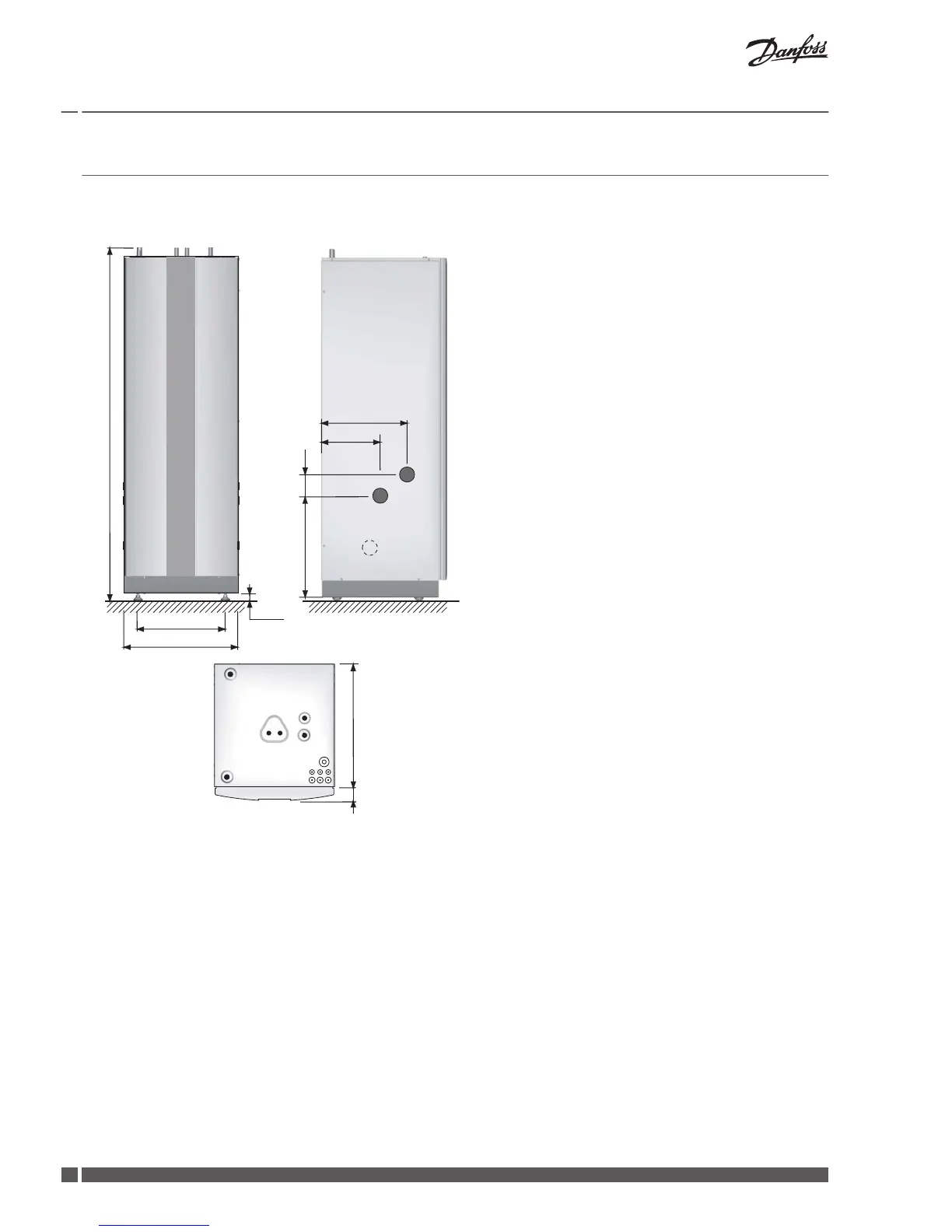

4 Heat pump data, dimensions and connections
DHP-H, DHP-H Opti, DHP-H Opti Pro, DHP-C, DHP-C Opti, DHP-C Opti W/W
110
1845 (±10)
455
596
528
300
440
40±10
1
2
610
80
4
7
8
6
5
9
3
1 Brine in, 28 Cu (DHP-C: Brine out)
2 Brine out, 28 Cu (DHP-C: Brine in)
3 Heating system supply pipe, 22 Cu: 4-10 kW, 28 Cu:
12-16 kW
4 Heating system return pipe, 22 Cu: 4-10 kW, 28 Cu:
12-16 kW
5 Connection for bleed valve, 22 Cu
6 Hot water line, 22 mm
7 Cold water line, 22 mm
8 Lead-in for supply, sensor and communication cables
9 Safety valve for temperature and pressure (only applies
to certain models)
The brine pipes can be connected on either the left or right-
hand side of the heat pump.
