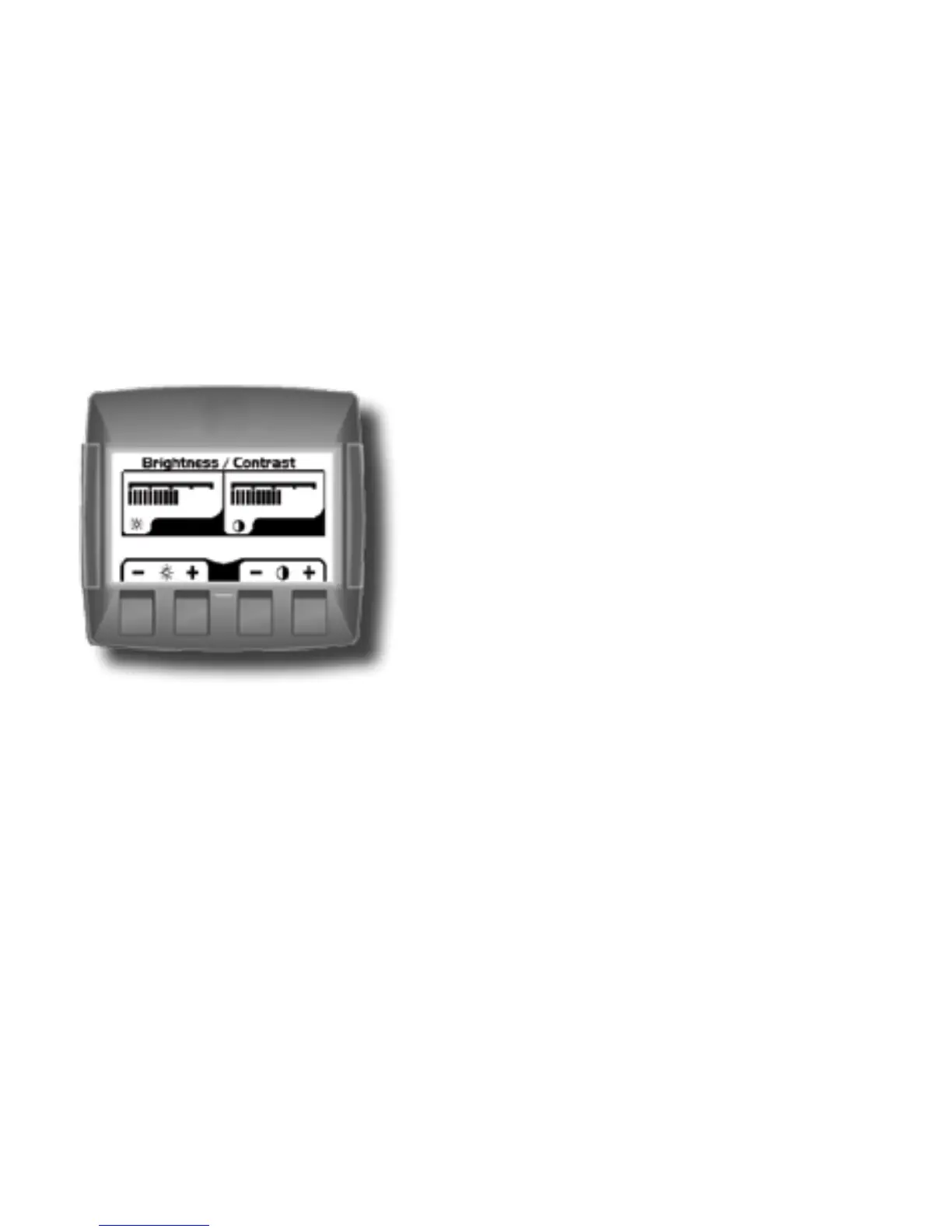

Brightness/Contrast Adjustment
Adjust brightness and contrast levels by
pressing soft key 2. This will display the
brightness and contrast soft key bar.
The bar will disappear after 3 seconds of
inactivity.
Navigation Using Soft Keys
The DP2xx Series Graphical Terminal is controlled by navigation through a set
of four soft keys located at the lower front of the display. The keys are context
dependent. Soft key selection options are displayed above each key and are
dependent on the current navigation location within the engine monitor
software program. As a general rule, the far right soft key is the selector
button and the far left soft key is the step back one screen key. To optimize full
screen use, the on-screen selections are not displayed when not in use. Press
any soft key to display current selection options. The selection options will be
displayed for three seconds.
