The wallplate must be securely mounted either directly to
the wall using suitable wood screws or to a fl ush mounted
1-gang electrical accessory box using M3.5 screws.
Cable access can either be from behind for concealed
cabling, or from below for surface cabling. If surface cable
is used, cut out cable access slot on plug-on module prior
to mounting.

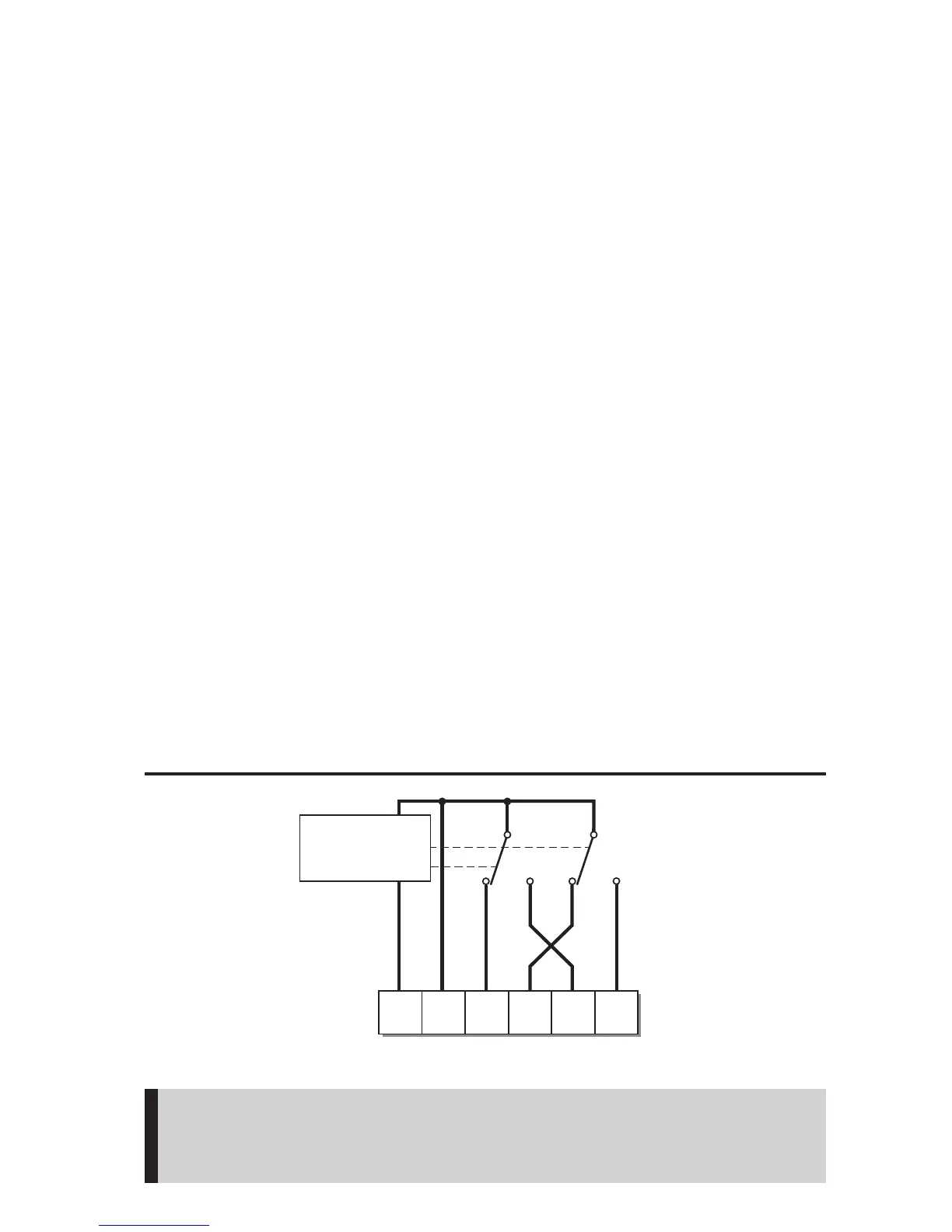

For wiring connections refer to diagram below.
FP715 Si models are double insulated and do not require an
earth connection, however a parking terminal is provided
on the wallplate. This is clearly marked with an Earth
symbol.
Prior to mounting the plug-on module, DIL switches on the
rear of the plug-on module must be set. See diagram on
page 5 for available options.
Mount plug-on module to wallplate by locating tabs on top
of wallplate in apertures on rear of module, hinge down
and press fi rmly to wallplate before tightening securing
screws on bottom of wallplate.
Installation and Wiring
Wiring (For Wiring Conversion tables see - pages 8-15)
Always switch off mains fi rst and never fi t programmer
to a live wallplate.
Please Note:
On 24 volt models
power supply must
be wired to A & B
on wallplate.
