Page 93 of 108
M-AP-001-EN Rev. N
Installation
Care must be exercised at all times when rigging or handling the compressor to protect
it from damage. Two eyebolts (one at each end) are provided for compressor rigging. A
spreader bar should be used to safely position the compressor into its nal location (see
Figure 20-1).
1. If mounting the compressor with the DTC mounting kit, refer to Appendix B Mounting
Kit Instructions; if not, install four isolation pads in accordance with the footprint
dimensions given in Figure 20-2.
2. Mount the compressor onto the isolation pads. Ensure the compressor mounting rails
are properly isolated from the base frame once the attaching hardware is secured; for
example, the screw should not extend from the compressor mounting rails to the base
frame (see Figure 20-3 and Figure 20-4).
3. Check that the compressor mounting rails are level ± 5mm (3/16") in the lateral and
longitudinal planes.
The compressor should be carefully inspected for visible signs of damage. Check for loose
bolts and damage to covers or outer casing. Damage should rst be reported to the carrier,
not DTC. DTC Customer Support and Service can be contacted to assist in determining the
extent of damage or if compressor should be returned to DTC. Damage should be specied
on the Bill of Lading or transportation/freight forwarder documentation. Open all containers
and verify all parts against the packing list. Report any shortages to DTC. Contact DTC to
conduct report actions via the Incident Report form.
20.2 Rigging
Requirements
20.3 Unit Placement
20.1 Unpacking and
Inspection

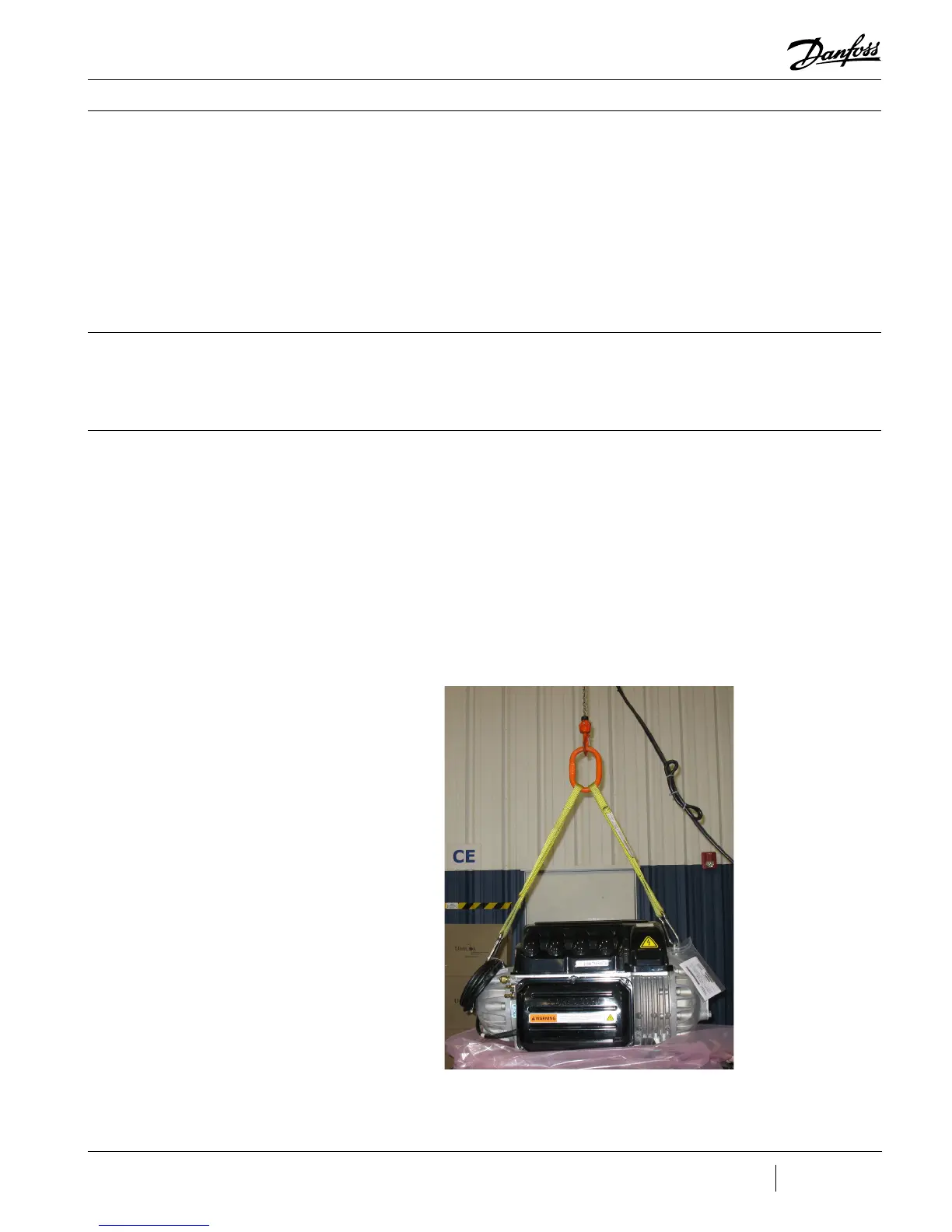

Figure 20-1 - Rigging Set-up
20 Installation
THIS PAGE INTENTIONALLY LEFT BLANK
