Danfoss VLT 5000 Series Installation Startup Check List

11
Installation Checks
• Fuses must be installed
– Sized using Pages 34-35 in Instruction Manual
To comply with UL / cUL, fuses must be wired on the incoming power side of the drive. The

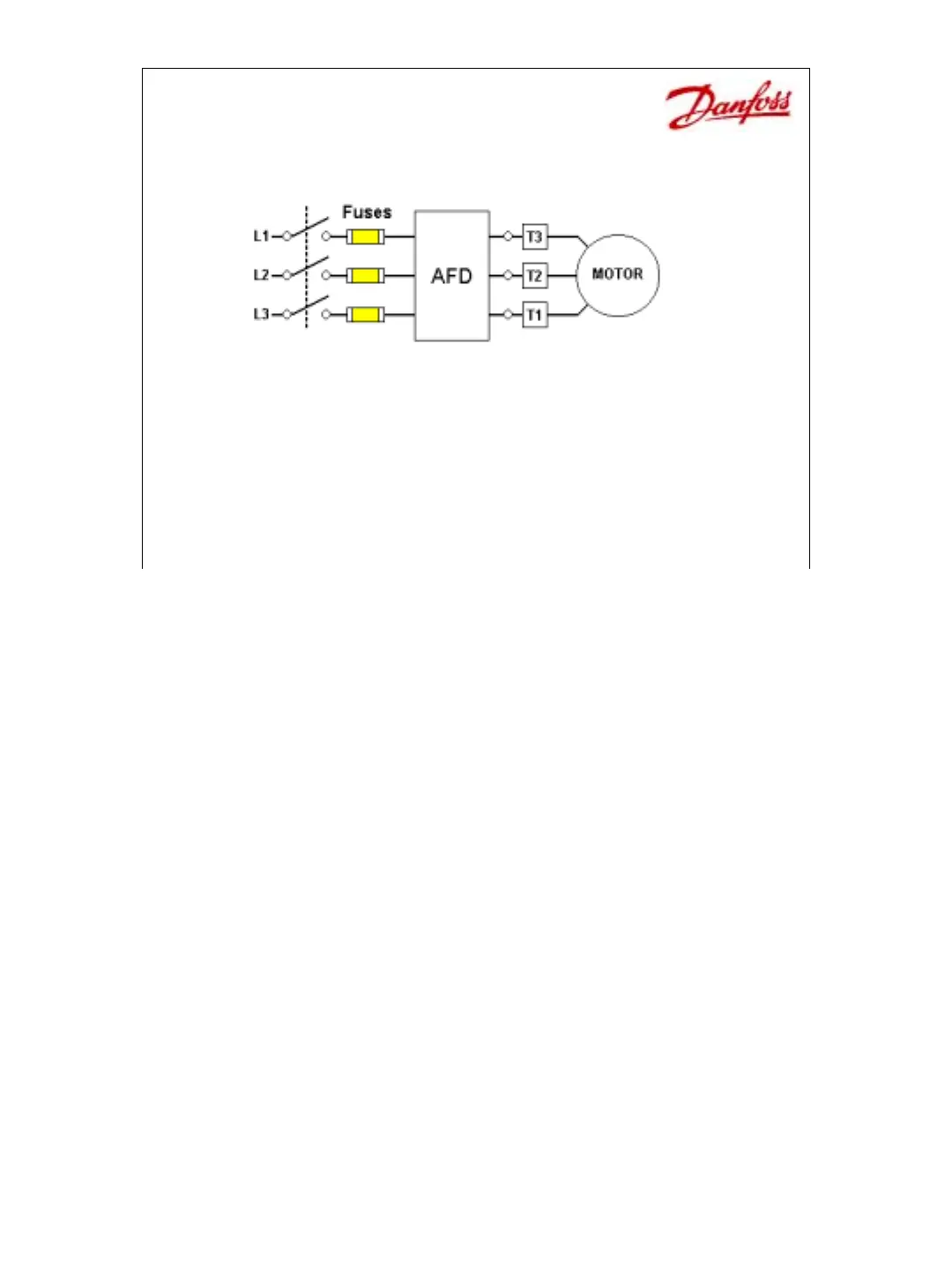

types of fuses are shown in the technical data section of the instruction manual. In the
example above fuses and a disconnect switch are diagramed. To comply with UL never wire
the drive to circuit breakers because they do not trip as fast as fuses.

Danfoss VLT 5000 Series Specifications

General

Frequency	50/60 Hz
Cooling Method	Forced Air Cooling
Enclosure	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication Interfaces	RS-485, Profibus
Enclosure Rating	IP20
