Danfoss VLT 5005 Installation Startup Check List

23
Wiring
• Control Wiring
– Digital Inputs
– Analog Inputs
– Analog Output
– Digital/Relay Outputs

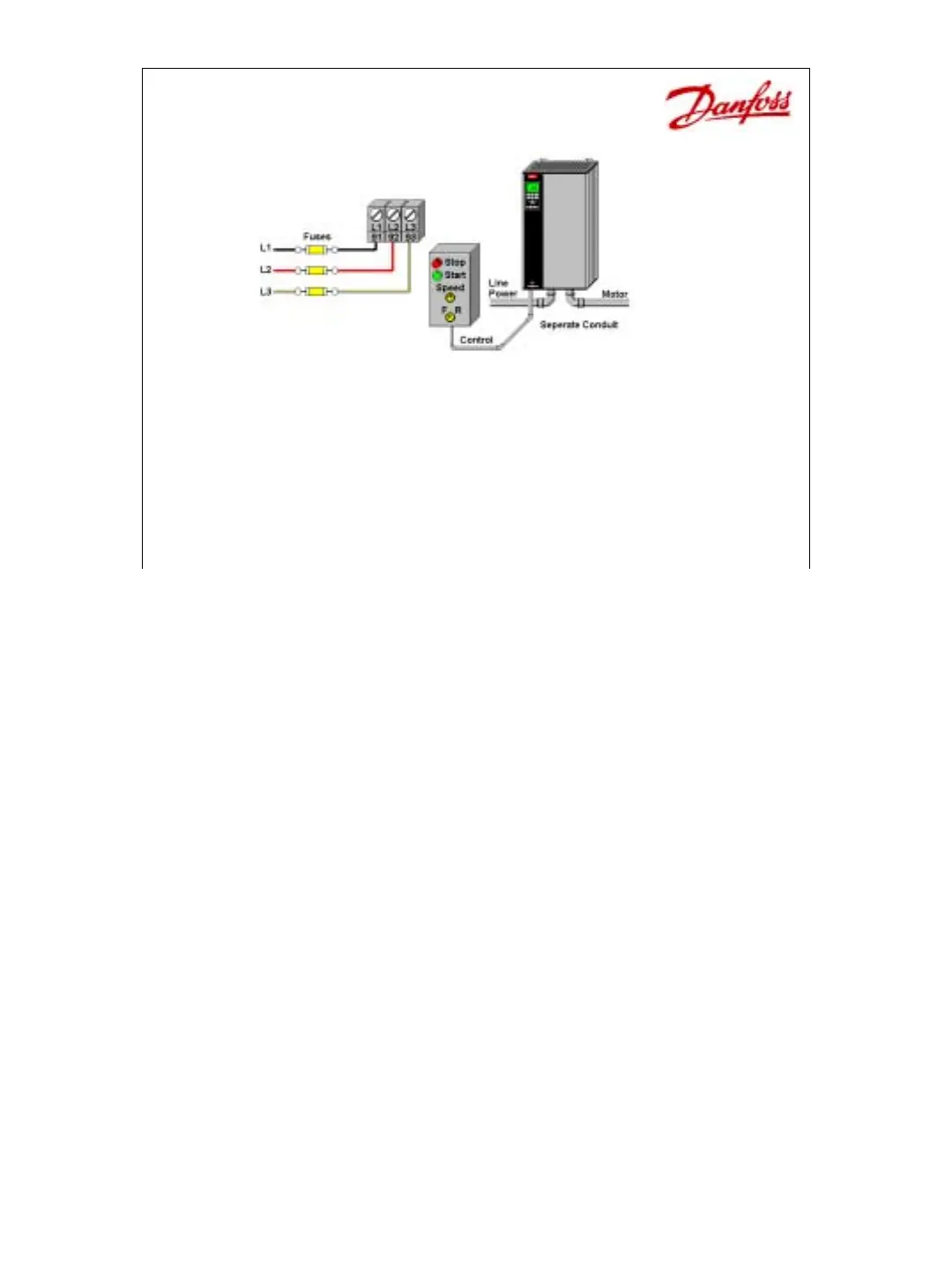

This next section covers control wiring.
It covers Digital Input Wiring first, followed by Analog Inputs. Analog Outputs are covered
followed by Digital Outputs then Relay Outputs. It is always best to have control wiring in a
separate conduit away from power wiring.
