General description, continued

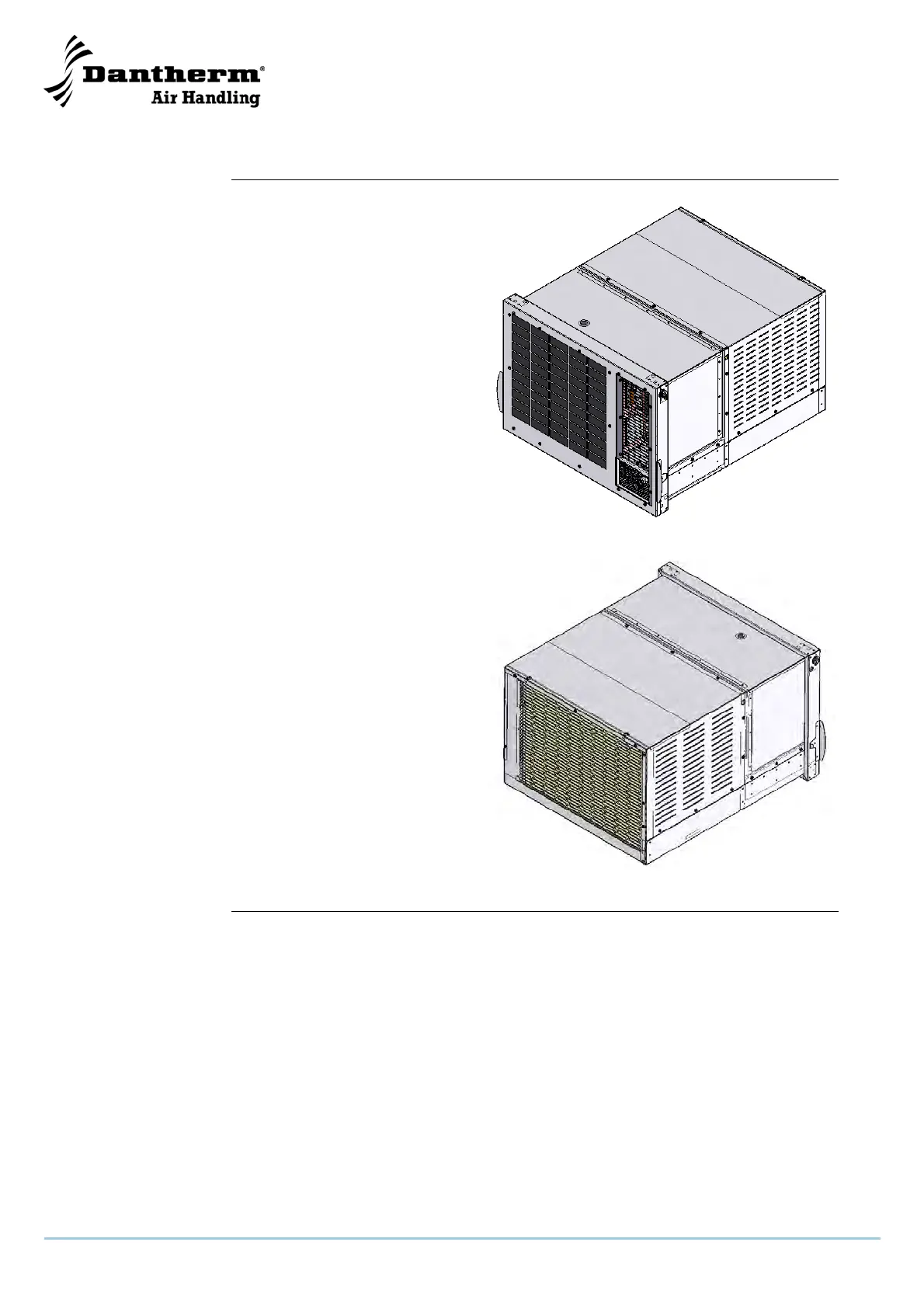

Cabinet
Front (evaporator side)
The unit is a strong construction
made in 0.9 mm sheet metal plates,
which are galvanised and protected
against corrosion.
Outside finish painting is standard
NATO green, RAL6014 with infrared
anti-reflecting qualities.
The condensate drain is located un-
der the unit. It is snapped in place
by a snaplock in the long slot at the
bottom of the unit. The drain can be
pried out using a screwdriver if
needed during service or if a hose
extension is desired.
At the front of the unit there is a re-
movable air filter for the re-
circulated air intake on the left hand
side and a discharge grill for the
cooled outlet air at the right hand
side.
The operation panel for the unit is
placed under the discharge grill for
the cooled air.
The discharge grill can be removed
for inspection and service purposes.
