3

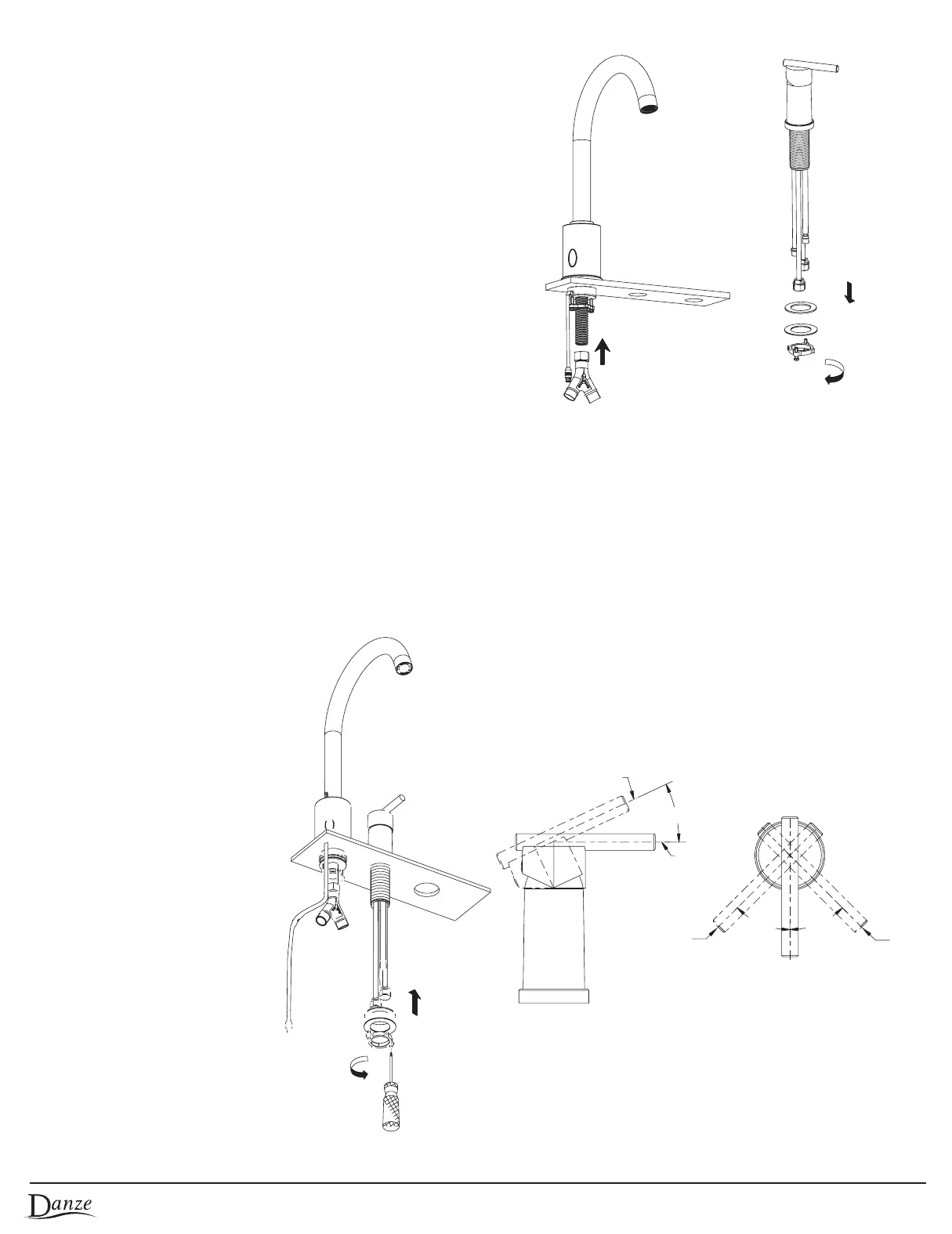

Install the "Y" adapter to the end of spout body shank.
2.
2. 3.1
3.2
INSTALL MANUAL VALVE ASSEMBLY:
3.1. Remove the hardware assembly from the base of the valve body.
3.2. Insert the valve body through the mounting hole. Secure the valve to the
countertop using the mounting hardware. Before tightening the handle
body, BE SURE that the lever handle is correctly centered left to right
between the hot and cold positions. A red/blue (hot/cold) self-adhesive
decal is included in your parts package; you can place it below the lever
on the handle if you choose.
3.
Hot
Cold
Close
Open
25˚
45˚
45˚
© 2006 Danze, Inc. All rights reserved.
