DAPAudio CX-500 - Speakon Output Connection Mode; Stereo Connection

7
CX Series
CX-500/900/1500/2100/3000
Output connection
Connect the amplifier to the speakers, using professional speaker cables with twist
locking plugs.
Mode switch
This switch is used to select the operating mode of the power amplifier.
Stereo: 2 inputs (channel 1 and 2) and 2 outputs are used.
Parallel: 1 input (channel 1) and 2 outputs are used.
Bridge: 1 input (channel 1) and 1 output are used.
Sensitivity mode
This selector allows you to select the input sensitivity: 0.775V or 1.4V.

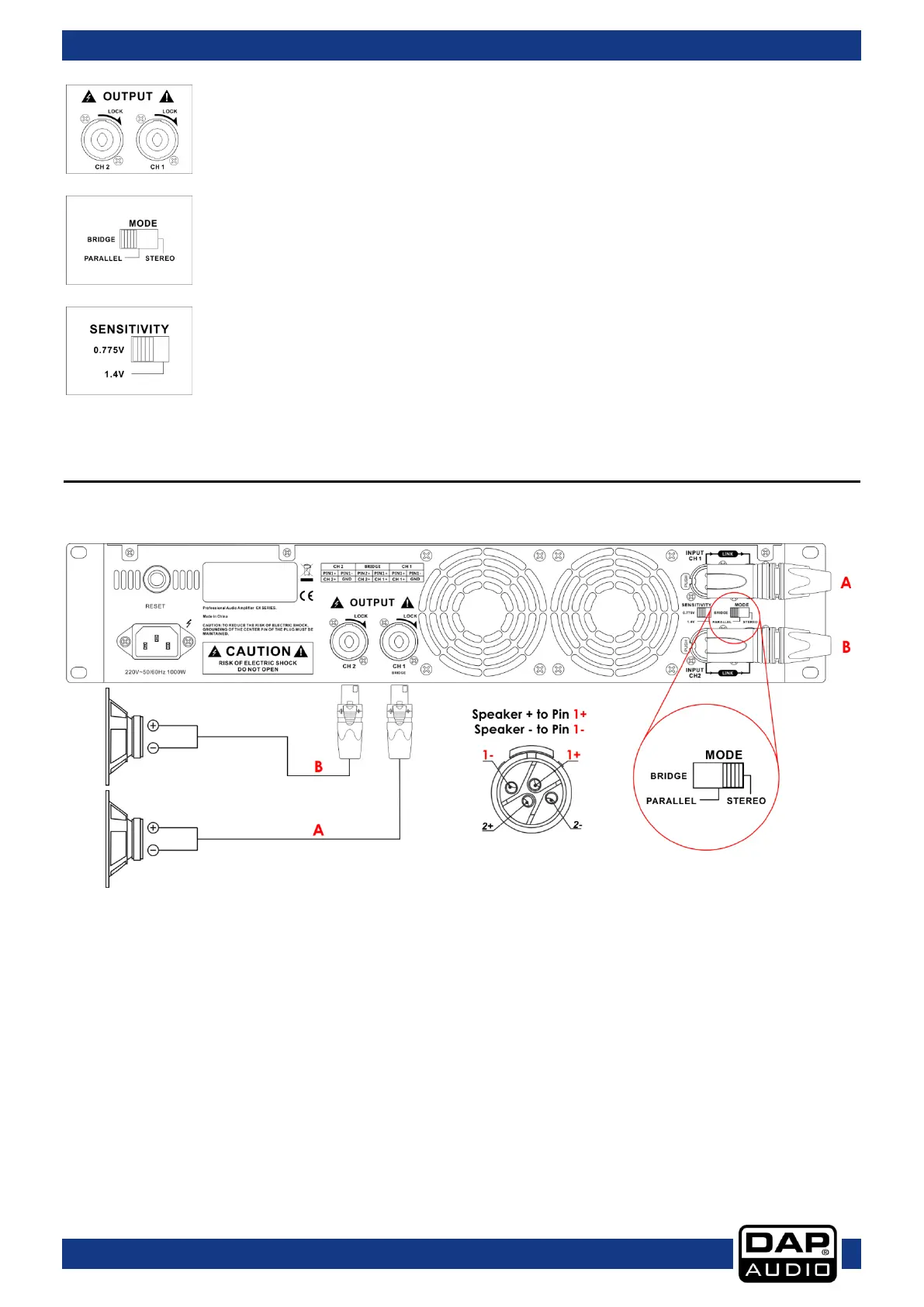

Speakon output connection mode
Stereo connection
